HBS300PN

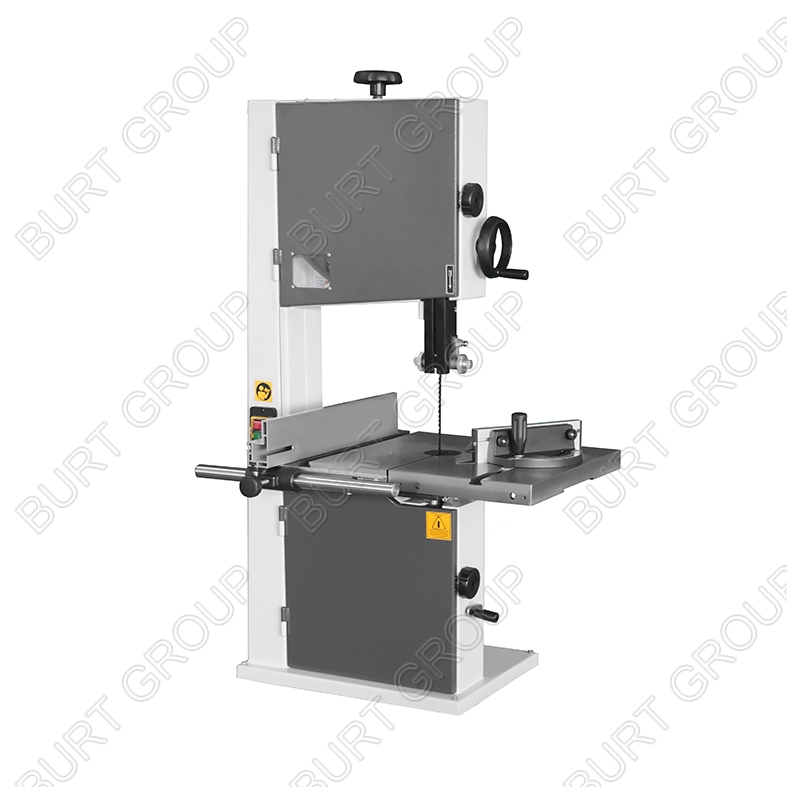

HBS300PN NEW DELUX 12" WOODWORING BANDSAW
Main Features

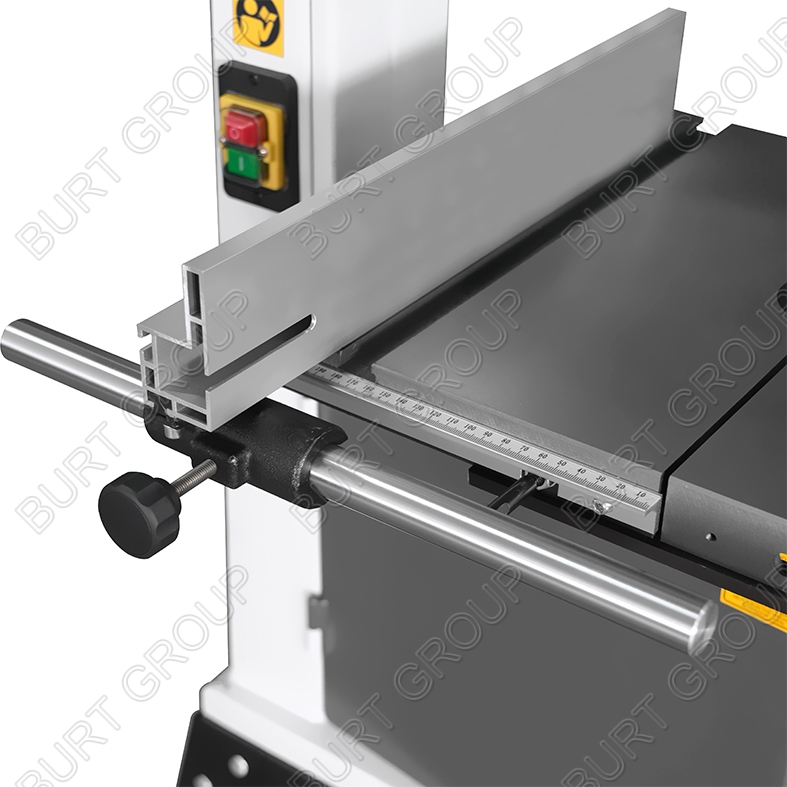

* Industrial style fence features a heavy extrusion mounted on a cast iron base, which moves along a solid steelbar.

* Large cast iron table provides a strong and steady work area to support large workpiece.

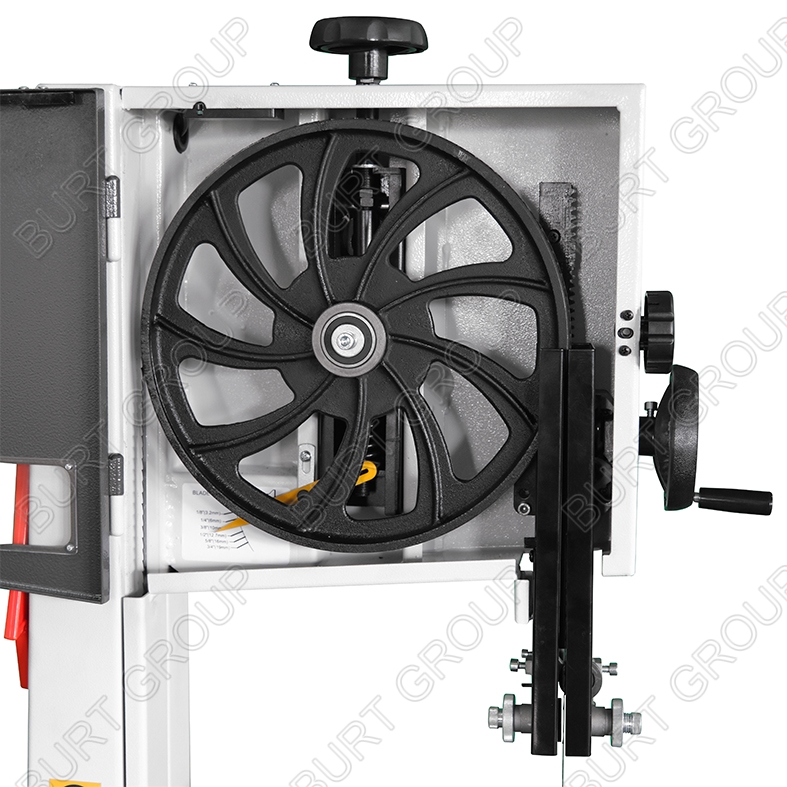

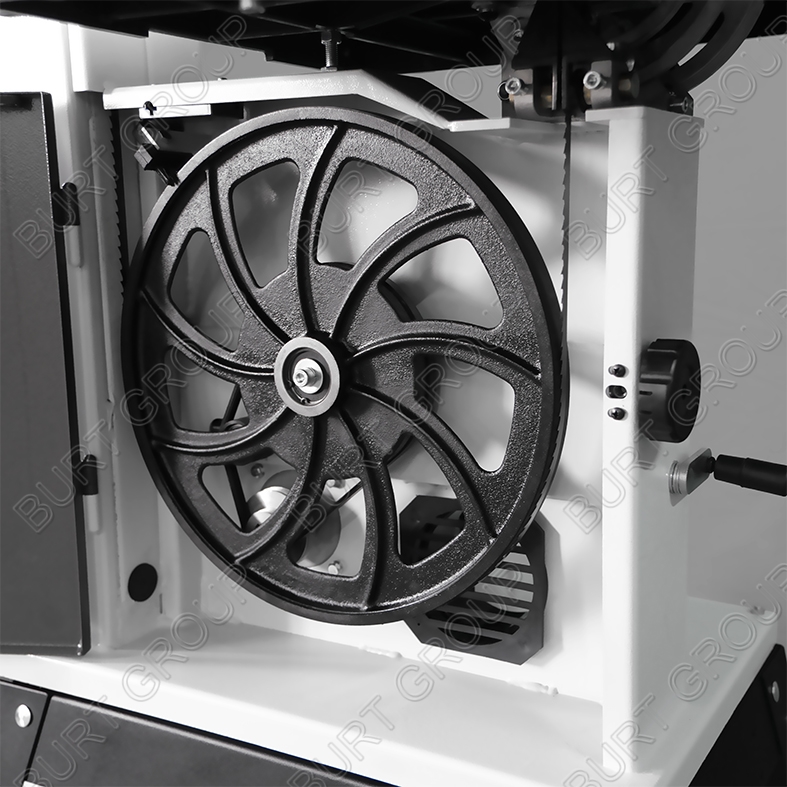

* Cast iron bandwheels are dynamically balanced and provide a flywheel effect for improved cutting performance.

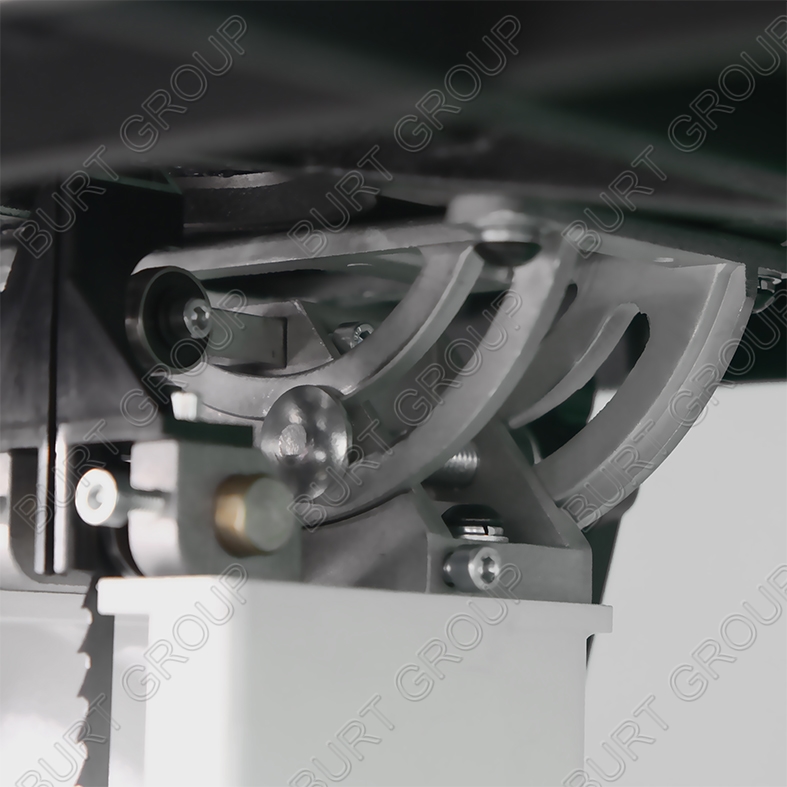

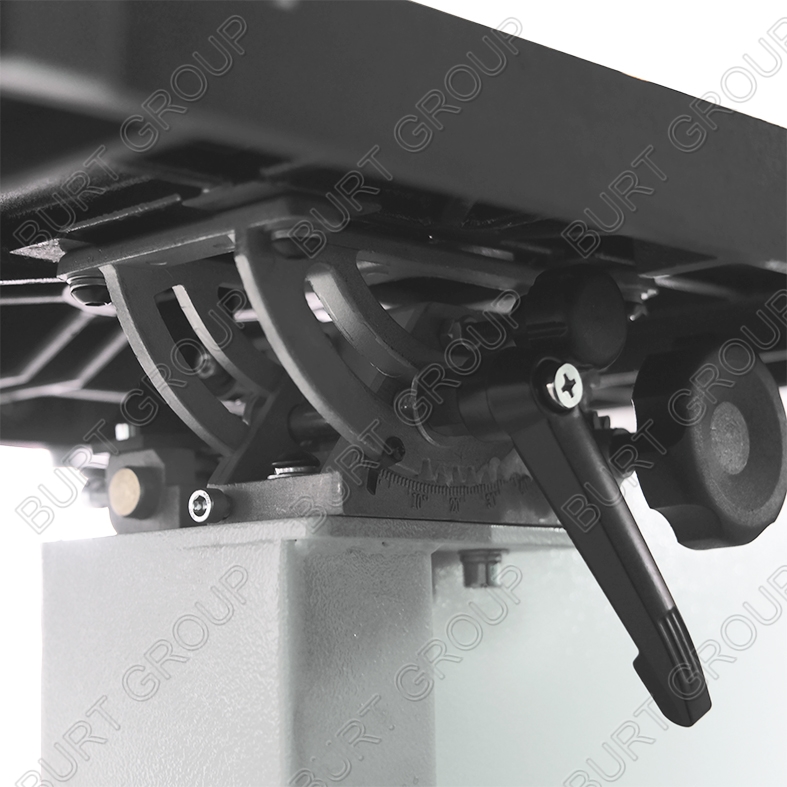

* Solid double trunnion table mount for rigid table support featuring one handed rack pinion table tilt for ease of use and accuracy.


Description Video Documents

HBS300PN is a great of all rounder perfectly specified for the medium sized workshop where a range of duties will be required. Featuring a solid fence, vital for accurate ripping, which has a heavy extrusion mounted on a cast iron base and fixed to a solid steel bar for maximum rigidity and support. The machine also features a solid double trunnion fence mount to provide rigid table support and one-handed table tilt on a smooth rack and pinion. The cast iron bandwheels are fitted with precision ground rubber tyres to provide a flywheel effect for smooth cutting.


Specification:

01) Motor power(output): 1HP

02) Blade length: 2370mm

03) Blade width: 6-19mm

04) Blade speed 380m/min 820m/min

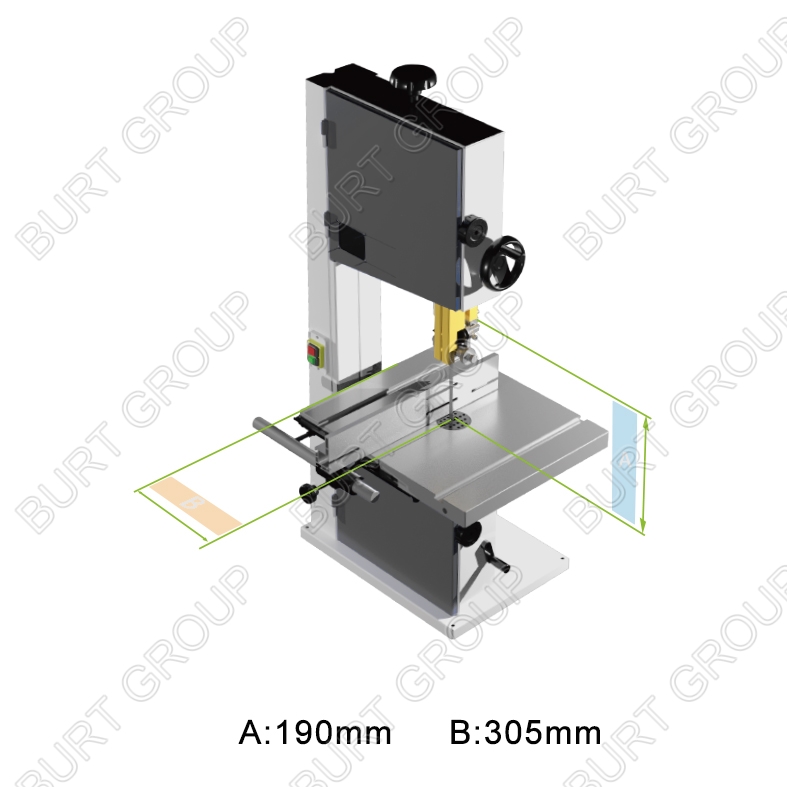

05) Max depth of cut: 190mm

06) Max width of cut: 305mm

07) Table size: 480x400mm

08) Table tilt: 0-45°

09) Bandsaw wheel Dia.:312mm

10) Dust port: 100mm

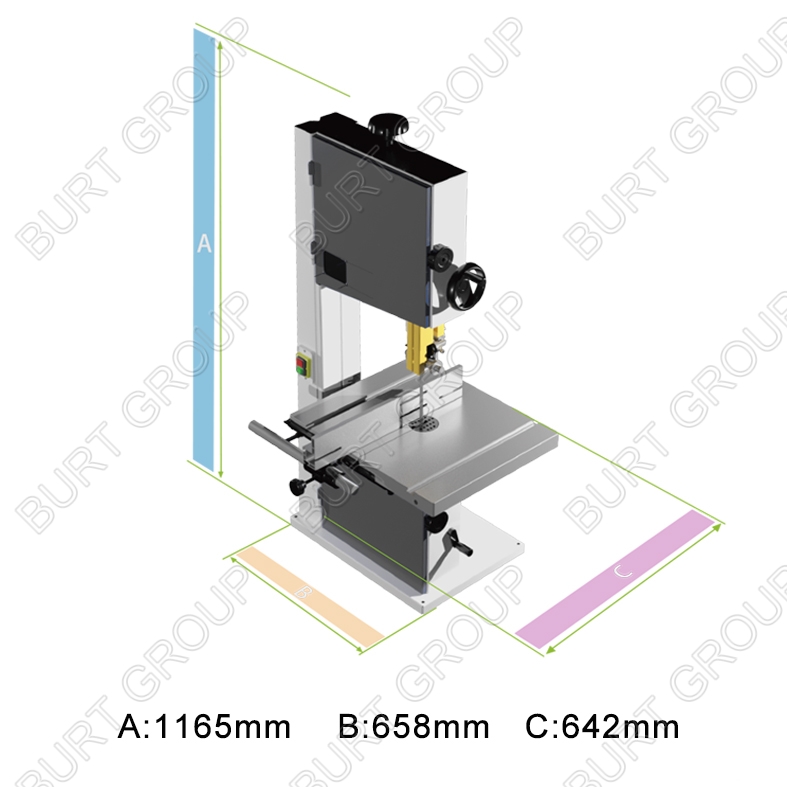

11) Package size: 1125x380x540mm

12) Net/Gross Weight: 89/93kgs

13) Container load Qty: 108pcs/20’

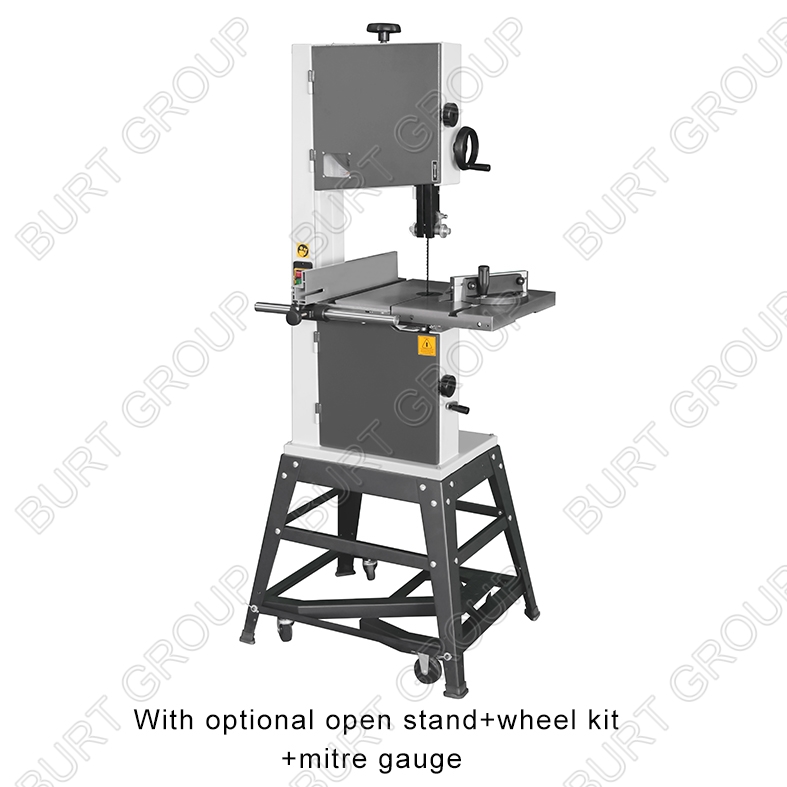

Optional fitting:

* Pusher

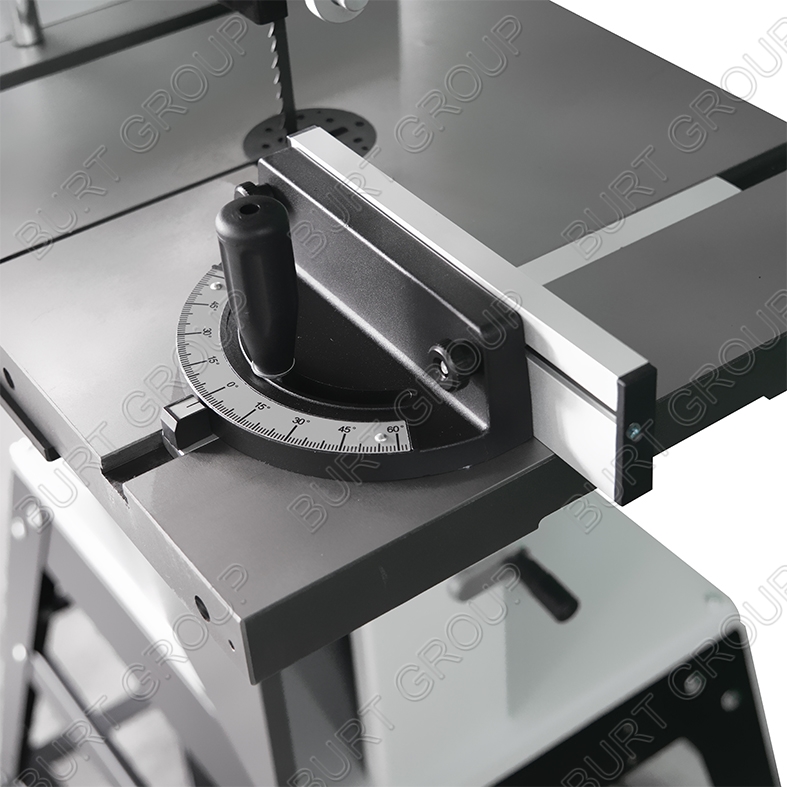

* Mitre gauge

* Open stand

* Wheel kit assembly
