* Magnetic control box can be positioned where required

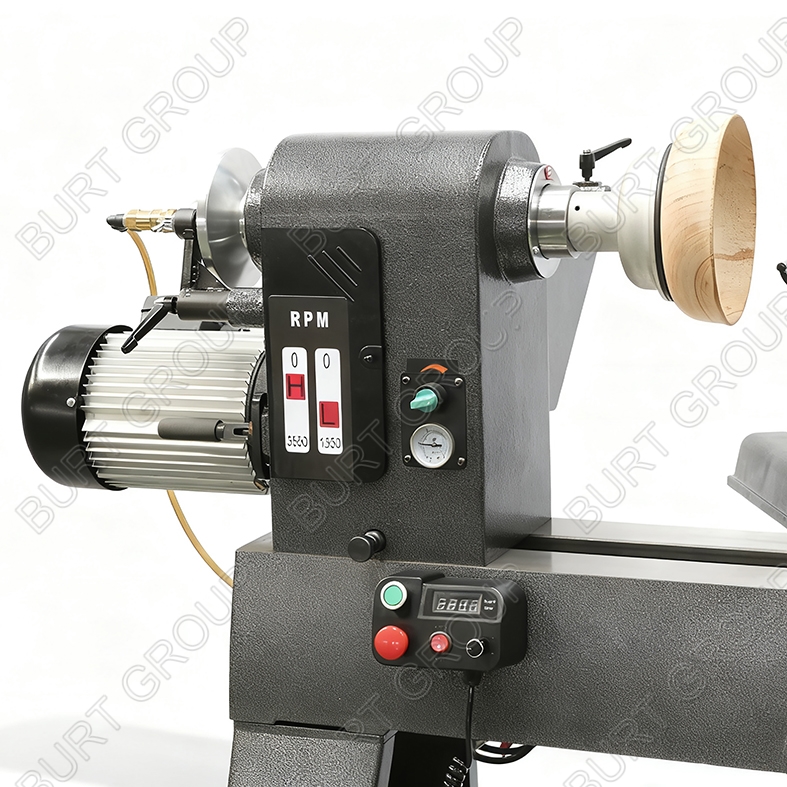

* Electronic Inverter Variable Speed Lathe with TAIWAN DELTA brand Inverter

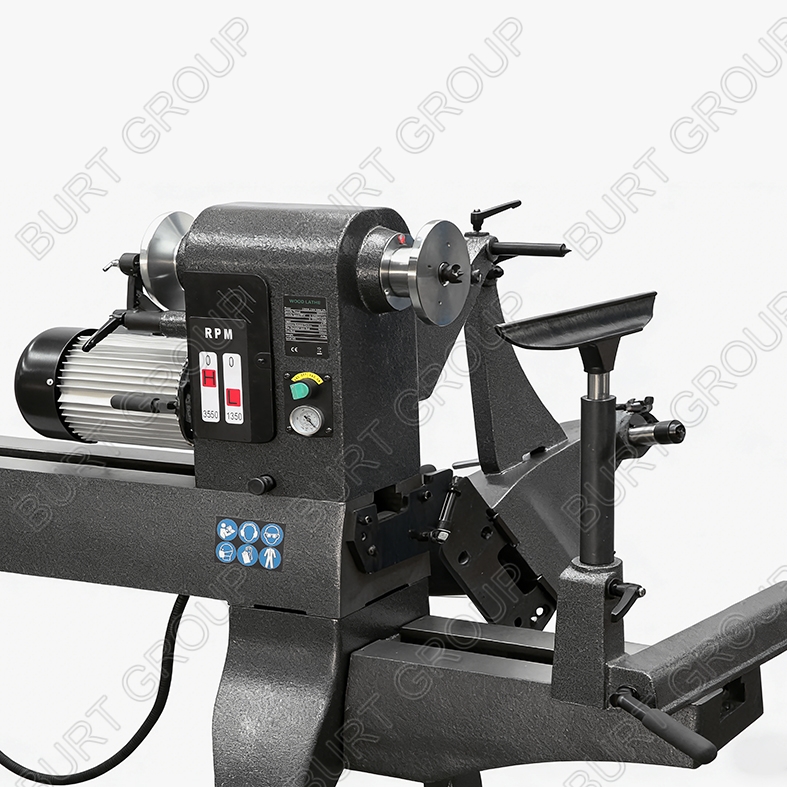

* Two belt ratios for high torque when turning large diameters
* All cast iron constuction for high stability and vibration free running
* Cast iron stand with provision for a shelf

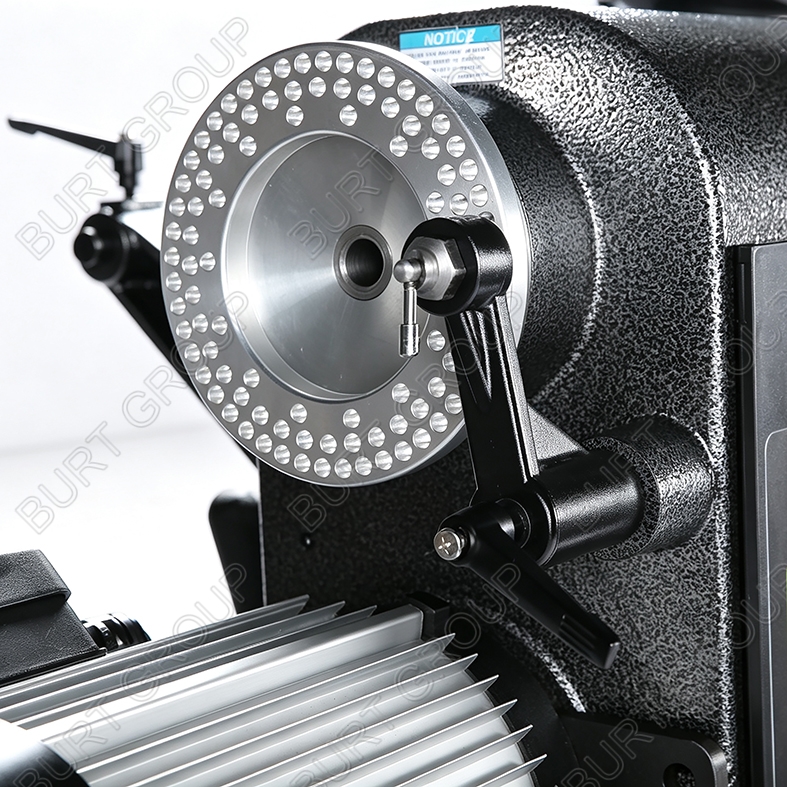

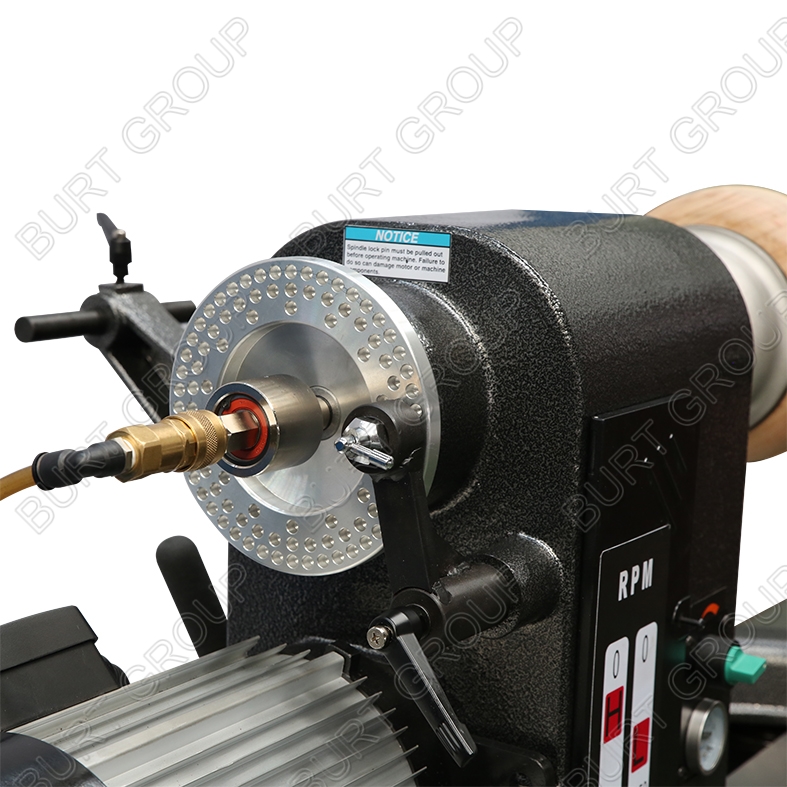

* 3-Layer 14/36/48 indexing Positions Function
* With Forward/Reverse running function

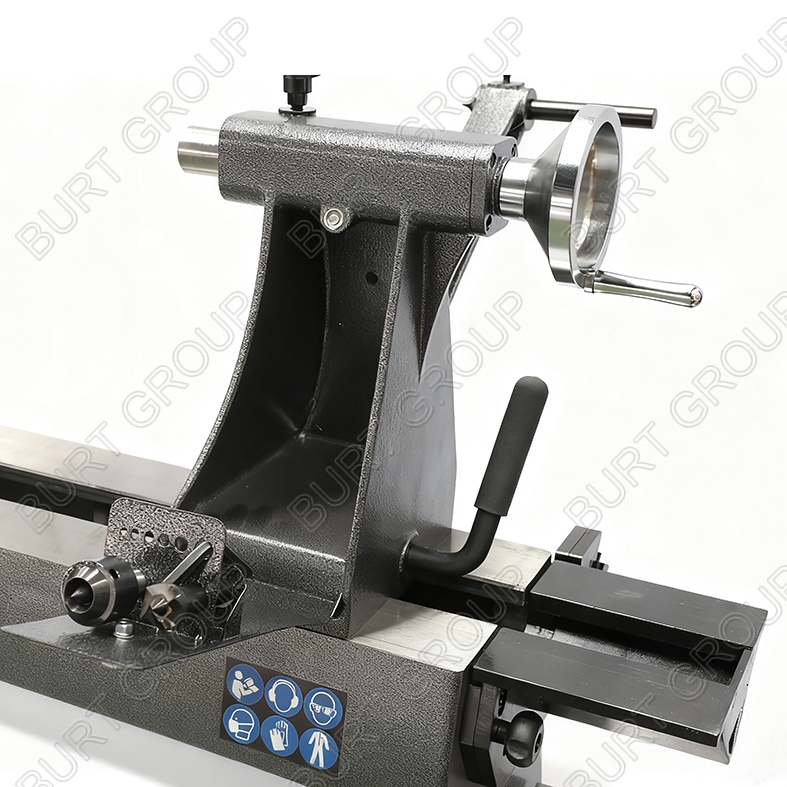

* Swing Tailstock for certain working conditions, such as hollowing or fitting extension bed on cast iron legs.
* Tailstock with storing space
* New designed effortless knockout rod with cooper rod head.
* 2 output sockets to provide power for other equipments

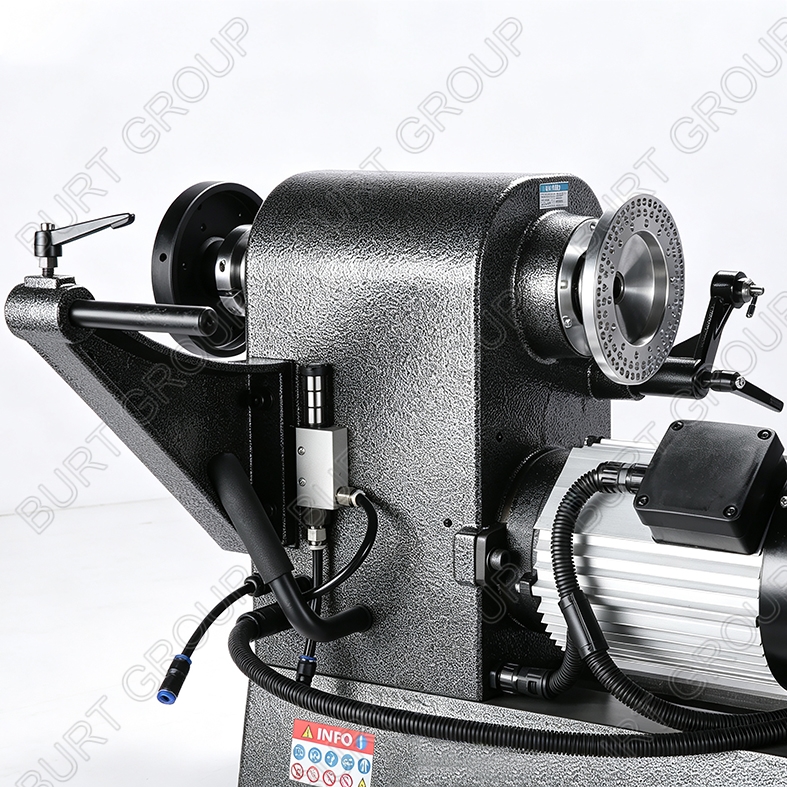

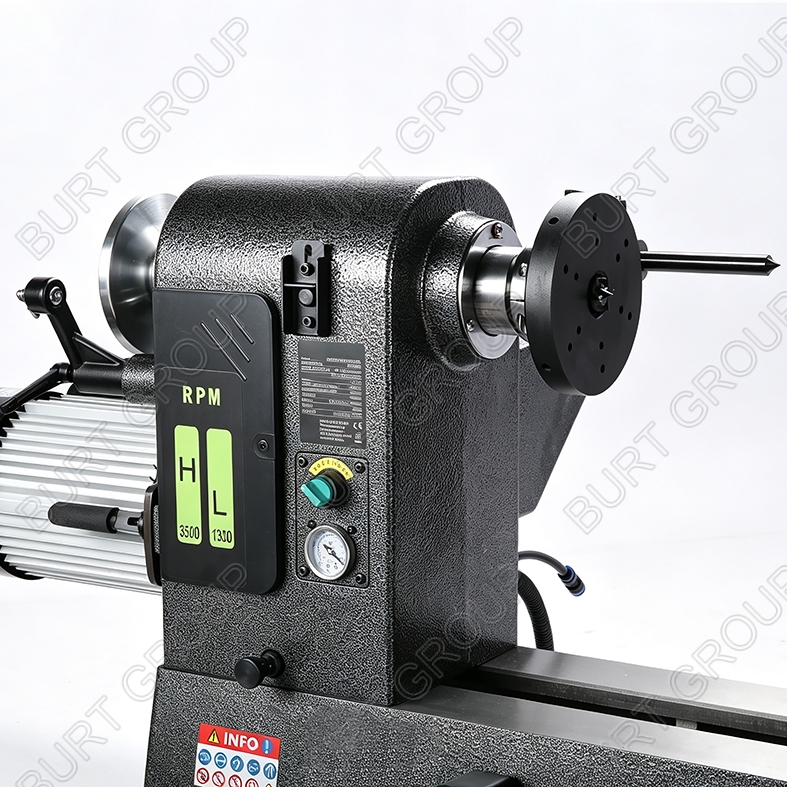

* Air passages pre-installed for vacuum chucks and air compressors.
* Comparator brackets for mounting the comparator, chuck guard, and dust hood.
* Optional extension bed + tool rest extender
01) Motor power (Input):2200W
02) Spindle speed (L):0-1350 rpm
03) Spindle speed (H):0-3550 rpm
04) Spindle thread: M33x3.5 or other
05) Spindle and tailstock taper: MT2
06) Indexing Positions: 14/36/48 positions

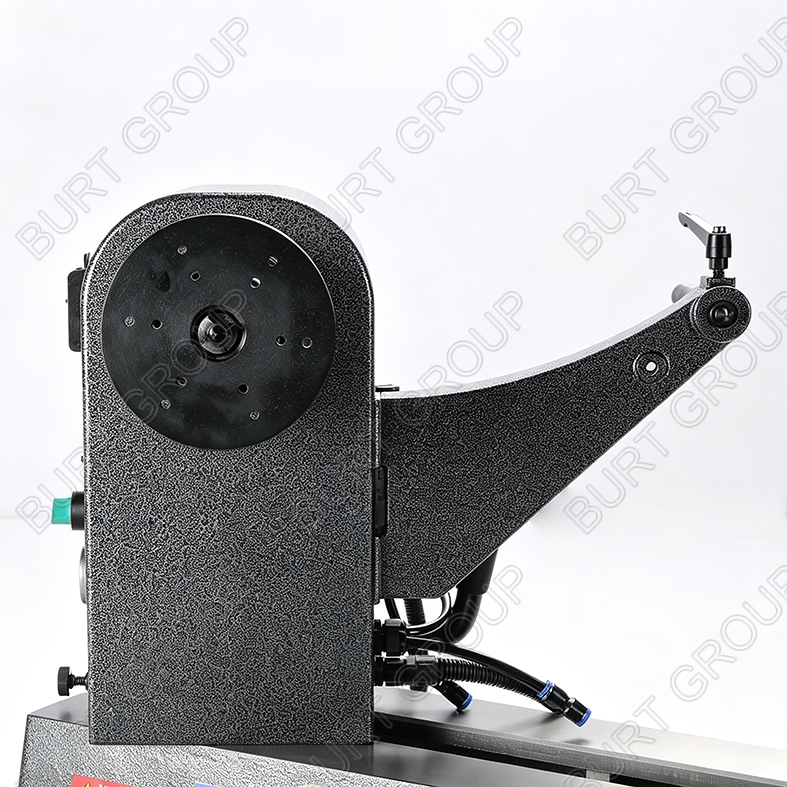

07) Headstcock turning angle: 0°60°90°120°180°
08) RAM Travel: 4.5"(114mm)
09) Distance between centers: 32"(49" with extention bed)
10) Face plate diameter: 6"(145mm)

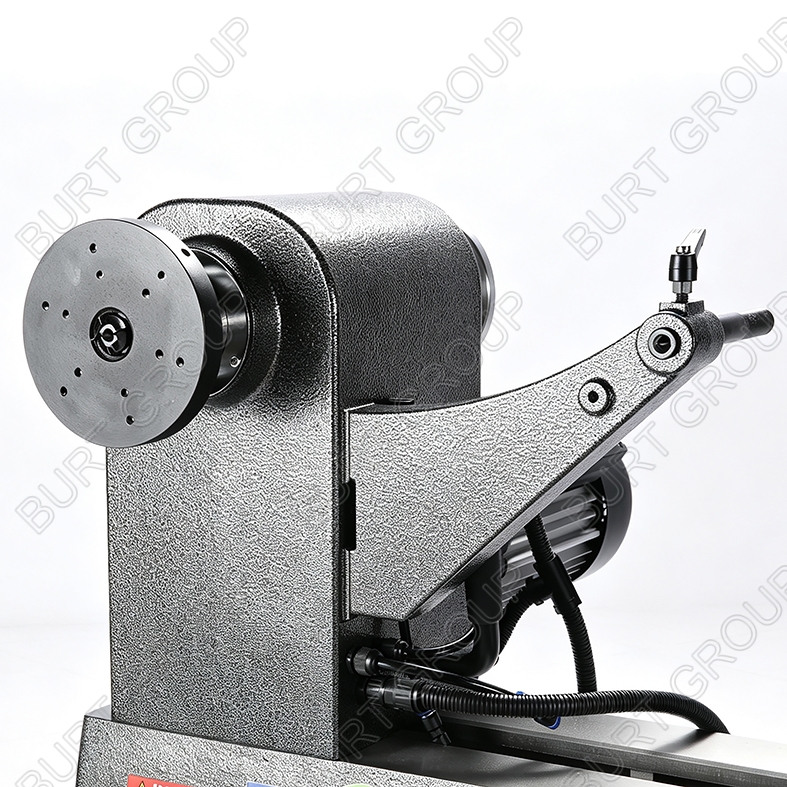

11) Swing over bed: 24.5"(41.5" outboard)
12) Swing over tool rest: 20"(502mm)
13) Tool rest working width:14" (356)

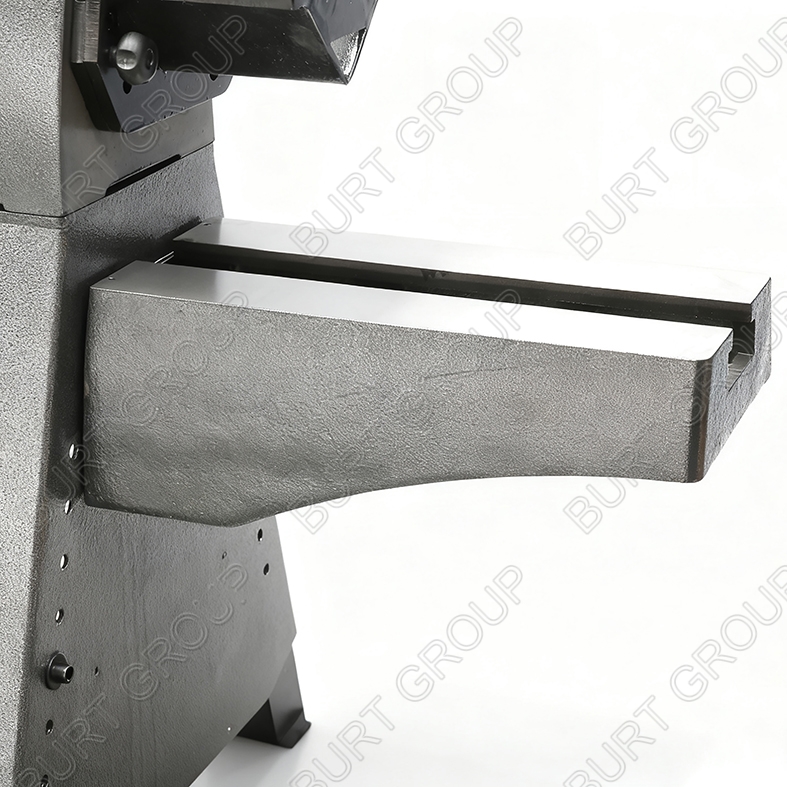

14) Extension Bed: 18"(457)(optional)
15) Overall size:1793x893x1221mm
16) Packing dimension:1450x780x680mm
17) N/G Weight:249/256KG
