HBS400PN

HBS400PN NEW DELUX 16" WOODWORING BANDSAW
Main Features

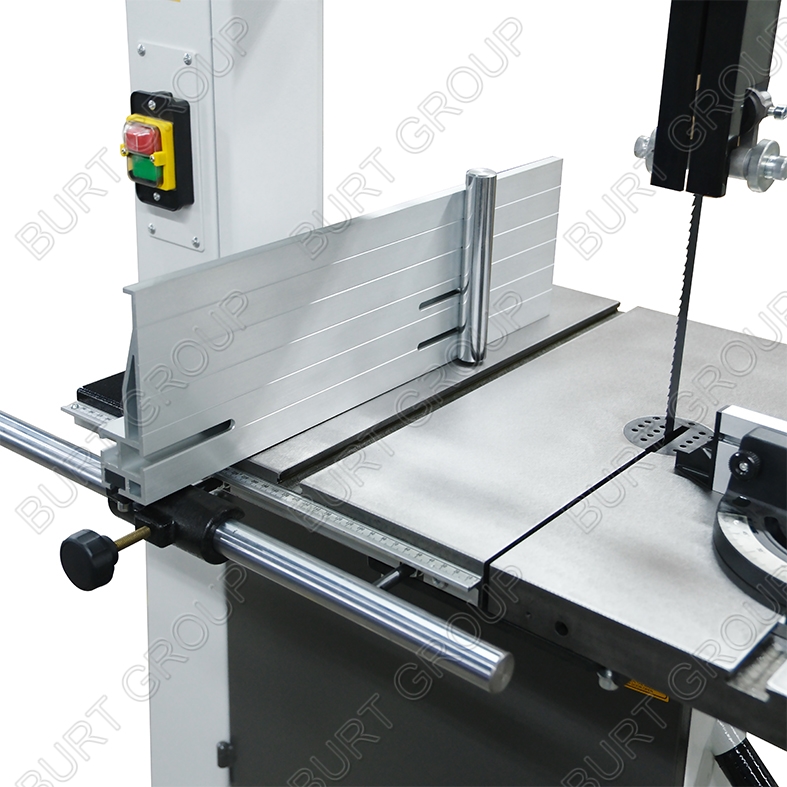

* Industrial style fence features a heavy extrusion mounted on a cast iron base, which moves along a solid steel bar.

* Large cast iron table provides a strong and steady work area to support large workpiece.

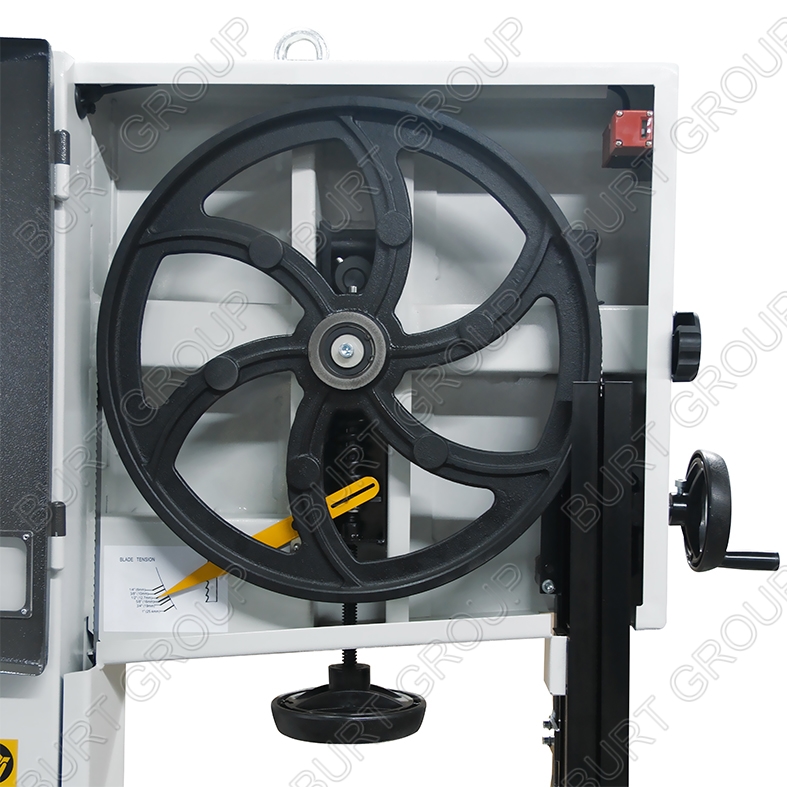

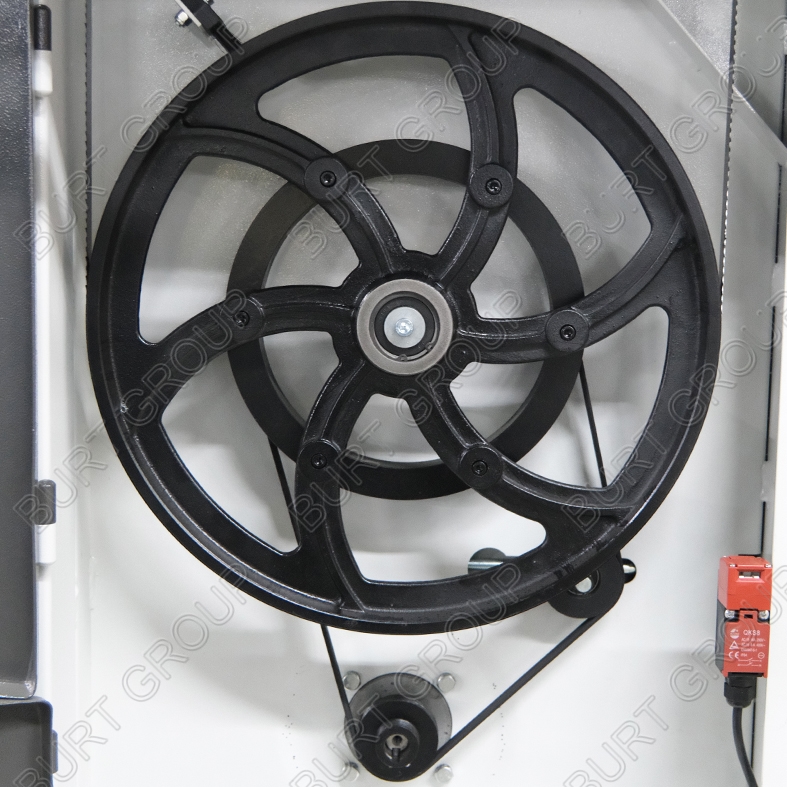

* Cast iron bandwheels are dynamically balanced and provide a flywheel effect for improved cutting performance.

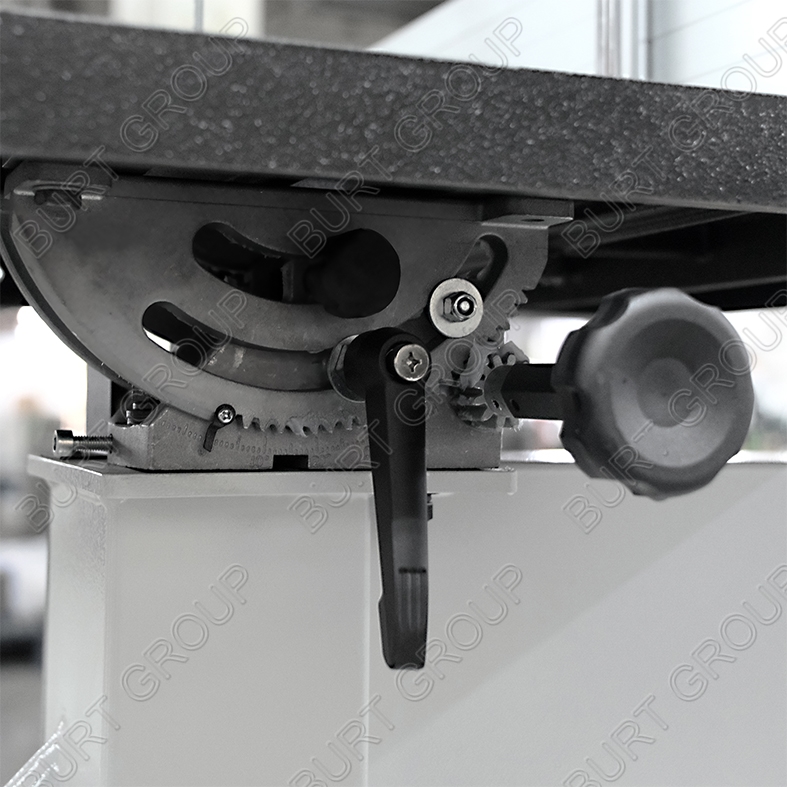

* Solid double trunnion table mount for rigid table support featuring one handed rack pinion table tilt for ease of use and accuracy.


Description Video Documents

HBS400PN bandsaw offers high quality, industrial features and large capacities to the mid range bandsaw market.

This machine brings affordable solid performance and reliability within reach of the discerning woodworker. Like all bandsaw in the range, a solid cast iron table provides unrivalled stability and solidity. An industrial style cast trunnion supports the table and allows it to be tilted one handed on a rack and pinion, Dynamically balanced cast iron bandsaw wheels ensure superior strength and reduced vibration- a feature not usually found on other machines at this level. The 2hp motor and 305mm depth of cut means this machine can cope easily with large timber yet is also equally capable of fine, precise cuts and veneers.


Specification:

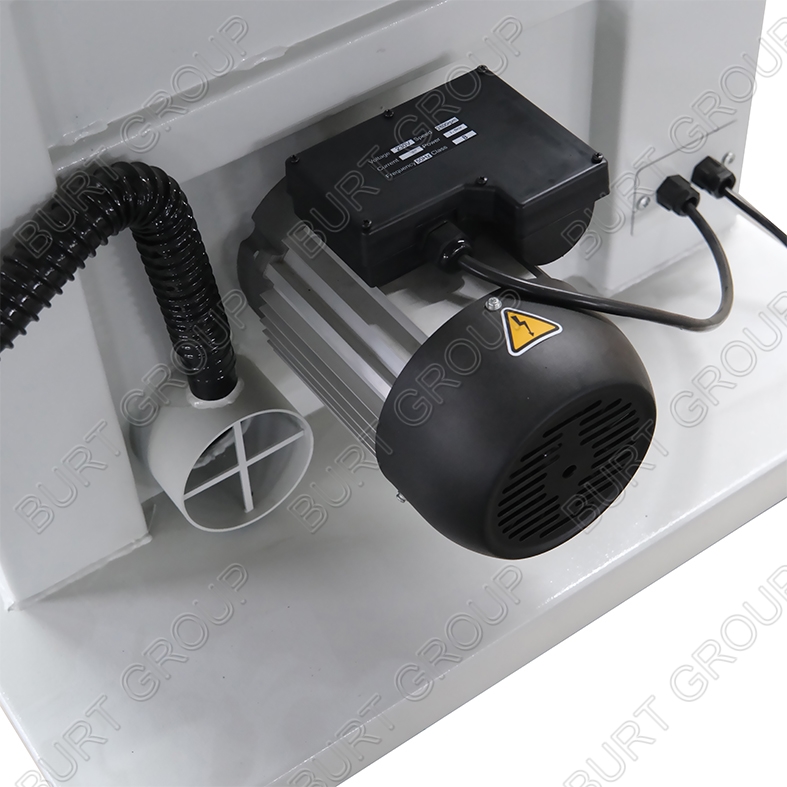

01) Motor power(output): 2HP

02) Blade length: 3378mm

03) Blade width: 6-25mm

04) Blade speed: 480/820 m/min

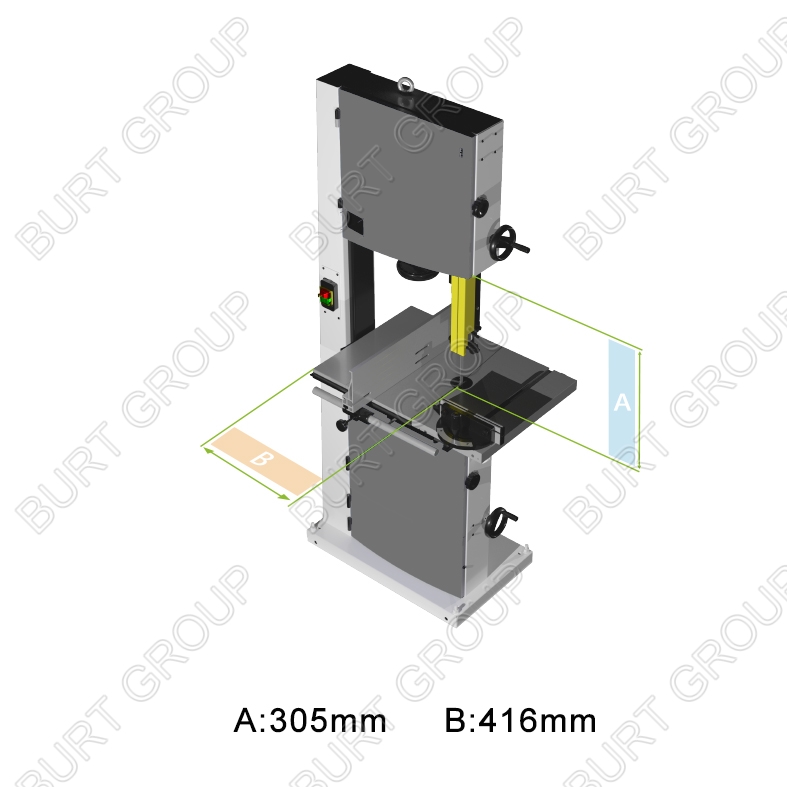

05) Max depth of cut: 305mm

06) Max width of cut: 416mm

07) Table size: 535x485mm

08) Table tilt: 0-45°

09) Bandsaw wheel Dia.:422mm

10) Dust port: 100mm

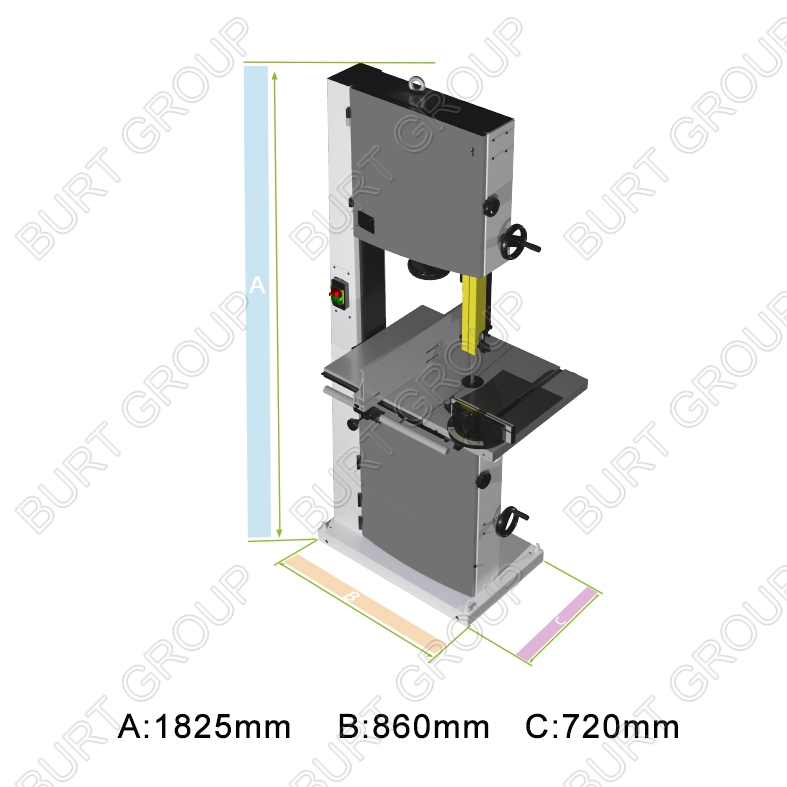

11) Package size: 713x512x1920mm

12) Net/Gross Weight: 140/151kgs

13) Container load Qty:33pcs/20’


Optional fitting:

* Pusher

* Miter gauge

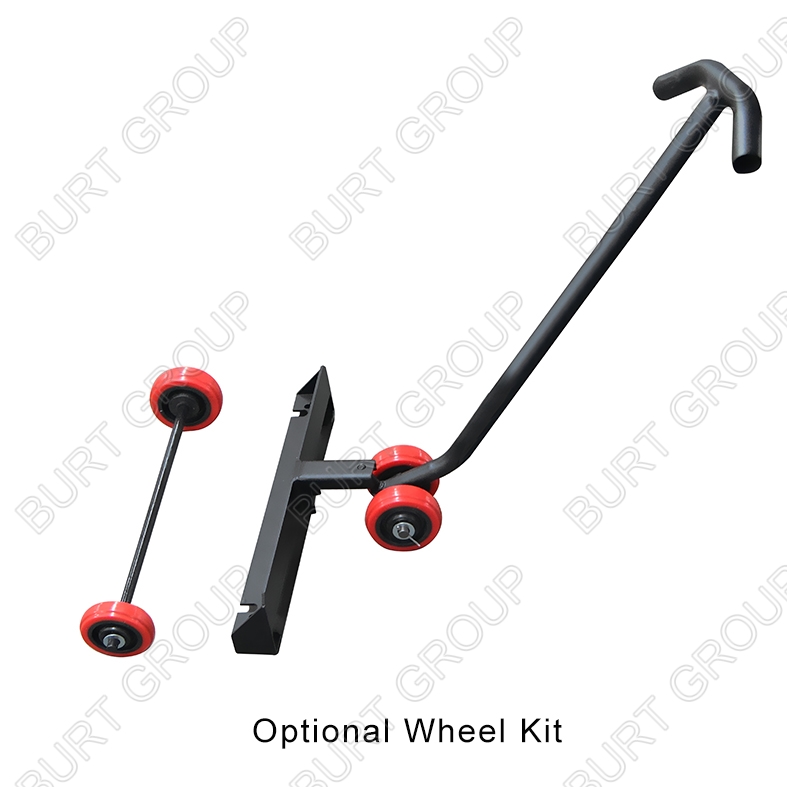

* Wheel kit assembly
