HBS450PN

HBS450PN NEW DELUX 18" WOODWORING BANDSAW
Main Features

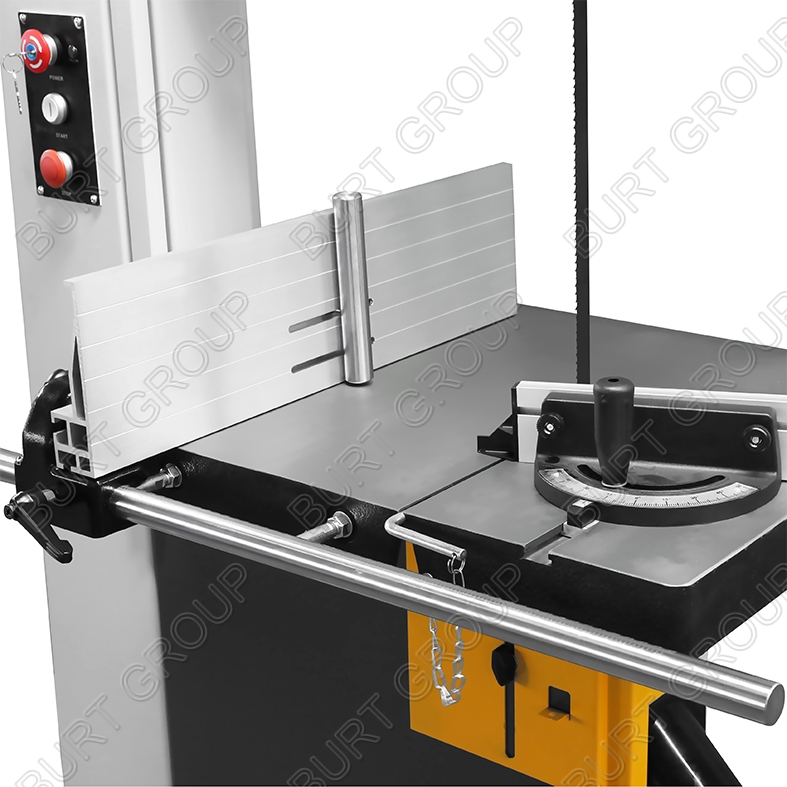

* Patented quick adjust 6”tall rip fence system

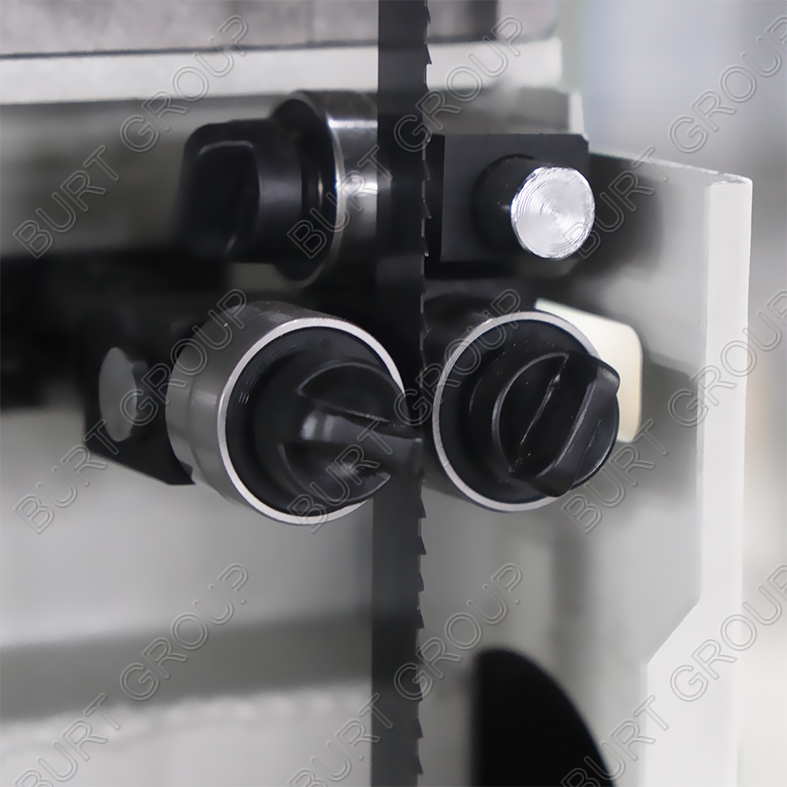

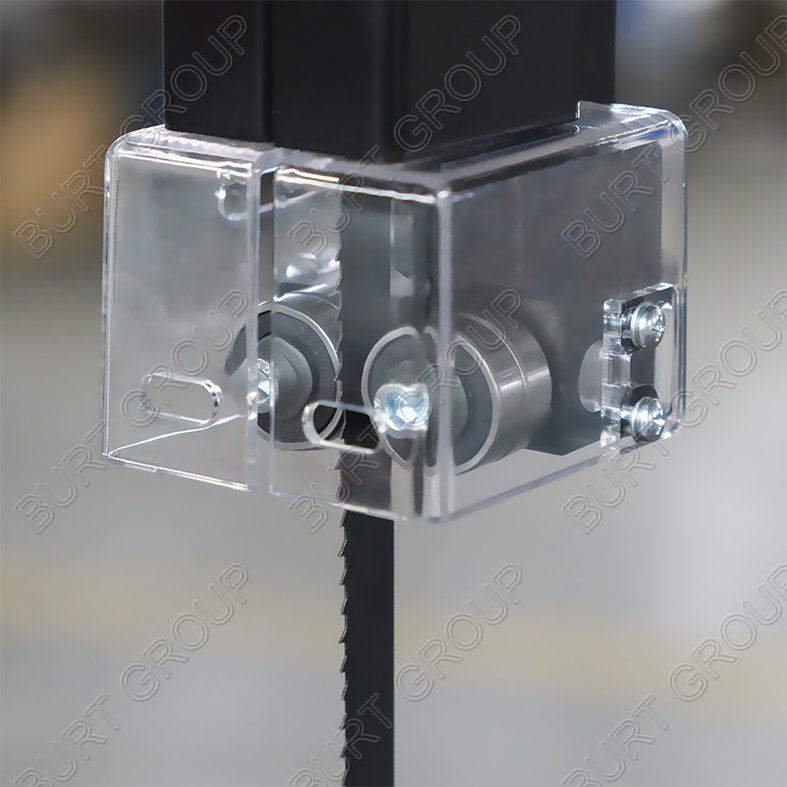

* Patented blade guide for accuracy cut.

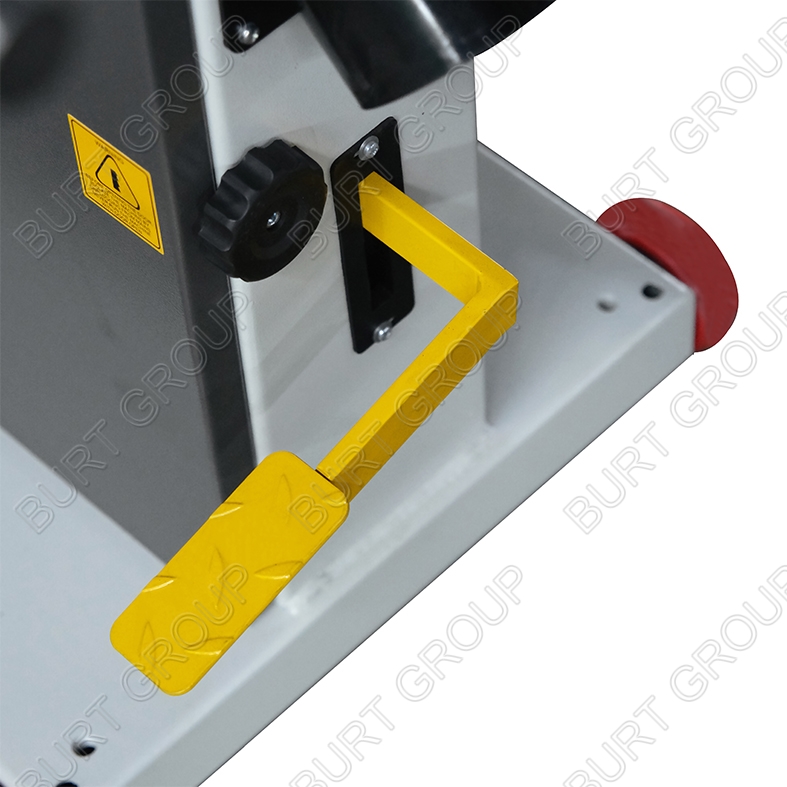

* Foot brake with micro switch

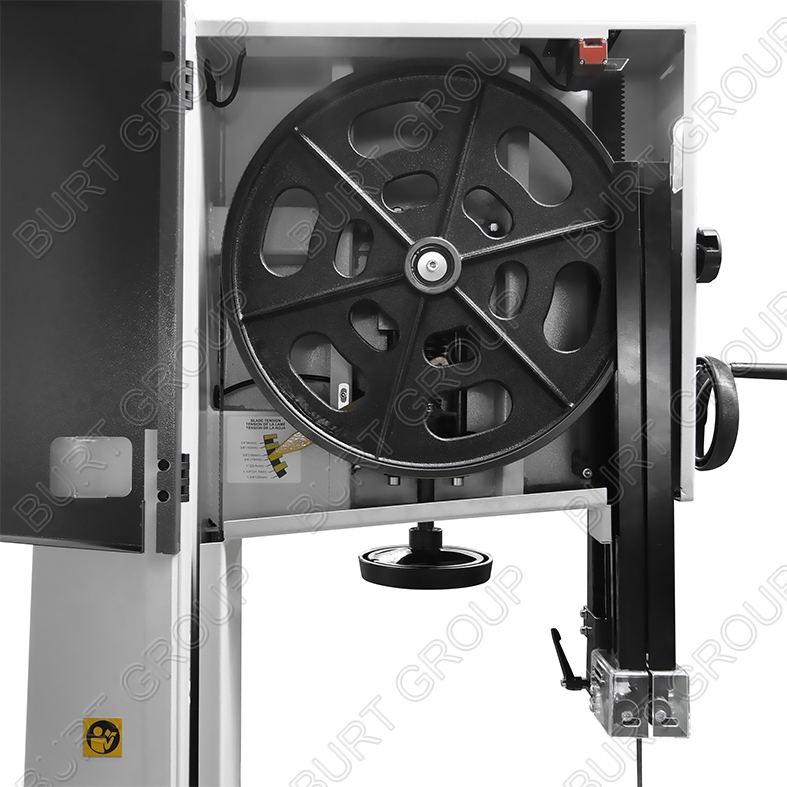

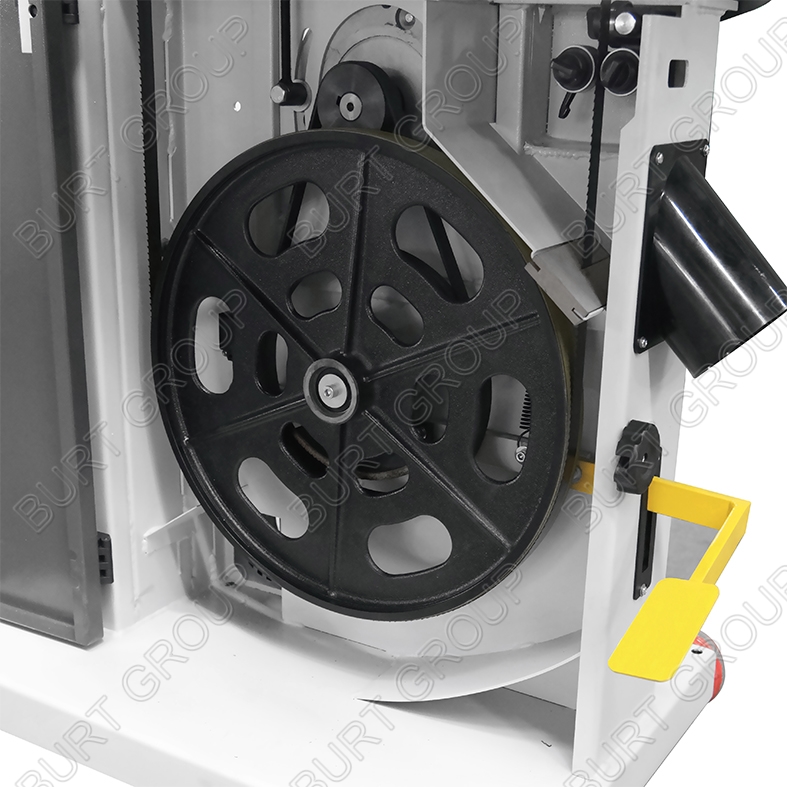

* Cast iron bandwheels are dynamically balanced and provide a flywheel effect for improved cutting performance.

Description Video Documents

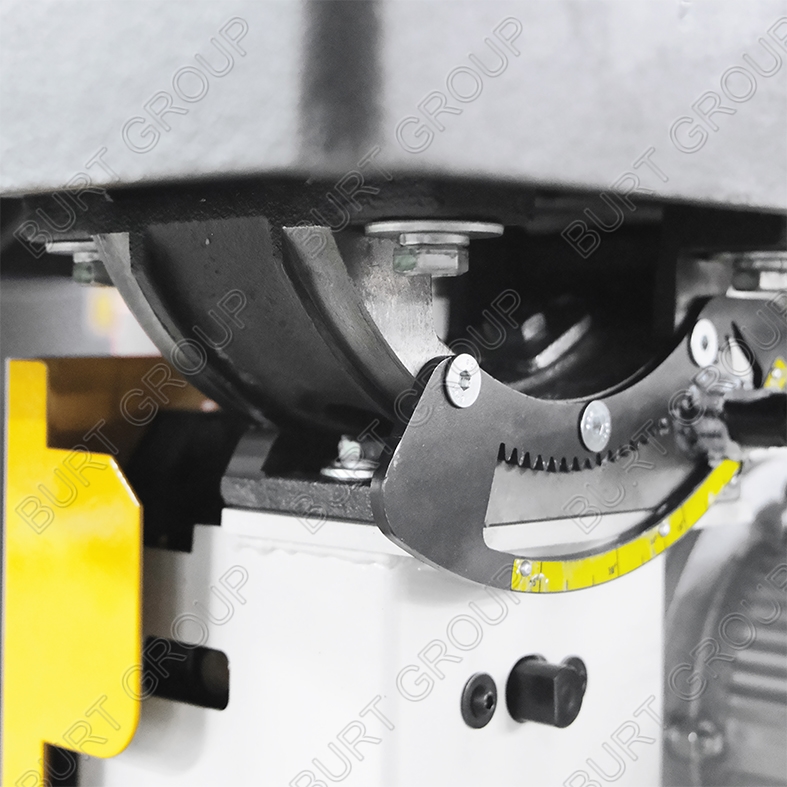

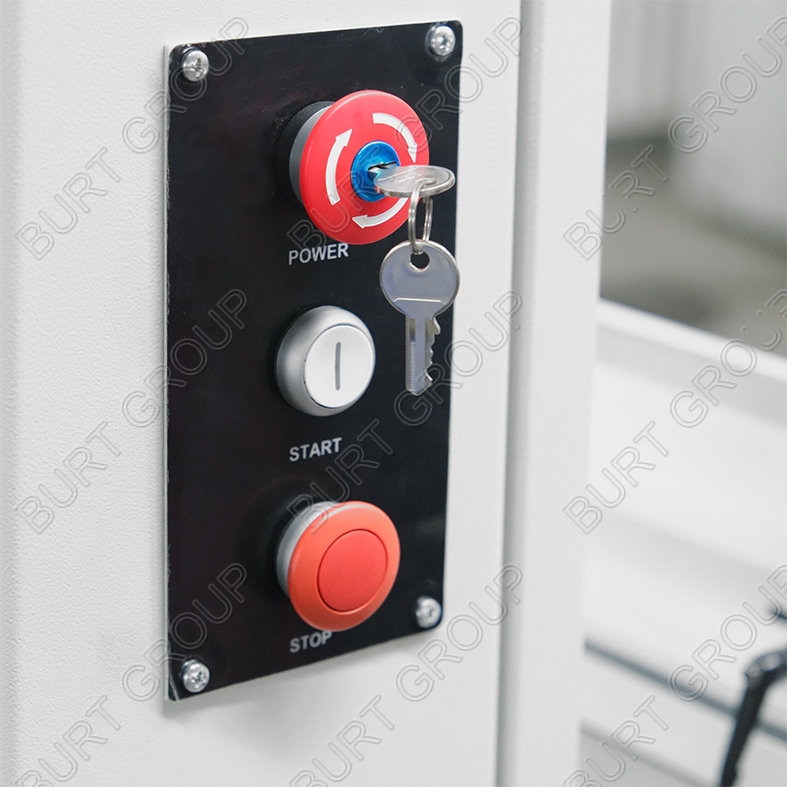

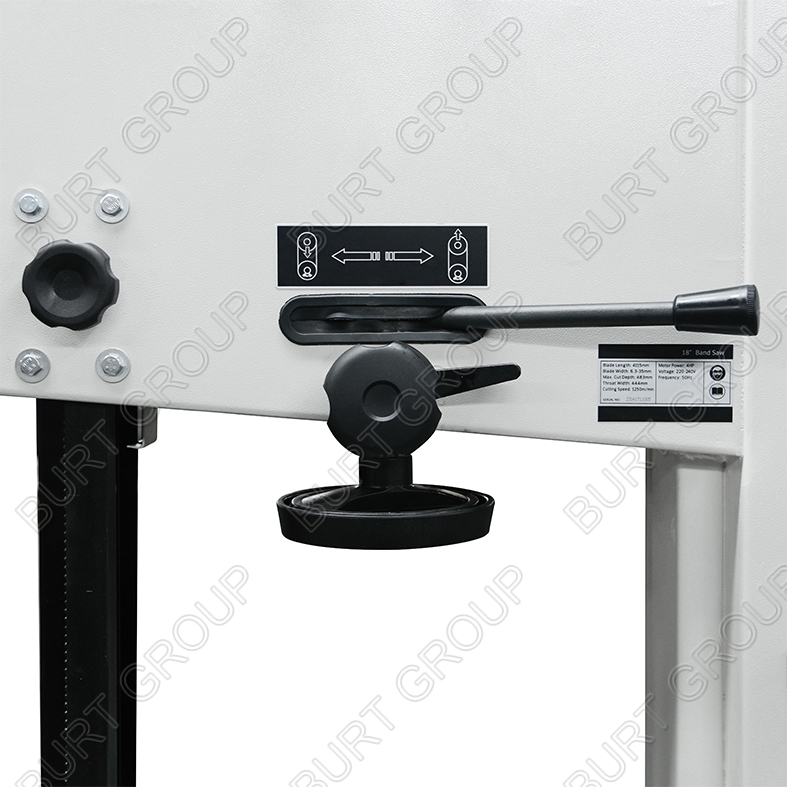

HBS450PN bandsaw has one of the most powerful motors in the line, 4HP with 483mm of re-saw capacity, which makes it ideal for woodworkers doing a lot of heavy re-saw work. Professional features include spring loaded tool-less guide system, massive cast iron table with quick adjust trunnion system, substantial quick adjust 6” tall rip fence system, key activated safety on/off switch, micro safety on/off switch activated door& foot brake. Under the top door blade tension release levers with blade tension hand wheels are easy to access from the front of the saw.


Specification:

01) Motor power(output): 4HP

02) Blade length: 4115mm

03) Blade width: 6-35mm

04) Blade speed: 1250 m/min

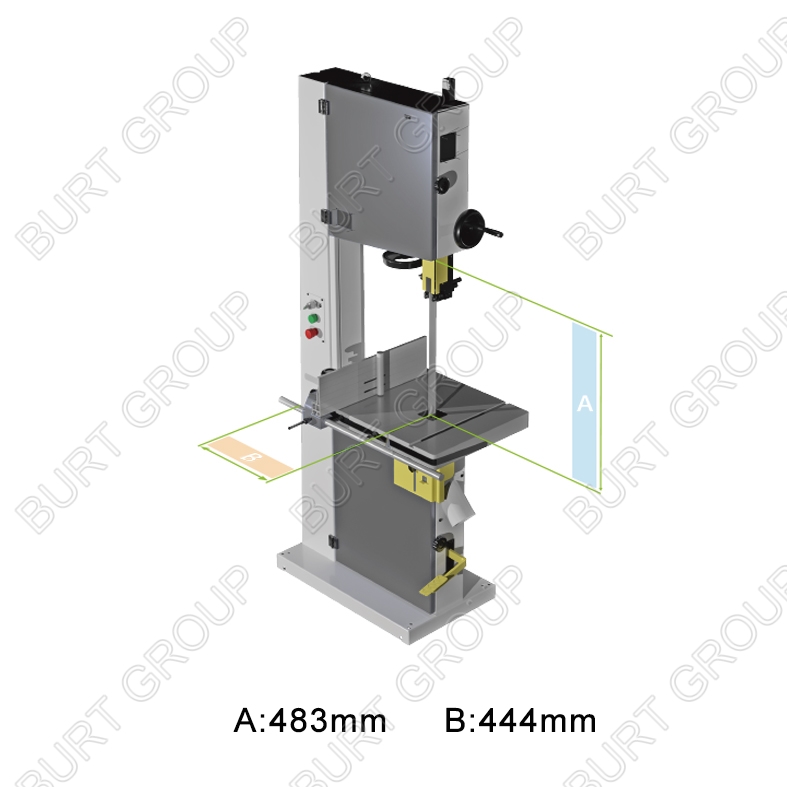

05) Max depth of cut: 483mm

06) Max width of cut: 444mm

07) Table size: 633x485mm

08) Table tilt: -5-45°

09) Bandsaw wheel Dia.:452mm

10) Dust port: 100mm

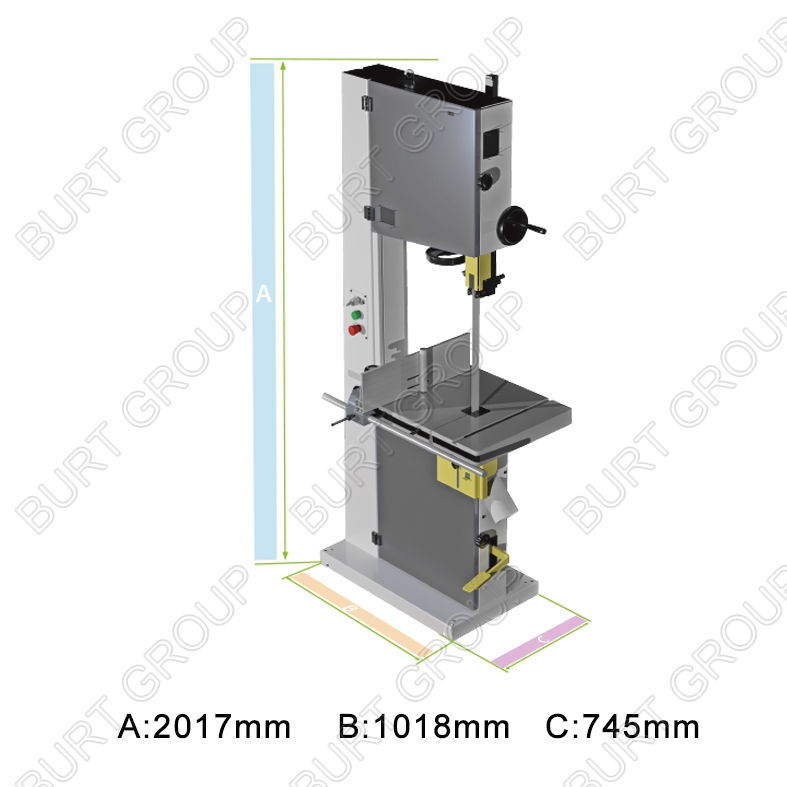

11) Package size: 877x617x2165mm

12) Net/Gross Weight: 203/254kgs

13) Container load Qty: 21pcs/20’


Optional fitting:

* Pusher

* Miter gauge

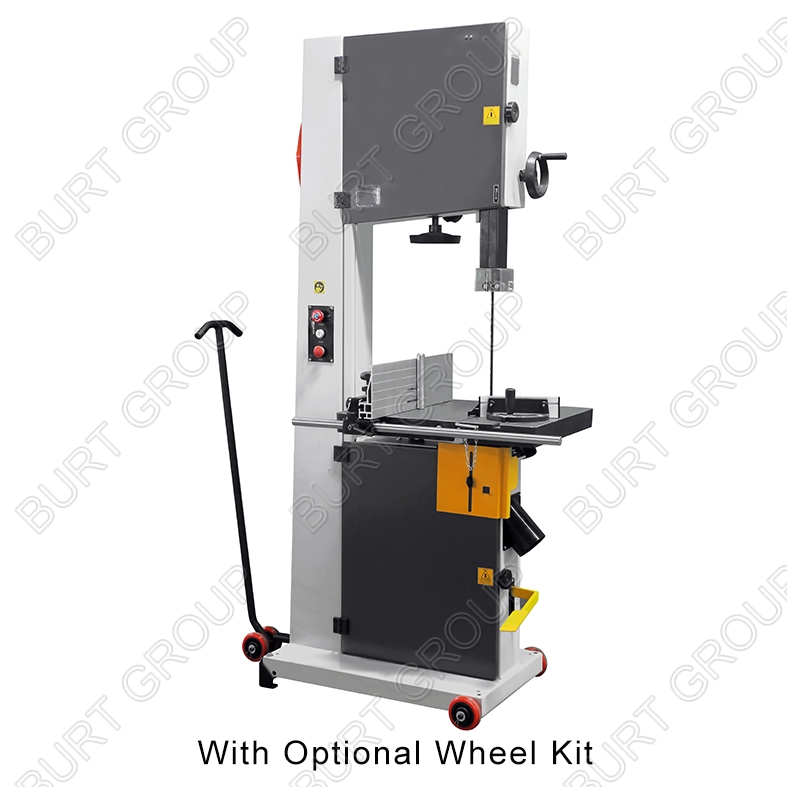

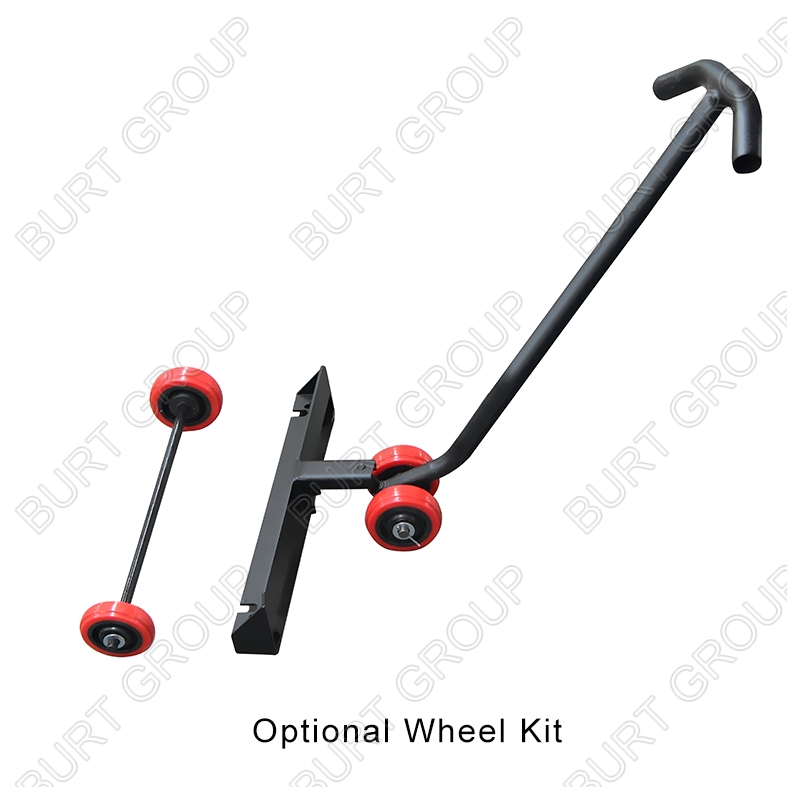

* Wheel kit assembly
