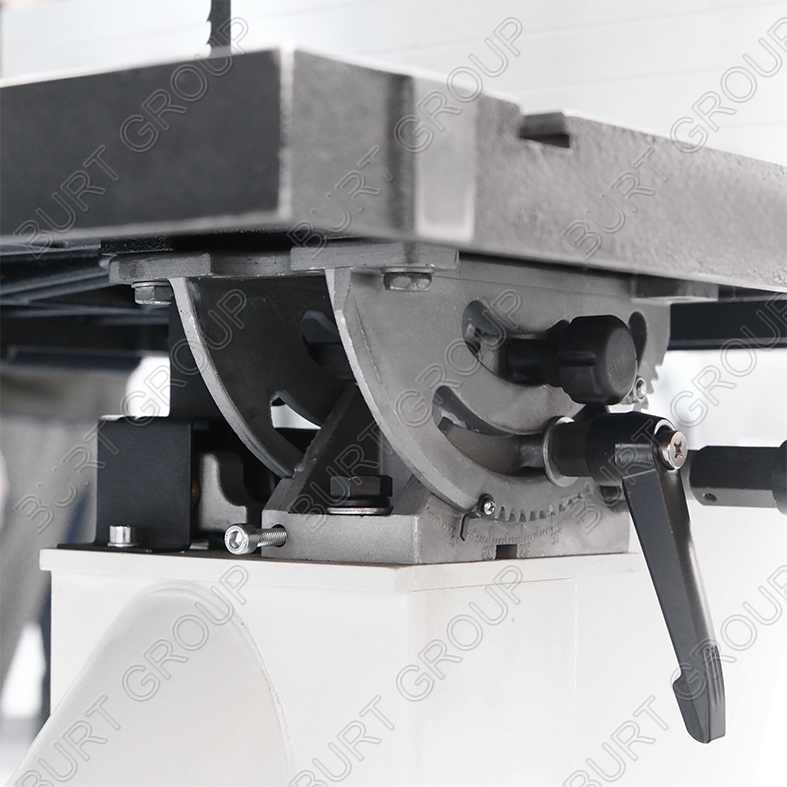

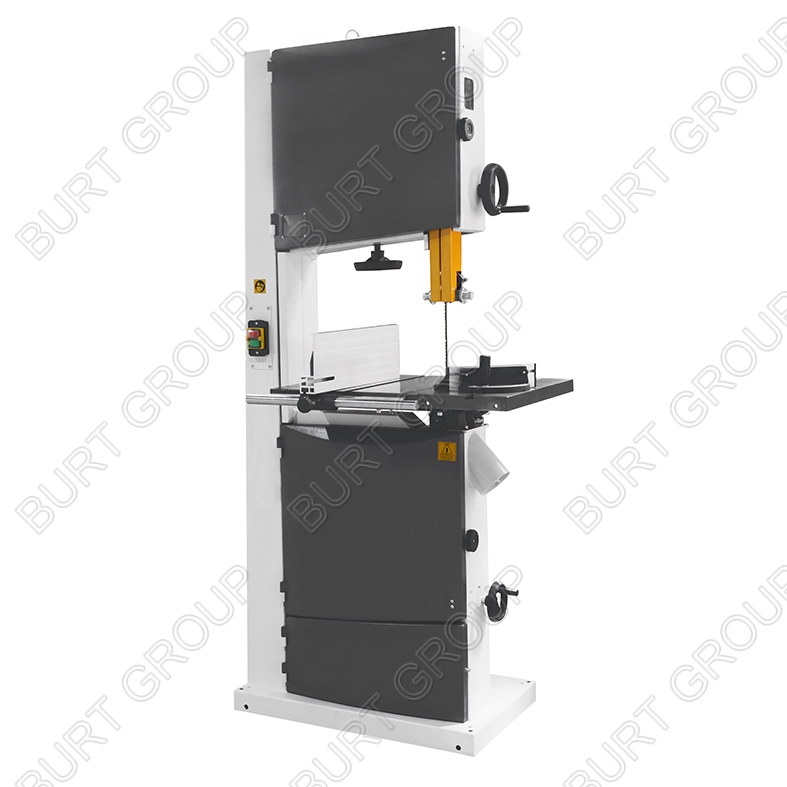

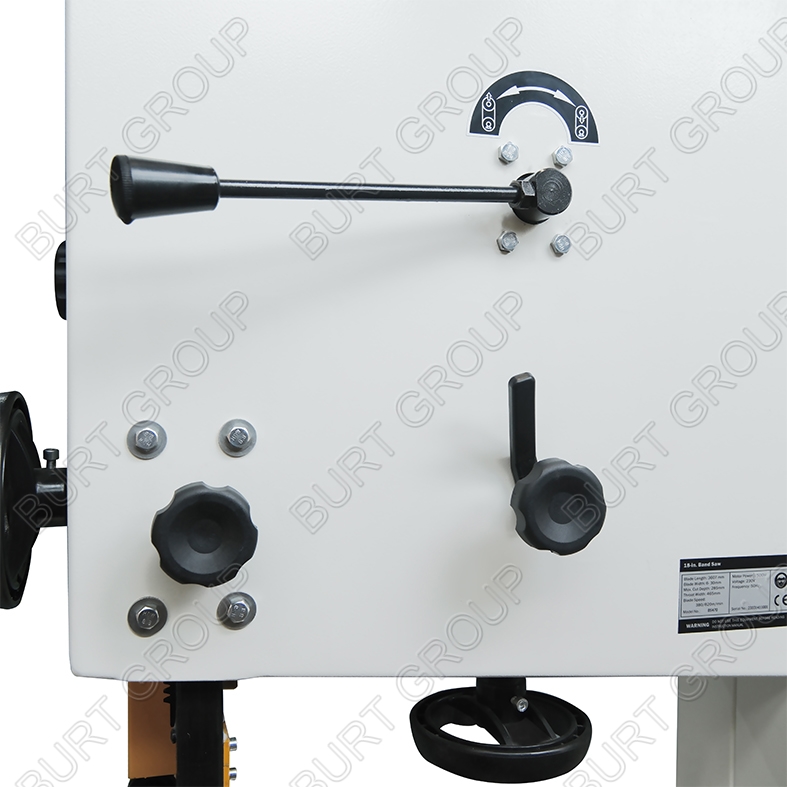

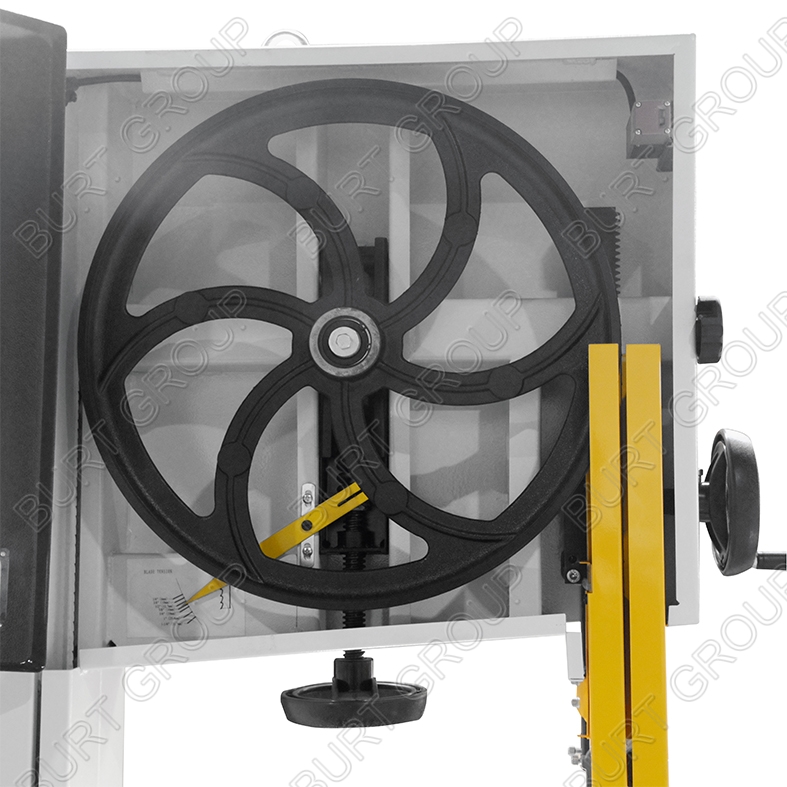

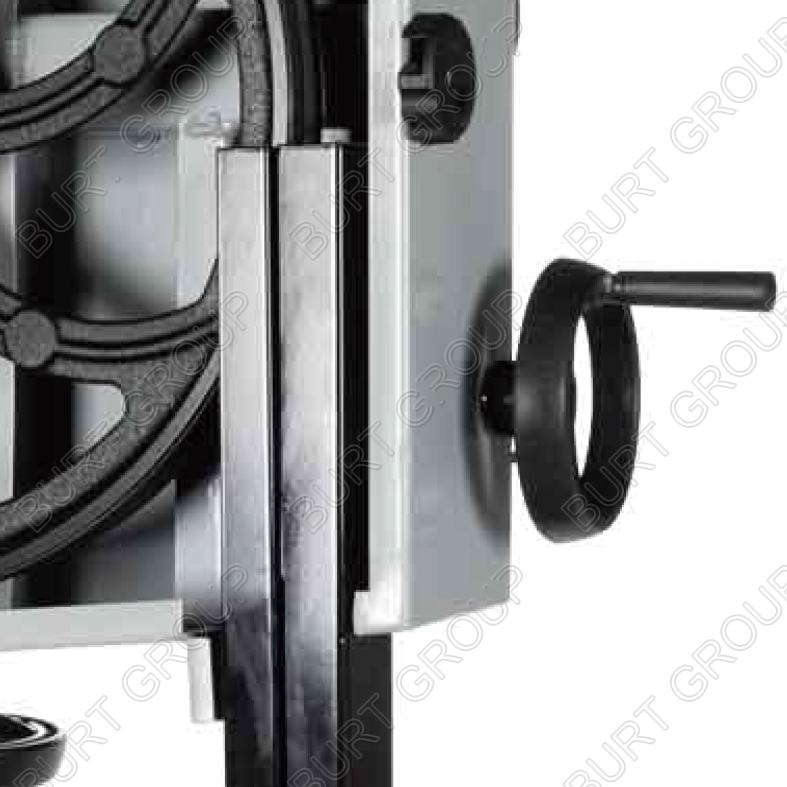

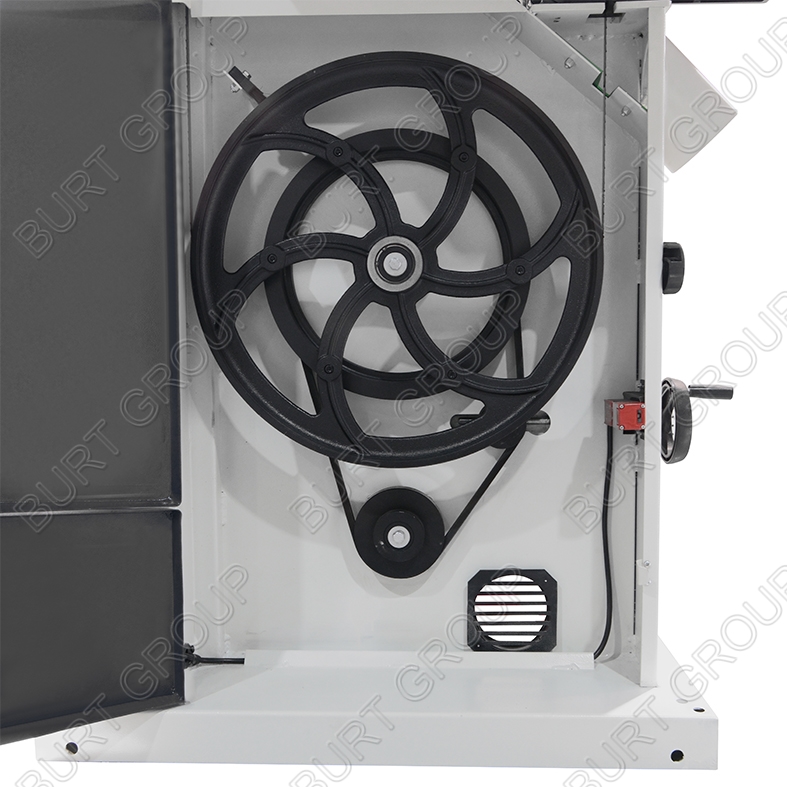

HBS470PN bandsaw offers high quality, industrial features and large capacities to the mid range bandsaw market.Mechanically welded frame, rigid and strong. Cast iron sawing table with oversize casting trunnions and driven by gear for easy tilting. Adjustment of the blade tension with a handwheel, tension graduation is readable through asighting window on the upper door. Quick release blade tension lever. Two cutting speeds by changing the position of the belt, depending on the material to be cut.

Specification:

01) Motor power(output): 2HP

02) Blade length: 3451mm

03) Blade width: 6-35mm

04) Blade speed: 380/820 m/min

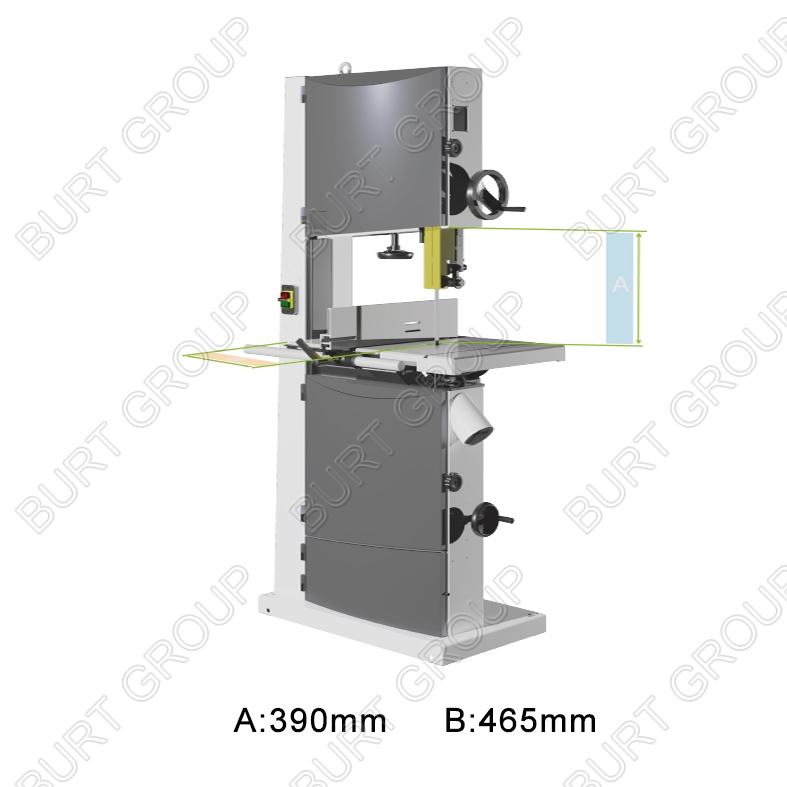

05) Max depth of cut: 390mm

06) Max width of cut: 465mm

07) Table size: 535x485mm

08) Table tilt: 0-45°

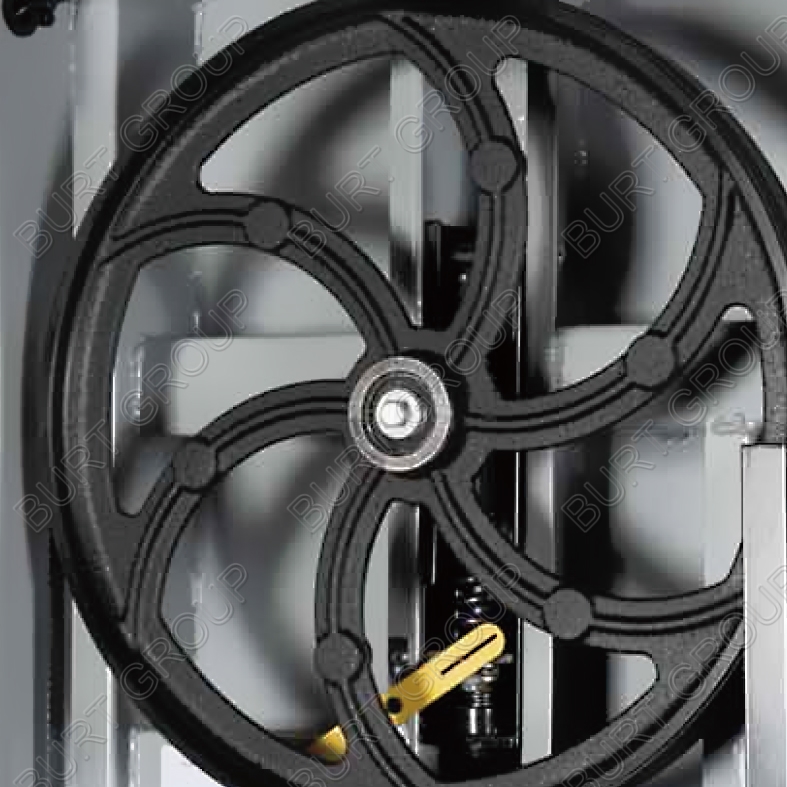

09) Bandsaw wheel Dia.:475mm

10) Dust port: 100mm

11) Package size: 820x520x1990mm

12) Net/Gross Weight: 157/170kgs

13) Container load Qty: 29pcs/20’

Optional fitting:

* Pusher

* Miter gauge

* Wheel kit assembly
