BS150DC

150X2000MM BELT SANDING MACHINE WITH INTEGRATED EXTRACTION
Main Features

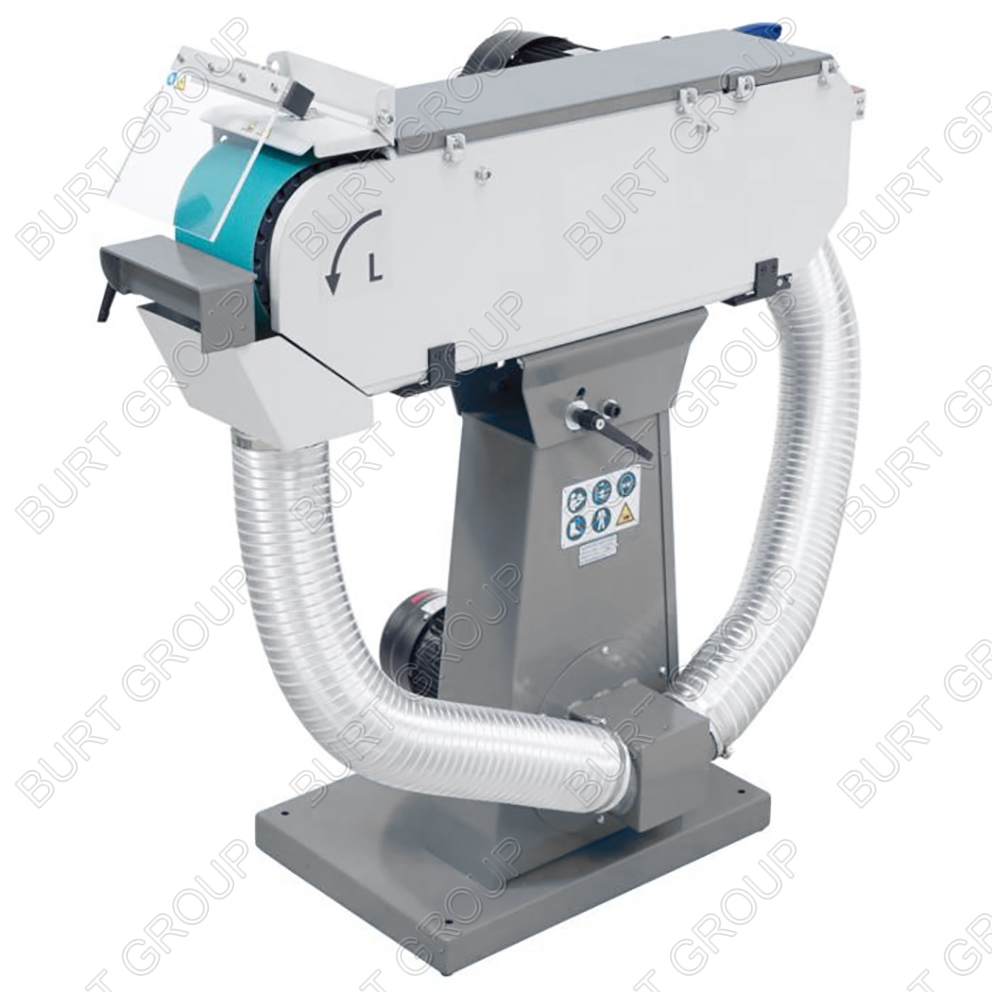

* Serially with integrated extraction for optimal working conditions and clean air at work

* Comes complete with 2 speed settings (BS150DC/400II), optimal for grinding of stainless steel

* Universal use for grinding of edges, surfaces and round grinding

* Graphite coating on grinding surface increases sliding capacity of sanding belt

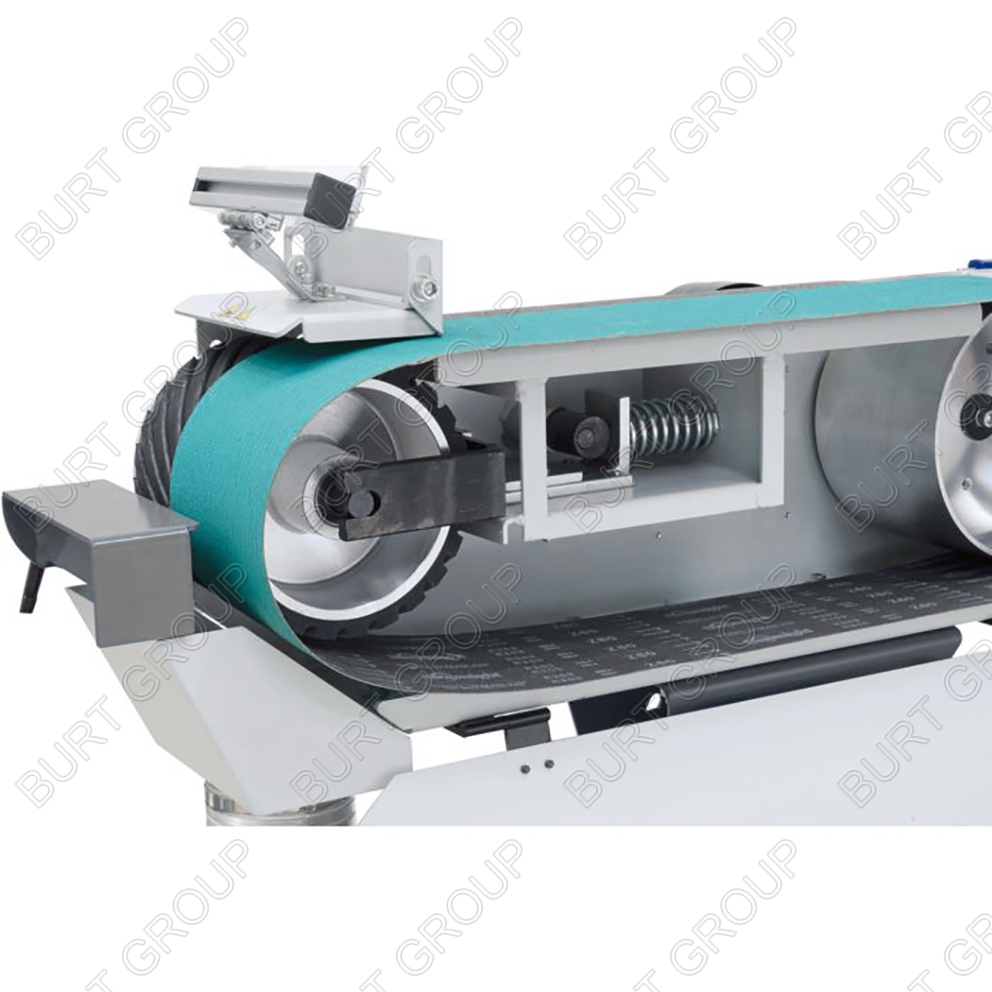

* Spring loaded device ensures consistent belt tension

* User-friendly belt change, fast and straightforward

* High belt speed guarantees brilliant sanding performance

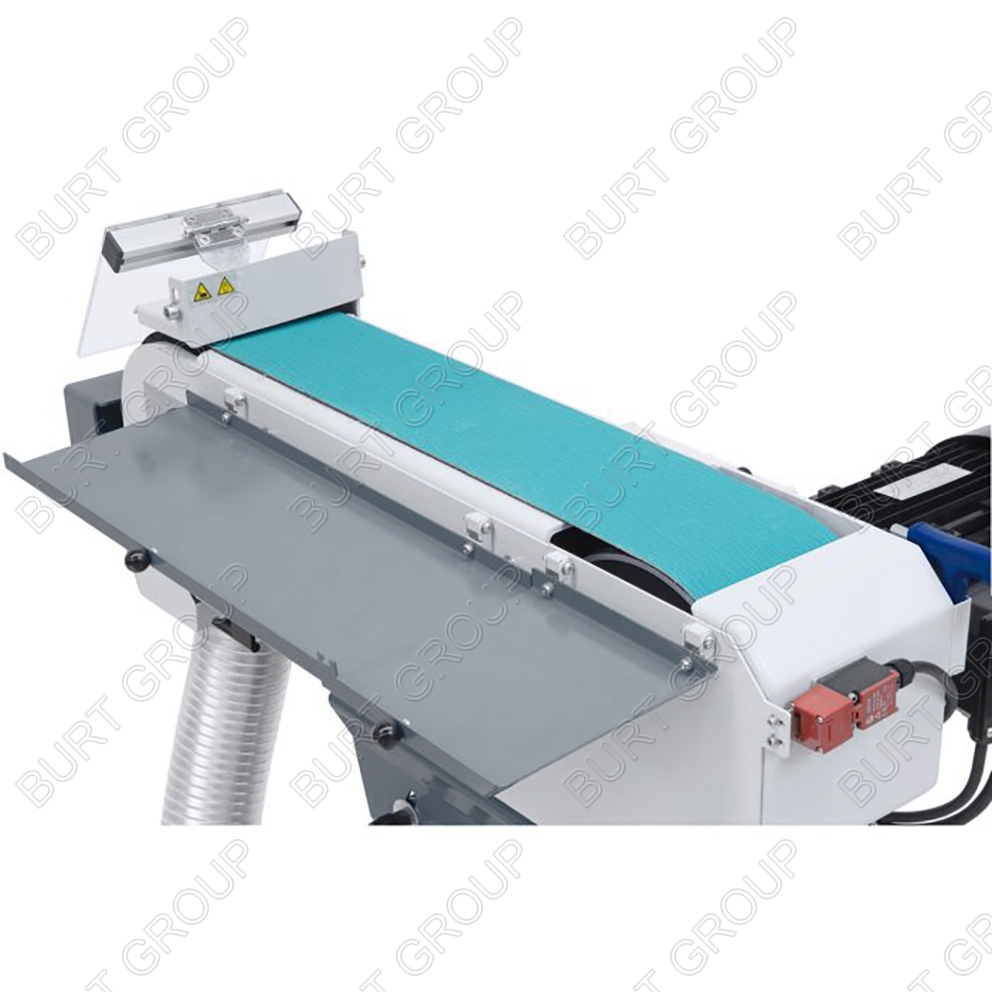

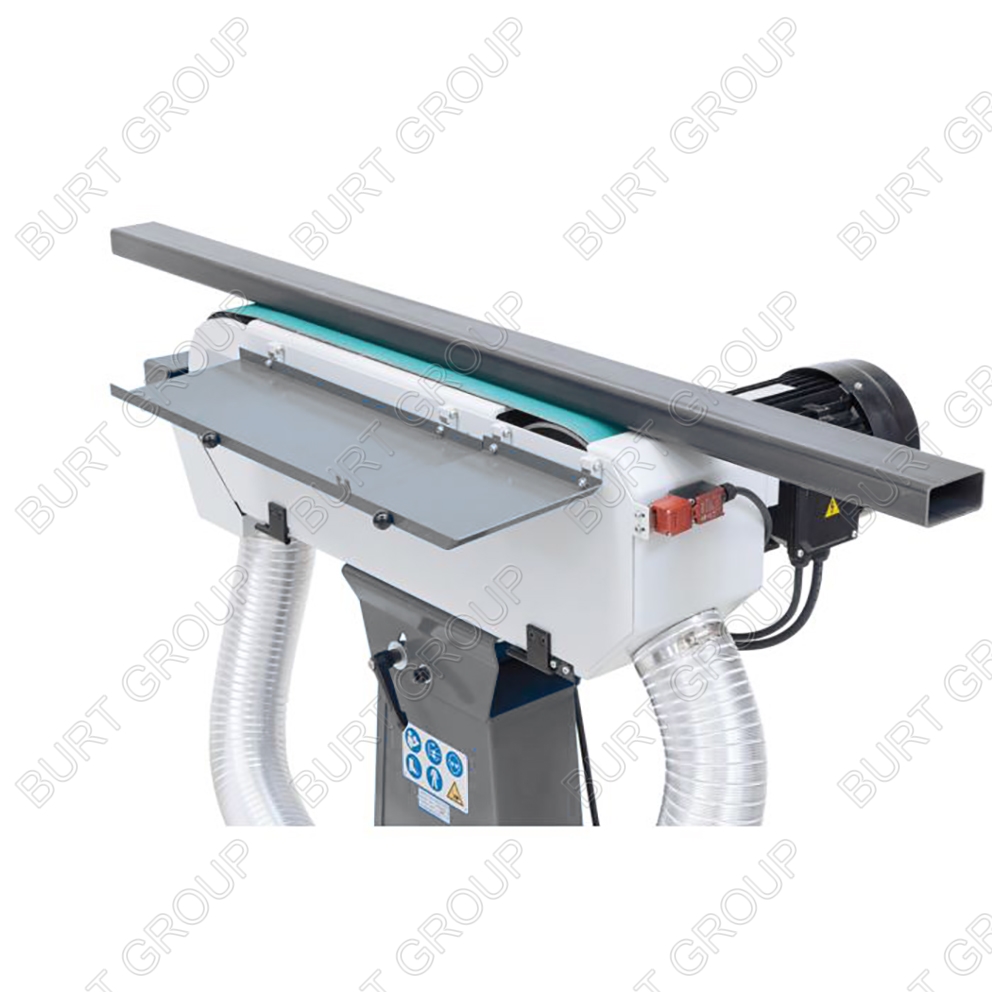

* Large face grinding surface with protective cover


Description Video Documents

This grinding machine is fitted with integrated extraction for optimal working conditions and clean air at work. It's universal used for grinding of edges, surfaces and round grinding. The machine is fitted with large grinding surface with protective cover. The spring loaded device ensures consistent belt tension and the belt change is fast and straightforward.


Model No.:

BS150DC/230  150X2000MM BELT SANDING MACHINE WITH INTEGRATED EXTRACTION 230V ONE SPEED

BS150DC/400  150X2000MM BELT SANDING MACHINE WITH INTEGRATED EXTRACTION 400V ONE SPEED

BS150DC/400II 150X2000MM BELT SANDING MACHINE WITH INTEGRATED EXTRACTION 400V TWO SPEEDS


Specification:

01) Belt dimension: 150 x 2000 mm

02) Belt speed: one speed model: 36 m/sec. ; two speeds model: 18/36 m/sec.

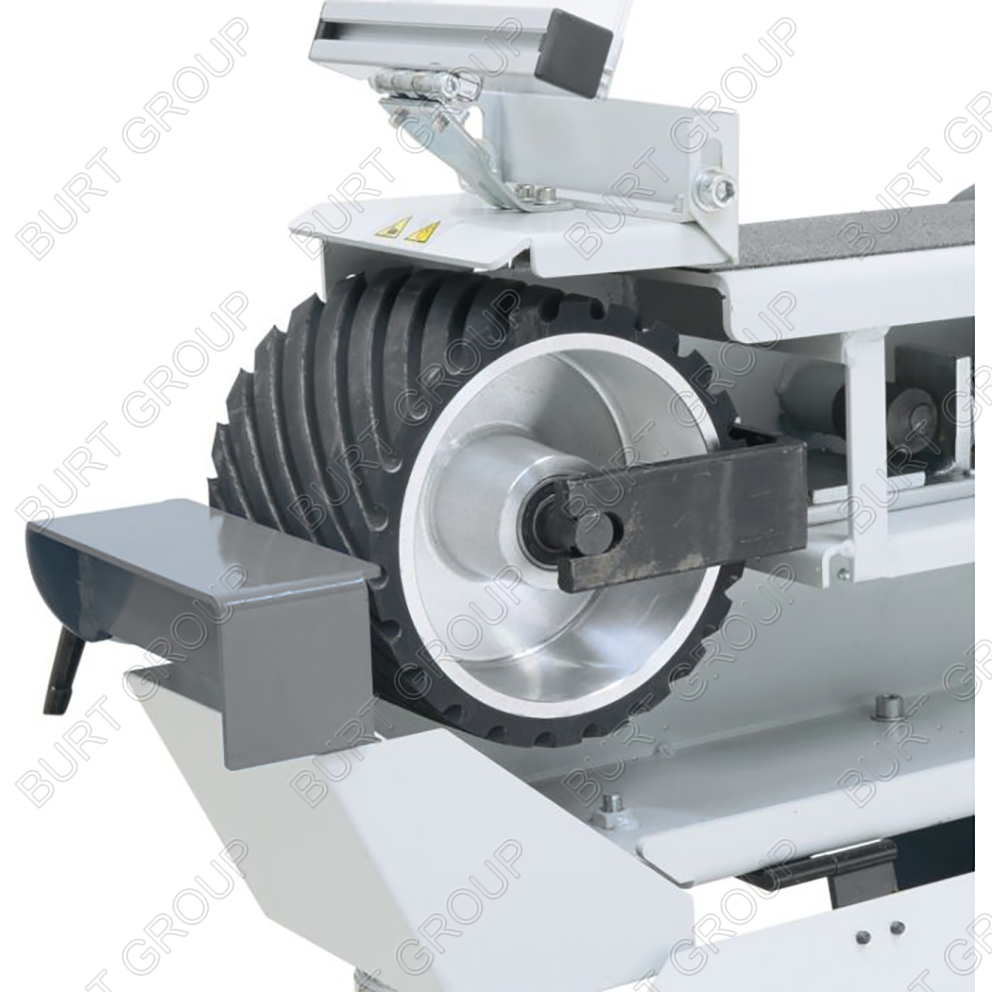

03) Contact diameter: 200/150 mm

04) Belt sanding table: 500 x 150 mm

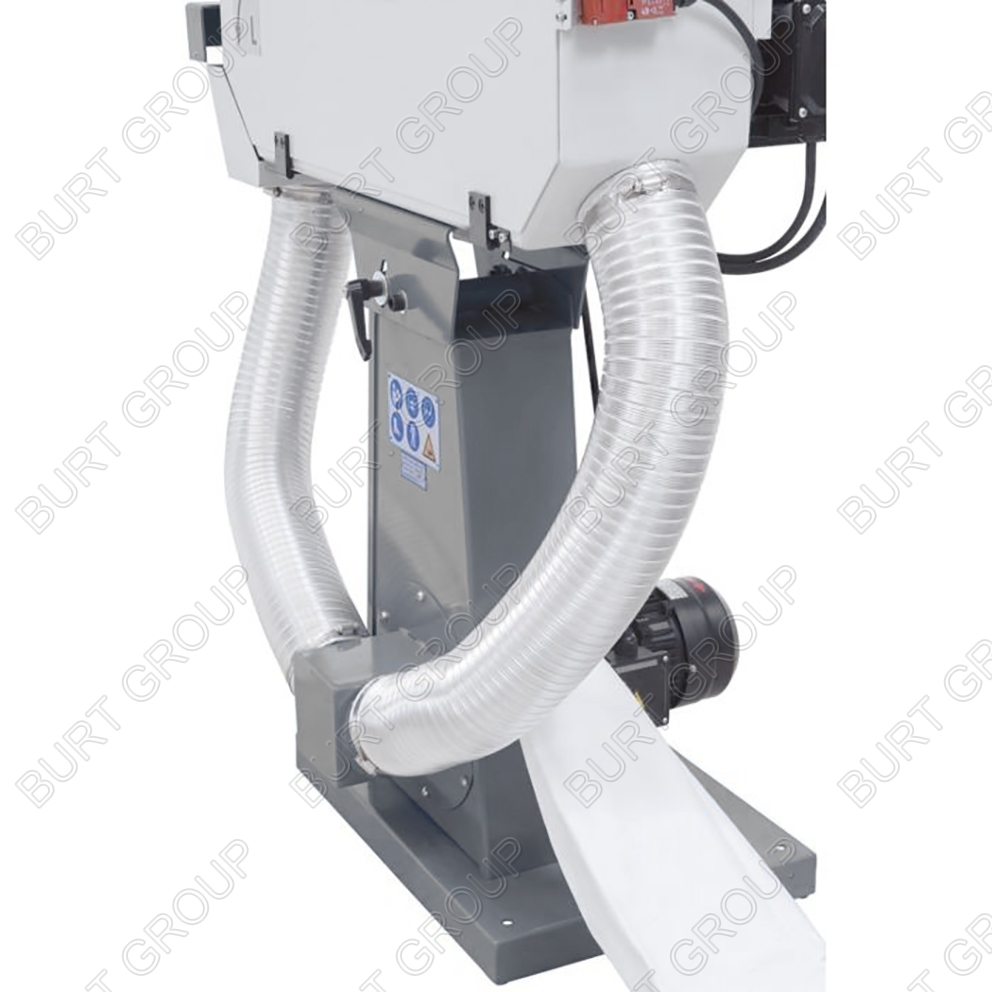

05) Dust extraction outlet: 2x 100 mm

06) Suction power: 520 m3/h

07) Speed suction: 2780 rpm

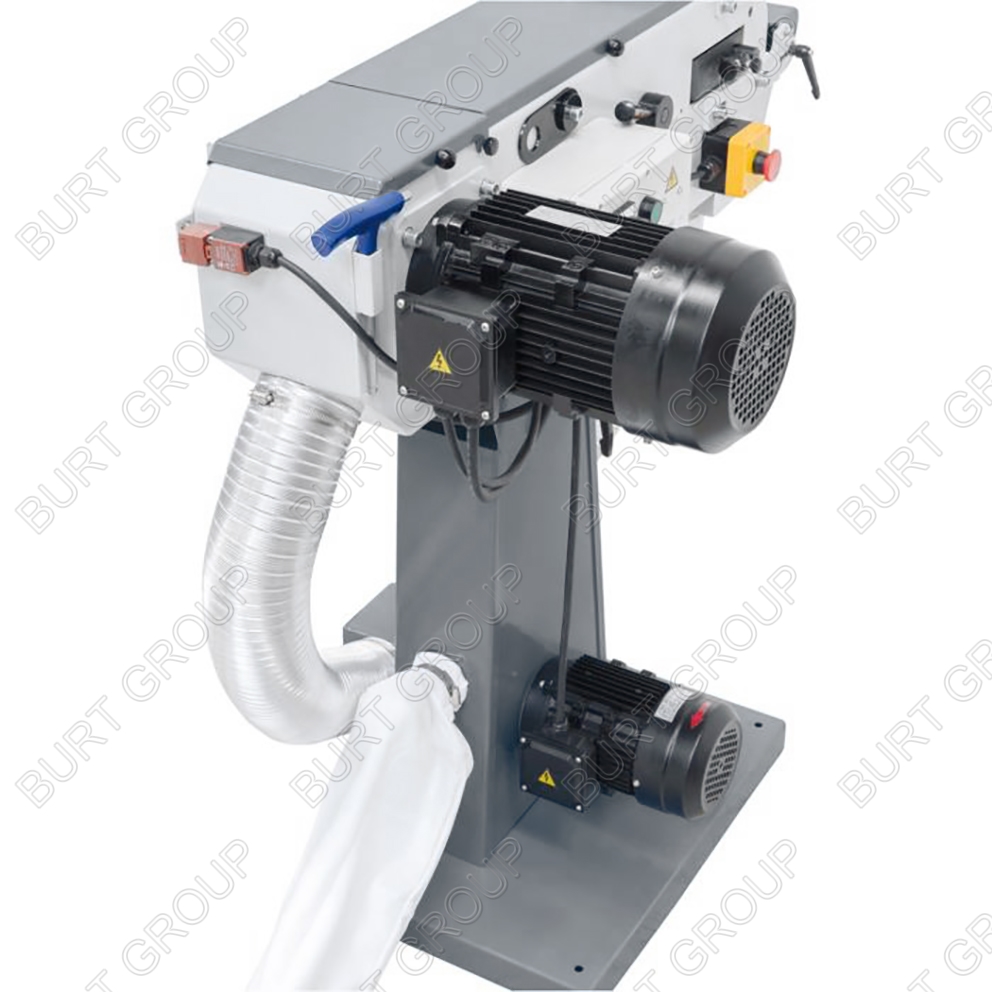

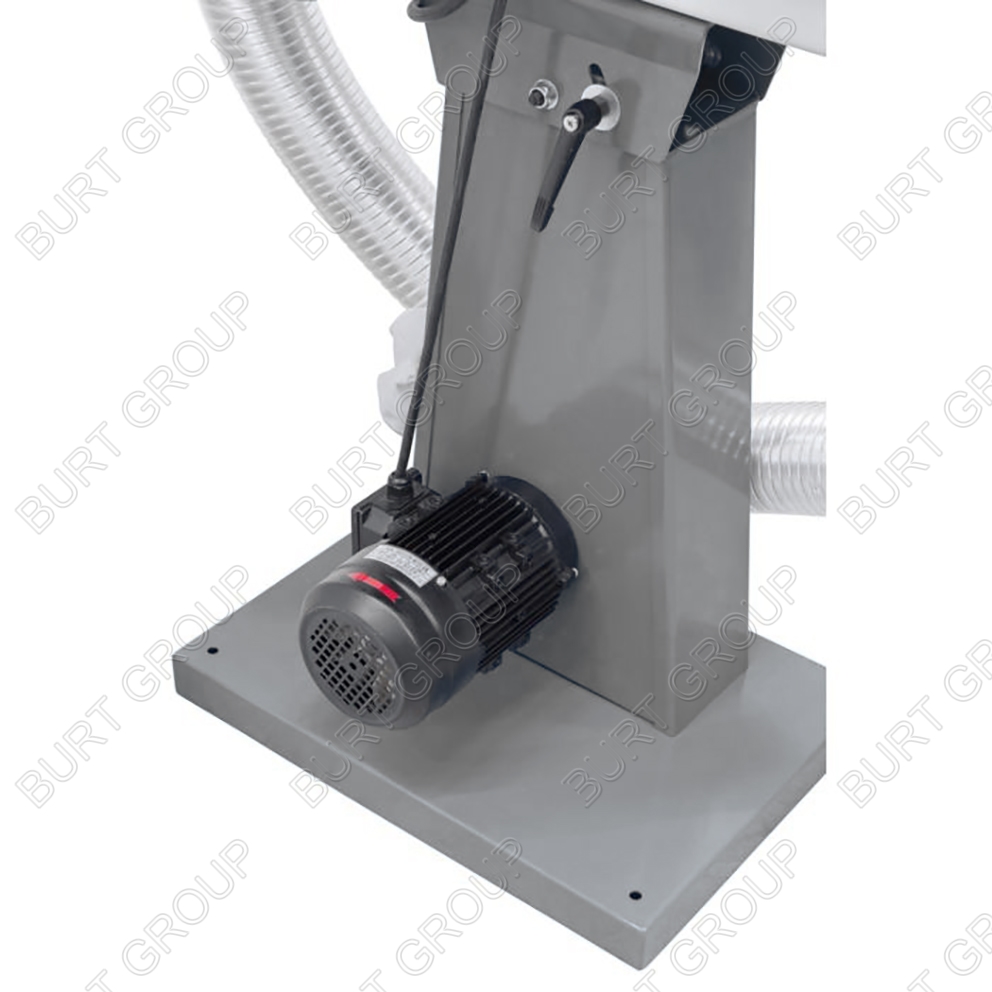

08) Motor power suction: 0.37 kW

09) Motor power output S1 100%: one speed model: 3.3kW ; two speeds model: 2.5/3.3 kW

10) Motor power input S6 40%: one speed model: 4.3kW ; two speeds model: 3.3/4.3 kW

11) Voltage: 230V 1PH or 400V 3PH

12) Length x Width x Height:1130 x 600 x 1130mm

13) Weight approx.: 116kg
