Product Catalog

MJ1025EU

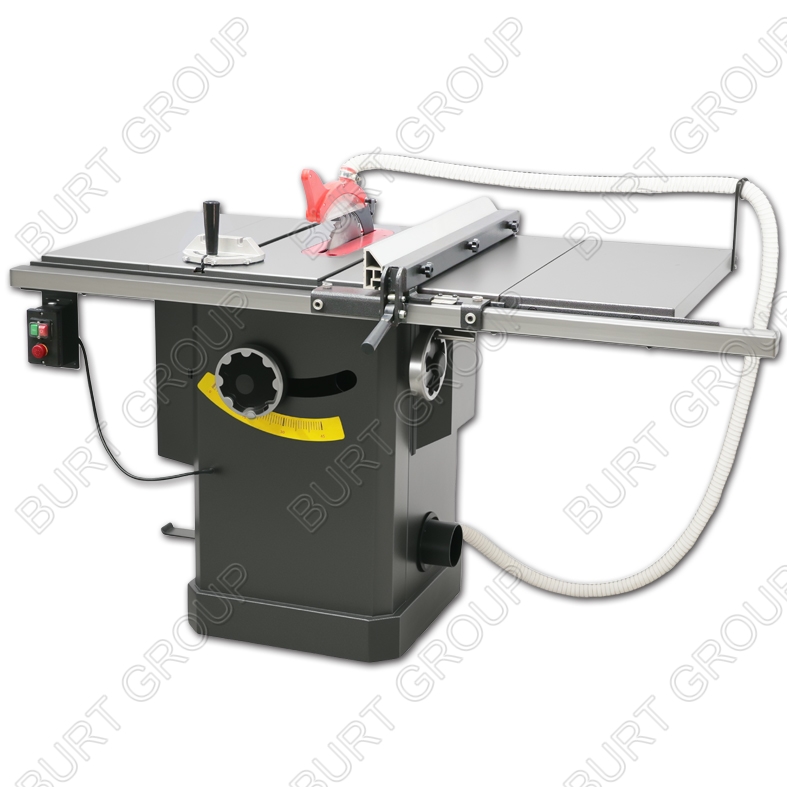

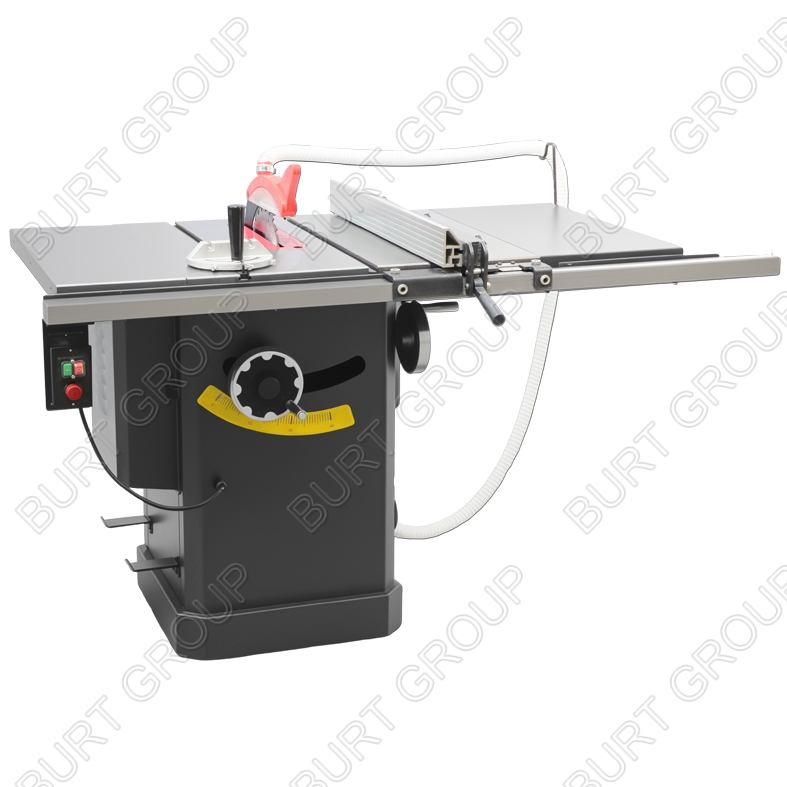

10" CABINET TABLE SAW WITH DADO BLADE ADAPTABLE 2200W
Main Features

* DADO blade optional, with specifications:Φ 203mm x Φ15.875mm,Max dado slot width:13/16"

Description Video Documents

01)Motor power (w):2200

02) Motor speed (rpm/50Hz):2800

03) Motor speed (rpm/60Hz):3100

04) Normal Blade size: Φ254xΦ30x3.2x2.7

05) Blade speed (rpm/50Hz):3850

06) Blade speed (rpm/60Hz):4200

07) Max depth of cut (mm):80

08) Max depth of cut at 45° (mm): 52

09) Table size usable for saw (mm):1020x685

10) Working table height (mm):860

11) Extension table (mm) : 685x340

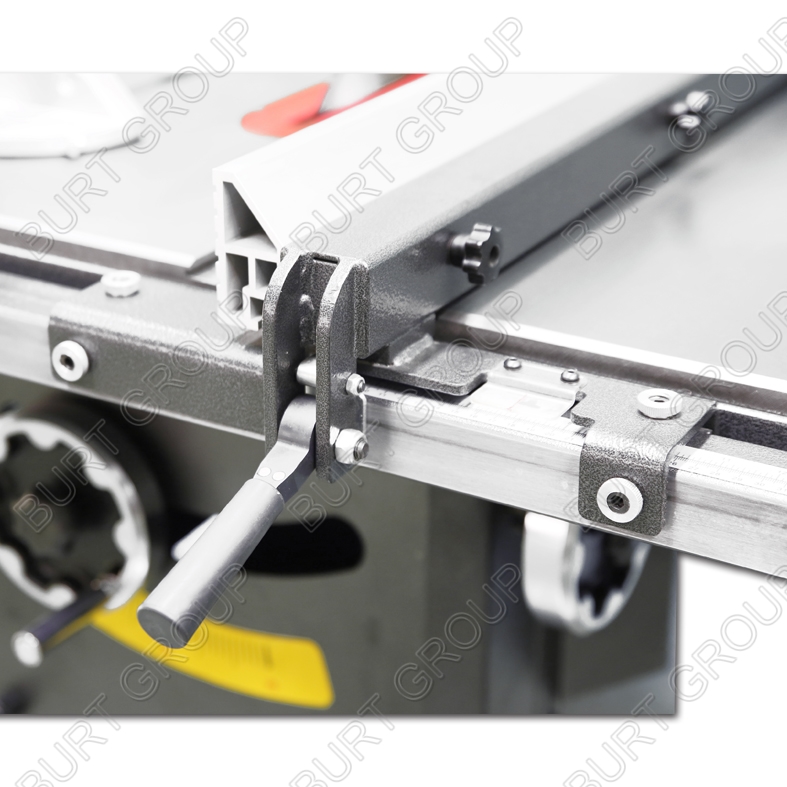

12) Length of rip fence (mm): 768

13) Length and travel of sliding table (mm): 1070x750x1050 / 1610x390x200

14) Enlarged table size by sliding table at (mm): 1070x750x1050 / 1610x390x200

15) Packing size (mm): 1070x750x1050 / 1610x390x200

16) N.G. weight (kgs): 170/245


Main features:

* DADO blade adaptable


Optional accessories

More Accessories
