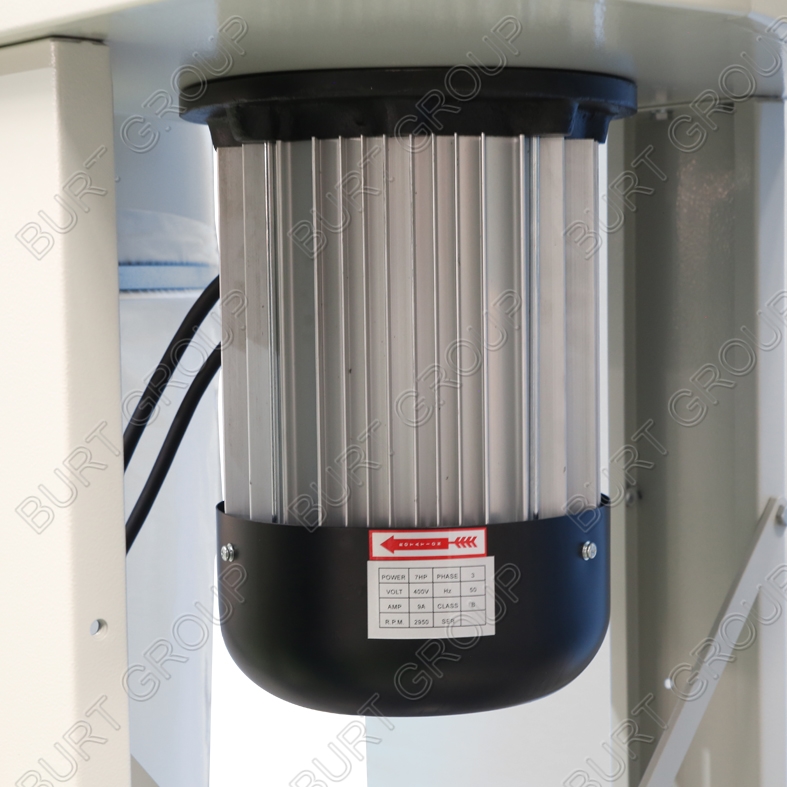

01. Motor power (W): 5250 W

02. Motor speed (rpm): 2850 r/min(50 Hz)

03. Impeller diameter (mm): φ356 × 108(50 Hz)

04. Inlet diameter (mm): φ 180

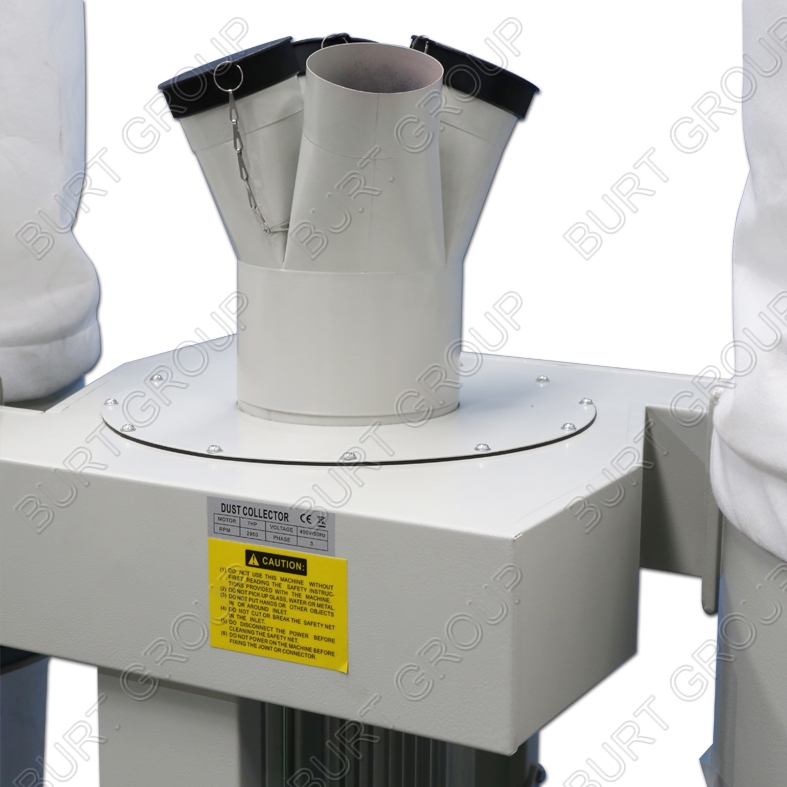

05. Number & diameter of suction ports (mm): 4 × φ100

06. Filter-bag size (mm): φ500 × 1200

07. Filter-bag area (m2): 2.302 × 2

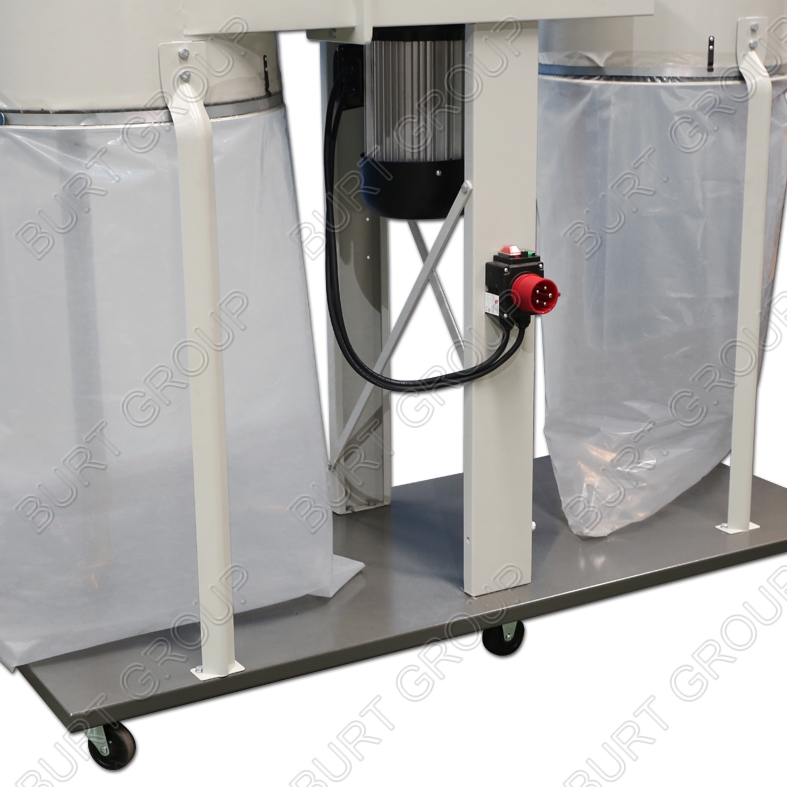

08. Collection-bag size (mm):φ500 × 850

09. Collection-bag volume (m3):0.153 × 2

10. Negative pressure (kPa)/50 Hz: 1.8

11. Air flow (m3/h): 5198(50 Hz)

12. Air speed (m/s):58

13. Noise level (dB):87

14. Overall dimensions (mm):1620 × 695 × 2550

15. Packing dimensions (mm):1650 × 780 × 755

16. Net weight (kg):96.5

17. Loading quantity (20'container): 21 units

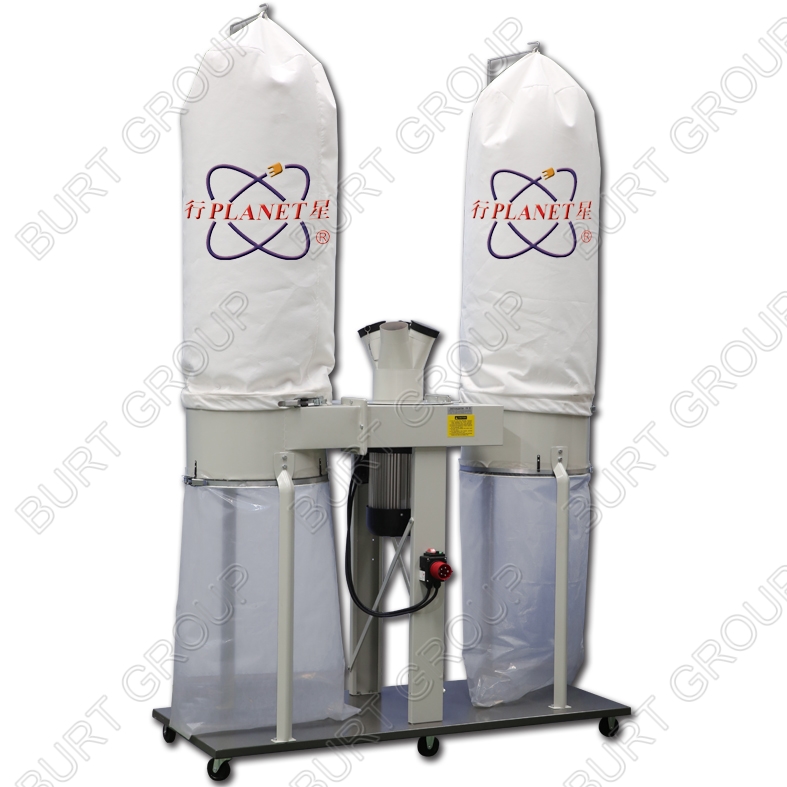

* With Polyester fiber material filter bag on the top + plastic collection bag on the bottom fitted as standard fitting.
