Specification:

1. Motor power input:1200w

2. Voltage:230V,50Hz

3. Full Load Amps: 5.5A

4. Motor speed: 20000 RPM

5. Power plug: C13/14

6. On/off switch: HY12 rocker switch

7. Inlet diameter: 4 in. (100 mm)

8. Number of Inlet: 1

9. Level of noise(dB):Run one motor:75 (72 with hose)

10. Air speed (m3/h): 330(one motor)

11. Capacity (Liter): 120L

12. Diameter(mm): 360

13. Overall Size(mm): 450x370x990

14. Pack dimension(mm):420x420x1000

15. N/G weight(kgs):14/17.5

Main Features:

· Powerful Motor Suction with Cyclone Function

Cyclone air separation guides dust and debris along the drum wall, effectively isolating waste particles from the filters and motor. This core design reduces component wear and significantly prolongs the overall service life of the machine.

· Quick‑Change Hose for Easy Use

Equipped with a quick-change hose connection, enabling quick, simple fitting and removal of the extraction hose.

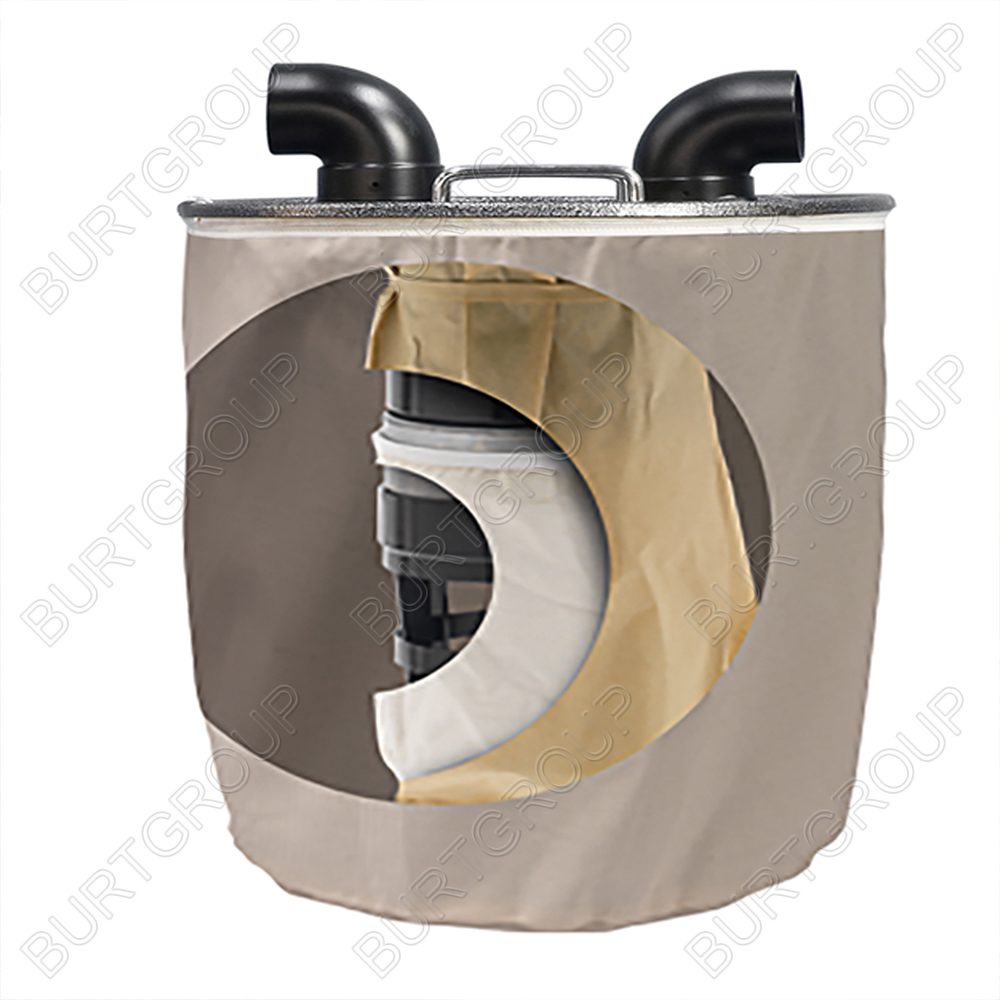

· Multi‑Layer Filtration down to 0.5 Microns

The multi‑layer filter setup traps fine dust particles as small as 0.5 microns. It uses two reusable washable cloth filters together with a paper filter.

· Low‑Noise Operation

Purpose‑built motor exhaust and elbow construction suppress working noise levels. Measured sound levels reach approximately 75 dB with one motor running and 78 dB under dual‑motor operation. Once the extraction hose is attached, noise further drops to roughly 72 dB (single motor) and 75 dB (dual‑motor).
