ZQJ4116C

13" OSCILLATING DRILL PRESS WITH 550W
Main Features

* A good compromise for a small shop without room for two separate devices,it can be used for efficient contour sanding in addition to traditional drilling

* Fitted with a 3-16mm B16/JT33 keyed drill chuck, offers up to 80mm of travel and a drilling capacity of 16mm through mild steel.

* With the oscillating feature, the oscillating stroke length is 19mm

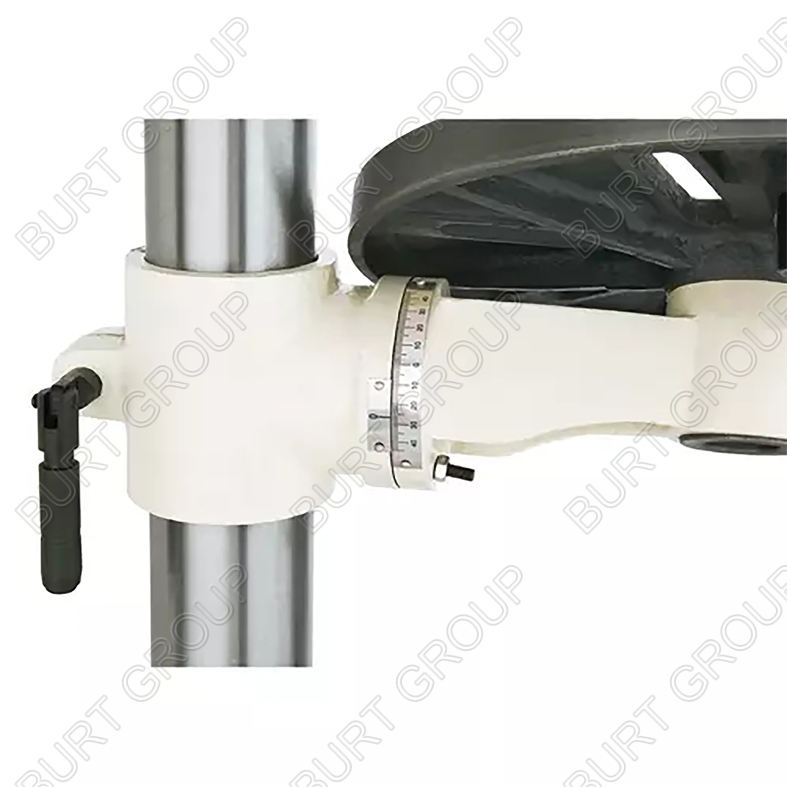

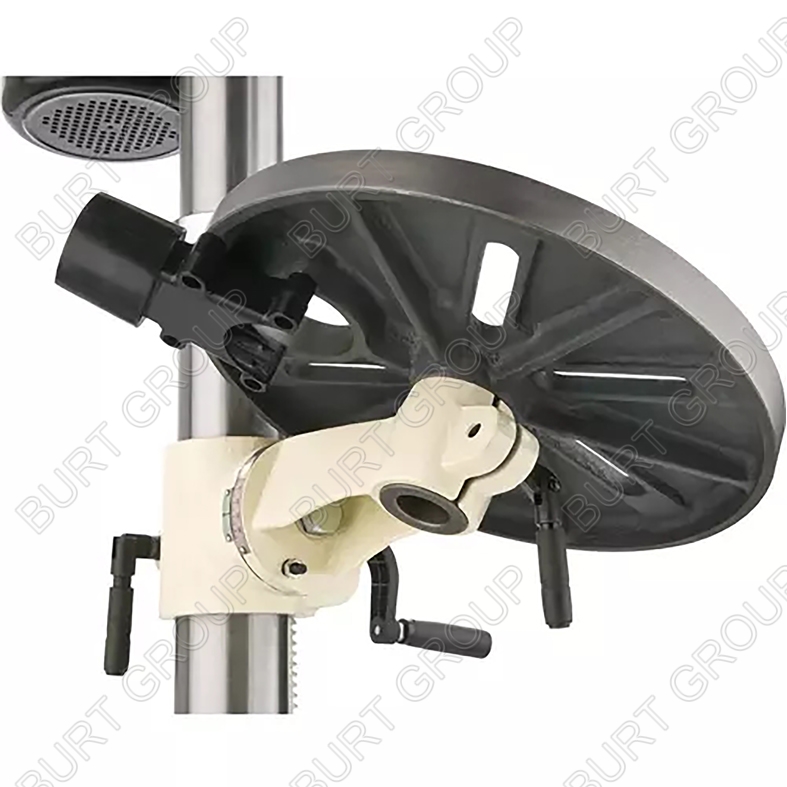

* The 316mm diameter, round table allows for drilling and surface sanding at different angles as it tilts 90° in both directions.

* The table has a clearance hole for use while sanding, by incorporating a 55mm dust collection port

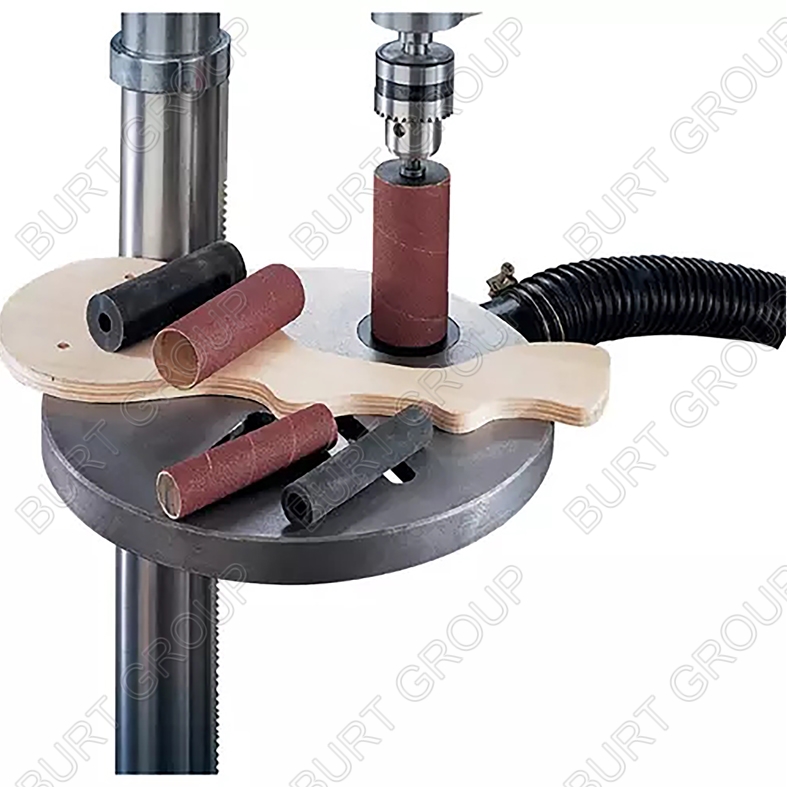

* A sanding drum shaft (dia 12mm,length 110mm) is included as standard

* Not for use with a mortising attachment or mortising bits.

Description Video Documents

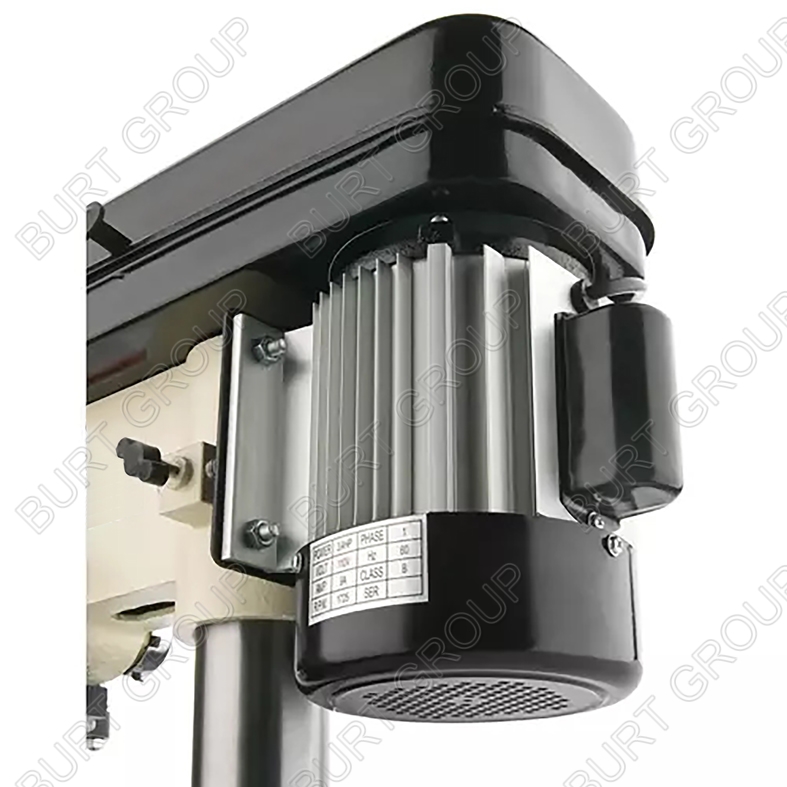

01)  Motor: 550W

02)  Swing: 330mm

03)  Chuck size: 3-16mm

04)  Maximum drilling capacity: 16mm

05)  Taper: B16

06)  Spindle travel: 80mm

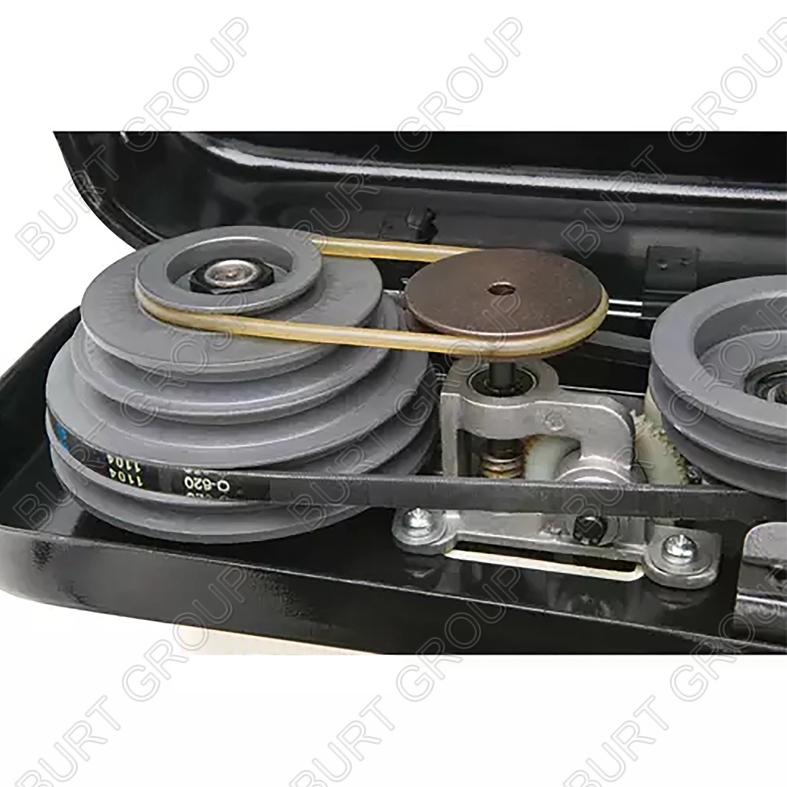

07)  No. of spindle speed:12

08)  Speed range (rpm)/50Hz: 210 to 2580

09)  Speed range (rpm)/60Hz: 250 to 3050

10)  Overall height: 965mm

11)   Column diameter: 70mm,Collar diameter: 55mm,Quill diameter: 40mm

12)   Working table size: dia 316mm

13)  Packing size: 635X406X270mm, 810X663X215mm

14)  Net/gross weight: 26.5/28.5kgs ; 25/28kgs

15)  Units per 20-foot container: 324


Optional fitting:

Sanding Drums Set:1"X4.25"; 1.5"X4.25"; 2"X4.25"
