ZQJ4125W

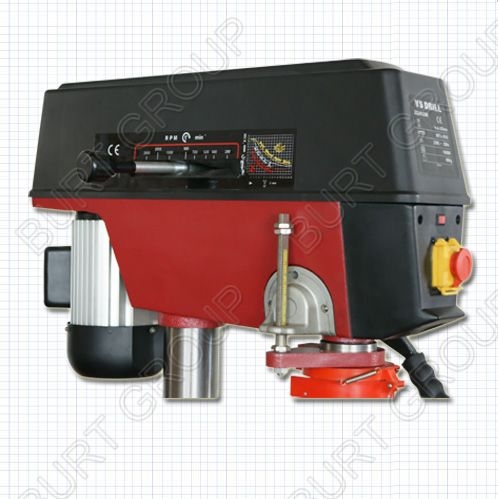

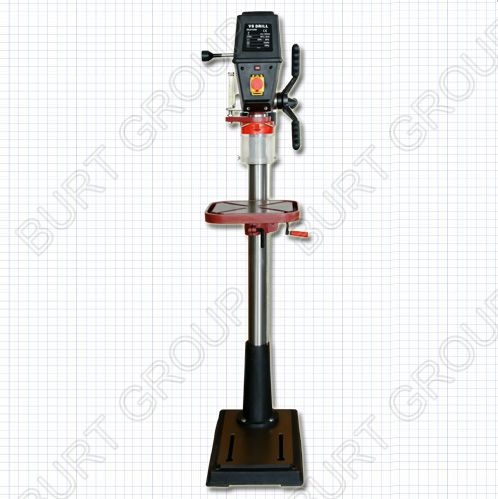

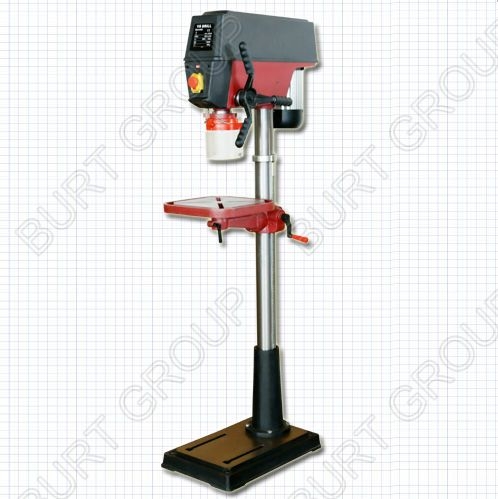

17" DRILL PRESS VARIABLE SPEED WITH 1100W MOTOR
Main Features
Description Video Documents


01)   Motor: 1,100W

02)   Swing: 432mm

03)   Chuck size: 3 to 16mm

04)   Maximum drilling capacity: 25mm

05)   Taper: MT3

06)   Spindle travel: 80mm

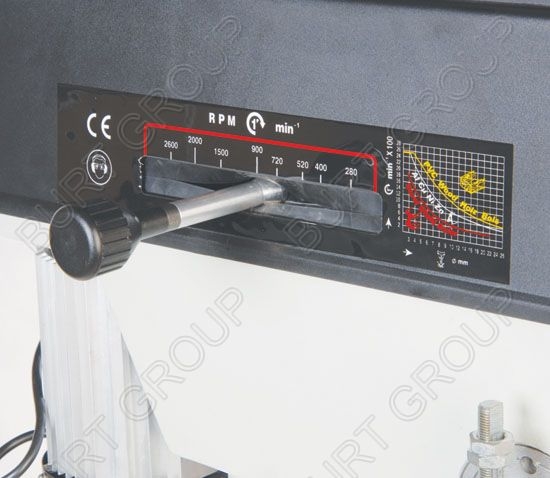

07)   Variable levels of speed

08)   Speed range: 280 to 2,600rpm/50Hz

09)   Speed range: 330 to 3,120rpm/60Hz

10)   Overall height: 1,700mm

11)   Column diameter: 80mm,Collar diameter: 75mm,Quill diameter: 52mm

12)   Working table: 345*345mm (350mm round table optional)

13)  Packing size(mm): 1440x650x320

14)  N.G Weight(Kgs): 100/110

15)  Units/ 20'container: 90
