ZQJ4125K

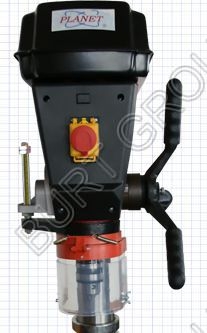

17" NEW TYPE DRILL PRESS 750W BENCH TYPE
Main Features
Description Video Documents


01)  Motor (W): 750W

02)  Swing (mm): 432

03)  Chuck size (mm): 3-16

04)  Max drilling capacity: 25

05)  Taper: MT2/B16

06)  Spindle travel (mm): 80

07)  No. of speeds: 12

08)  Speed range (rpm)/50Hz: 120-2580

09)  Speed range (rpm)/60Hz: 140-3020

10)  Overall height (mm): 1650

11)  Column diameter: 80mm, Chuck guard collar diameter: 75mm,Quill diameter: 52mm

12)  Working table: 345*345mm (350mm round table optional)

13)  Packing size : 1440X650X320(mm)

14)  Weight : 108/117(kgs)

15)  Units /20-foot container: 90
