MCB310HD

10" METAL CUTTING BANDSAW WITH SWIVELED BOW WITH TENSIONMETER
Main Features

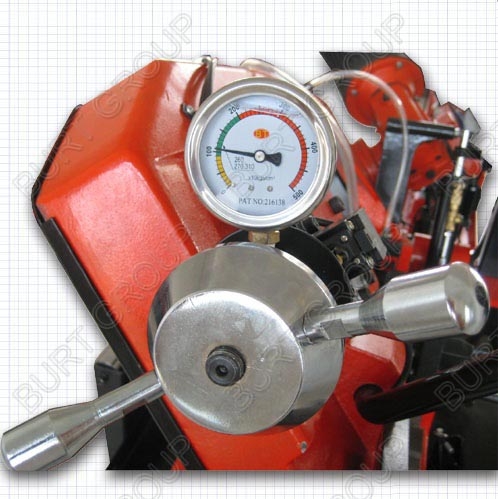

01)   - Band tension indication
02)   - Cast-iron arm

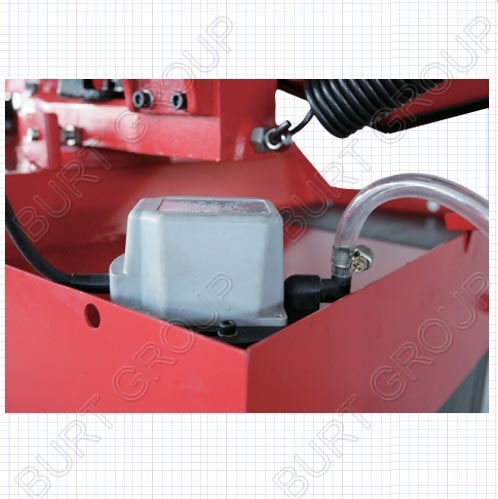

03)   - Cooling
04)   - Synoptic control cabinet
05)   - Rapid-action vice
06)   - Automatic hydraulic tilting with rotary arm

Description Video Documents


01)     Motor: 1.5KW / 0.75KW (380V); 1.5KW(230V)
02)     Blade size: 2,715 x27x0.9mm
03)     Blade speed(50HZ): 72/36m/min(380V); 72m/min(230V)
04)     The bow swivel degree: -45 ~ +60 degrees
05)     Cutting Capacity at 90°: ●250mm  240x240mm ▆310x240mm
        Cutting Capacity at 45°: ●200mm 170x170mm ▆190x170mm
        Cutting Capacity at 60°: ●120mm  95x95mm ▆120x95mm
        Cutting Capacity at 45°(L): ●150mm  130x130mm ▆170x90mm
06)     N.G weight: 341/394kgs
07)     Packing size(mm): 1540x700x1050(body),1100x760x180(stand)
08)     Units/20'Container:  22pcs

* With saw blade tension meter supplied as standard.
