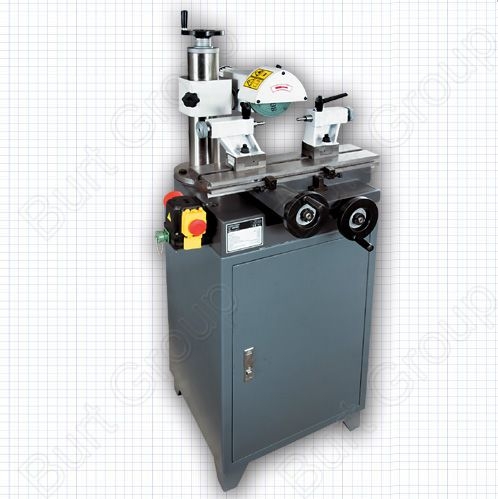

TS125

TOOL SHARPENER MAXIMUM GRINDING DIA 125MM
Main Features

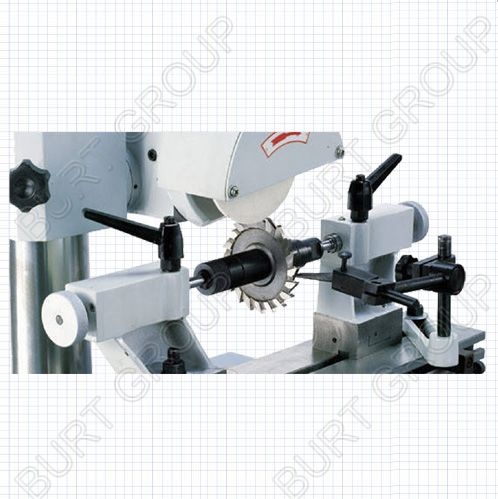

For grinding of various tools, e.g. drills, moulding cutters, cutting chisel
Undercarriage serially equipped with tool support
Comprehensive accessories included in supply
Solid construction for free-of-vibrations run
Ergonomically arranged control elements

Description Video Documents


01)   Workpiece diameter max.:175 mm
02)   Spike width:320 mm
03)   Table dimensions:535 x 130 mm
04)   Table lenghtwise movement:320 mm
05)   Table cross traverse movement:170 mm
06)   Grinding head vertically tiltable:-40° bis +40°
07)   Grinding head horizontally tiltable:-50° bis +50°
08)   Speed range of grinding spindle:2800 rpm
09)   Motor power:0.18 kW
10)   N/G Weight:266/208kgs
11)   Packing size:1090x720x930mm
12)   Units/20' Container:32pcs

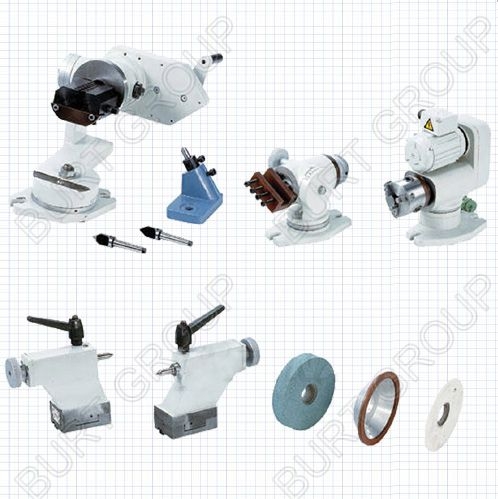

Standard accessories:
Undercarriage
2 tailstocks
Clutch stop
Adjustable table end stops
2 standard spikes 60°
2 Half-spikes 60°
1 Cup washers 125 x 45 x 32 mm
1 Diamond cup washer 125 x 32 x 32 mm
1 Grinding wheel 125 x 25 x 32 mm
1 Sanding disk

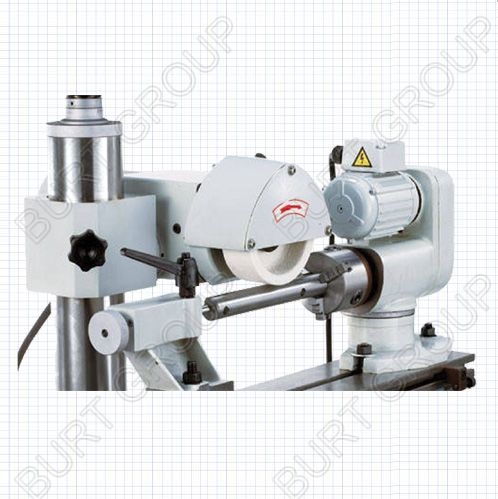

Drive unit with 3-jaw chuck diam. 80 mm

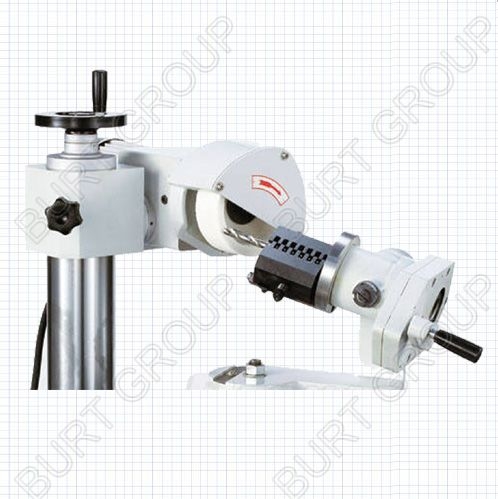

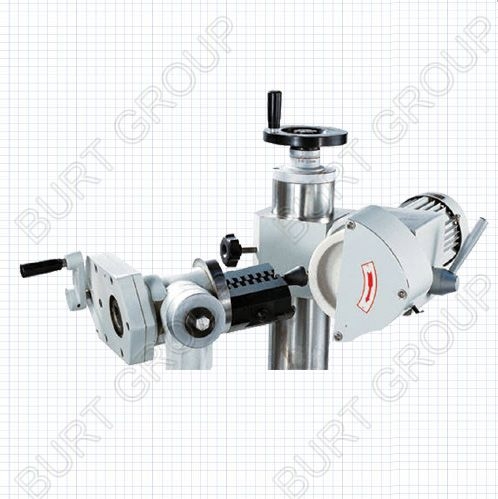

Spiral drilling and milling device

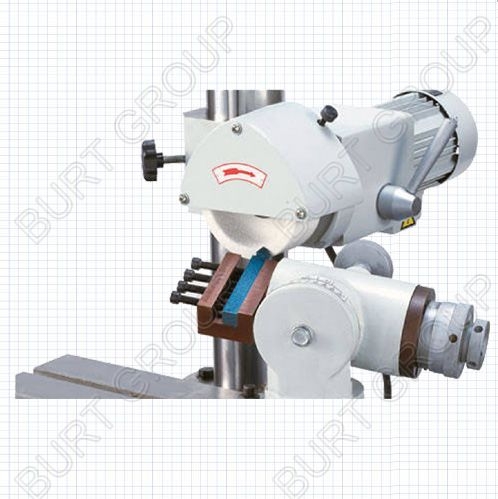

Cutting chisel
Diamantabziehstein
