HBS710P

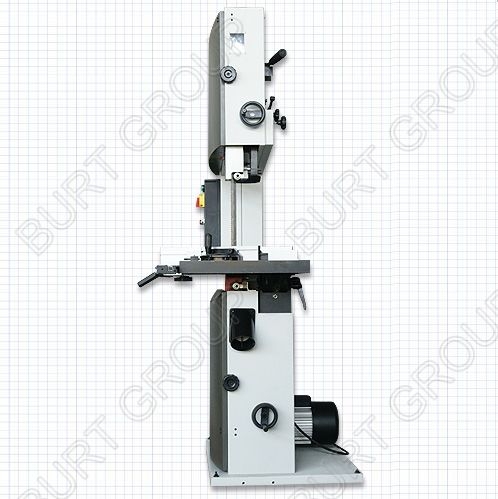

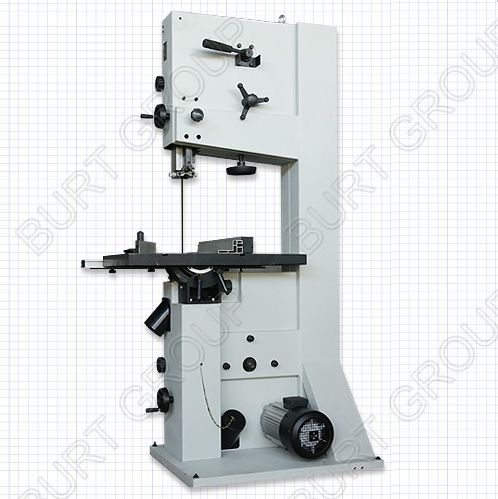

DELUX 28" WOODWORING BANDSAW
Main Features

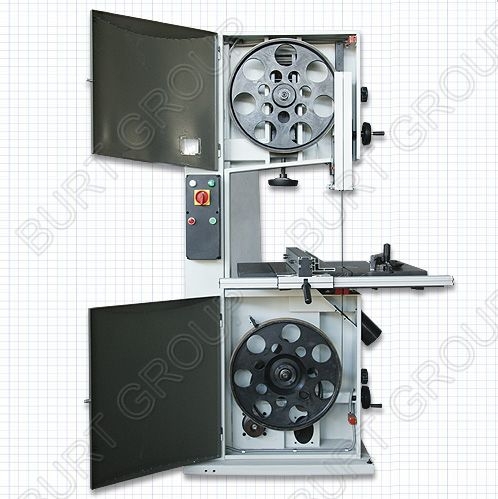

* Cast iron upper and lower wheels with braking motor fitted for prefect working performance
* Parallel fence with micro adjustment function and double reading by magnifier to position 2 sides of the blade of saw and so adapt itself to all the cuttings.
* Two windows to show the saw blade tension and running position
* Big size working table area 1100x700mm totally for prefect preformance.
* Arc shape doors for modern appearance
* Additional fence for thin piece facilitates you the access and the holding of your pieces of samll widths.
* Quick clamping lever and blade tension adjustment on the back of the machine.


Description Video Documents

01)    motor in 230V:3000W
02)    motor in 400V:4000W
03)    saw blade size:5020X19~38.1mm
04)    saw blade speed:26m/s
05)    table size:900x700mm
06)    extension table size:200x700mm
07)    table tilt:0~45degree
08)    wheel diameter:710mm
09)    cutting width:700mm
10)    cutting depth:430mm
11)    new/gross weight:382/442kgs
12)    packing size:2250x745x1145mm
13)    units per 20-feet container::14sets
