HBS510P

DELUX 20" WOODWORING BANDSAW
Main Features

* Cast iron upper and lower wheels with braking motor fitted for prefect working performance

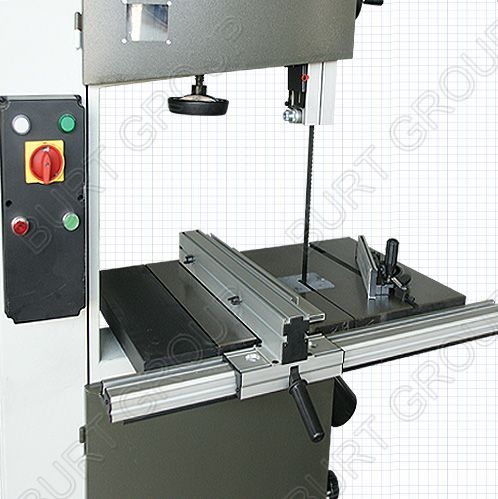

* Parallel fence with micro adjustment function and double reading by magnifier to position 2 sides of the blade of saw and so adapt itself to all the cuttings.
* Two windows to show the saw blade tension and running position
* Big size working table area 790x500mm totally for prefect preformance.
* Arc shape doors for modern appearance
* Additional fence for thin piece facilitates you the access and the holding of your pieces of samll widths.
* Quick clamping lever and blade tension adjustment on the back of the machine.


Description Video Documents

01)    motor in 230V:3.5HP
02)    motor in 400V:3500W
03)    saw blade size:4100x19~38.1mm
04)    saw blade speed:22m/s
05)    table size:640x500mm
06)    extension table size:150x500mm

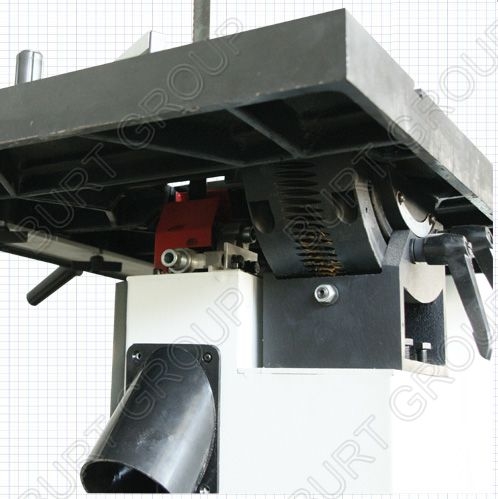

07)    table tilt:0~45degree
08)    wheel diameter:510mm
09)    cutting width:500mm
10)    cutting depth:350mm
11)    new/gross weight:280/310kgs
12)    packing size:930x725x2140mm
13)    units per 20-feet container::18sets
