WS500N

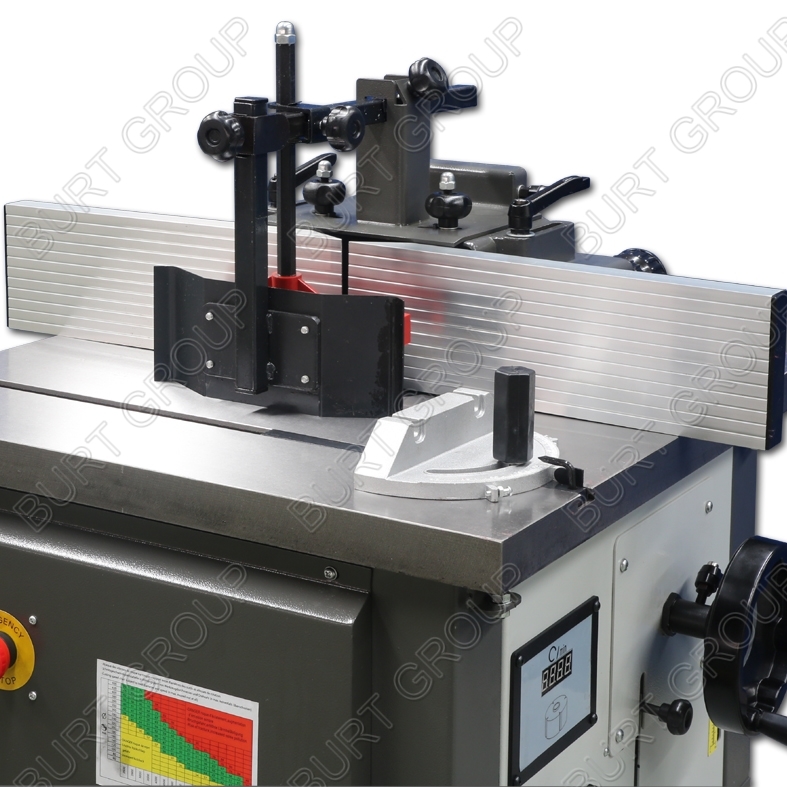

SPINDLE MOULDER WITH FULL CAST IRON TABLE + 4 SPINDLE SPEEDS
Main Features

Complete cast iron table with T slot and mitre fence + Alu Fence with 100mm dust outlet + one piece 30mm spindle + 4 speeds + two parts body


Description Video Documents

01)   Motor power: 1500W
02)   Spindle speed(50HZ): 1400/4000/6000/8000RPM
03)   Spindle speed(60HZ): 1680/4800/7200/9600RPM
04)   Cast iron table size: 600x600 mm
06)   Table counterbore dia: 170mm
07)   Table inserts dia:170/75; 170/105mm
08)   Floor to Table height: 800 mm
09)   Spindle diameter: 30 mm
10)   Spindle travel: 110 mm
11)   Max tooling dia: 150 mm
12)   Exposed Spindle Length: 100mm
13)   Weight: 115/145kgs
14)   Packing size: 1150x720x565mm
15)   20’ Container loading: 64pcs

Optional fitting:
1) Interchangable 30 mm + router bit cutter spindles with two collets (8mm+12mm or 1/4"+1/2")
2) Left & right running function
3) Digital speed readout function
4)Ring fence WS-GTA


More Accessories
