* Constructed from cast iron and powerful 1200W universal DC motor with electronic speed control that provides full torque at all speeds.
* Magnetic control box can be positioned where required for quick controlling.
* Ball-bearing construction for smooth, precise spindle operation. Three belt ratios for high torque.

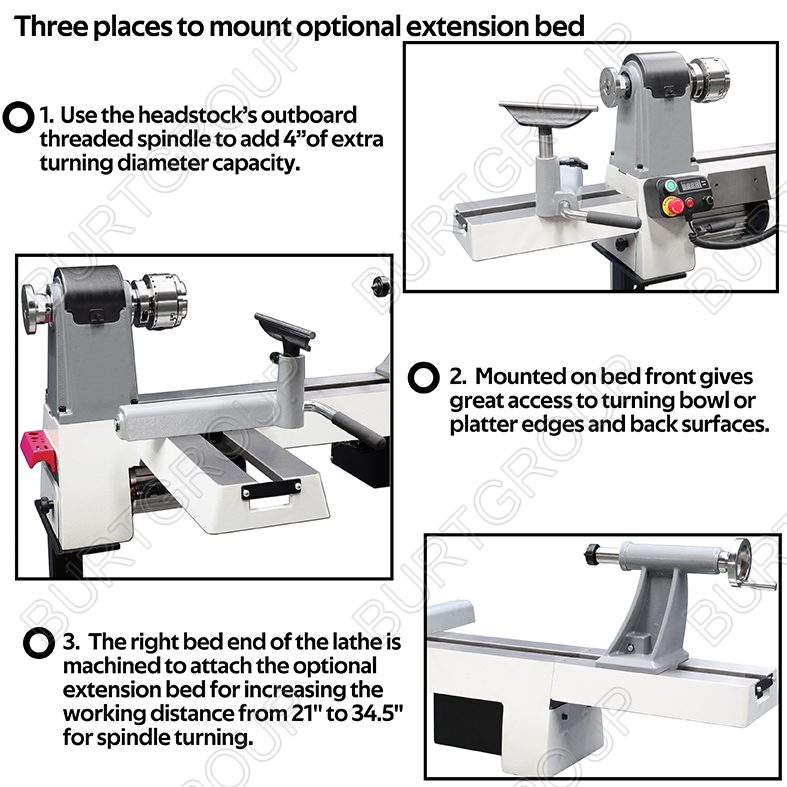

* Additional three machined surfaces to mount optional extension bed increases turning capabilities:
The headstock's outboard threaded spindle to add 4”of extra turning diameter capacity.
The right bed end for increasing the working capacity from 21" to 34.5".
The bed front gives great access to turning bowl or platter edges and back surfaces.
* Magnetic control box with digital speed display, Forward/Reverse running function.
* 24 Indexing positions function.
01). Motor power (w):1200W（DC with brush）
02). Motor Running Direction: Forward & Reverse
03). Spindle speed (rpm): L:60-720/M:130-1700/H:300-3550
04). Spindle thread: M33X3.5 (others for optional)
05). Spindle and tailstock taper: MT2
06). Indexing Positions: 24 Positions
07). RAM Travel: 4"(100mm)
08). Distance between centers (mm) : 535 (21")
09). Face plate diameter (mm) : 80 (3”)
10). Swing over bed (mm) : 368 (14-1/2")
11). Swing over tool rest (mm) : 268 (10.5")
12). Tool rest working width (mm) : 204 (8")
13). Packing size (mm) : 980X300X575;
14). N.G. weight (kgs) : 56.5/69
15). Units/20' container: 172pcs
** Optional Extension bed 343mm (13.5 inch) Model NO.: MC1421-EXS
