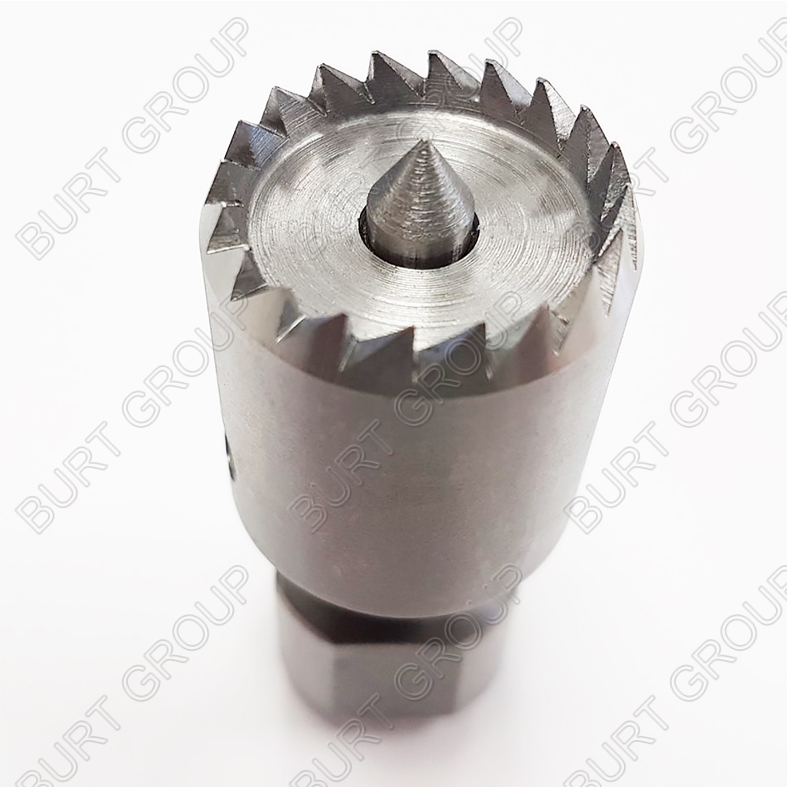

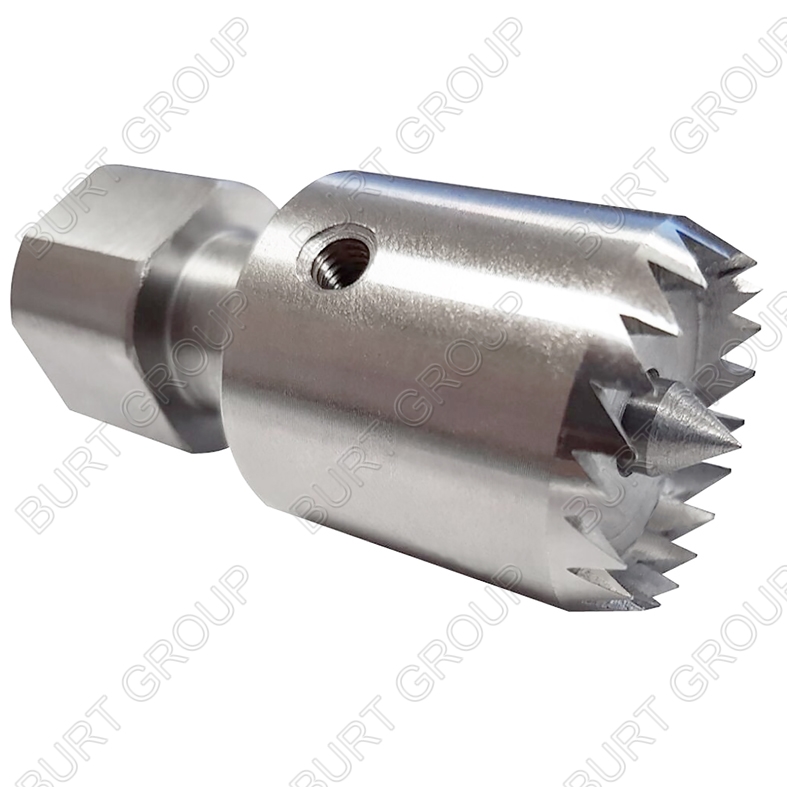

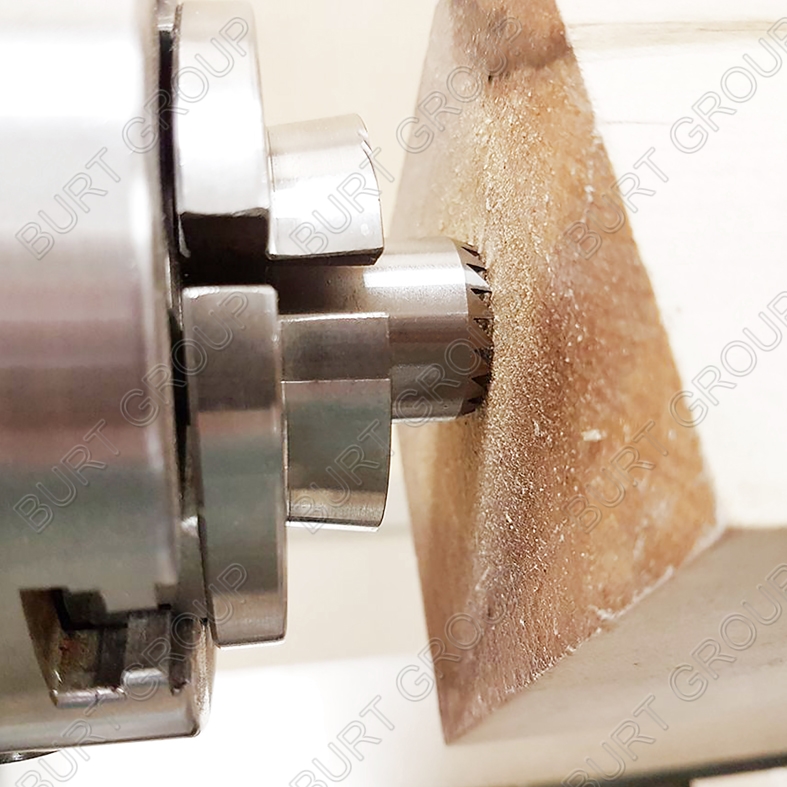

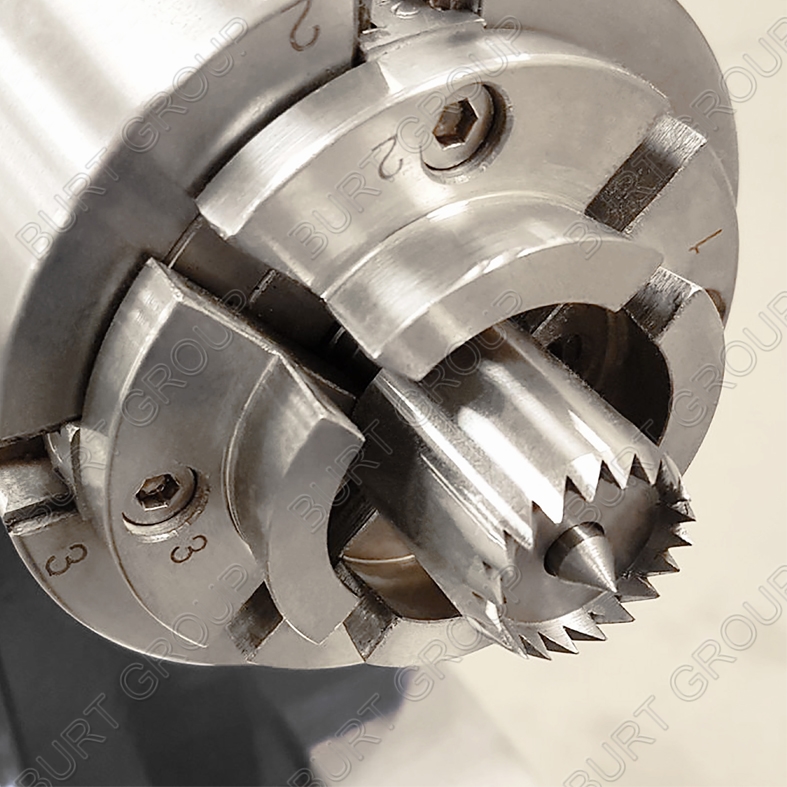

*Turn spindles without removing your chuck from the lathe using this chuck drive centre.
*The sharp point in the centre is spring loaded and retracts as pressure is applied from the tail stock.
*The ring of 20 sharp teeth then create an extremely powerful grip.
Diameter of Crown Teeth 20mm (3/4″)
Diameter of body 25mm (1″)
Overall Length 55mm (2″)

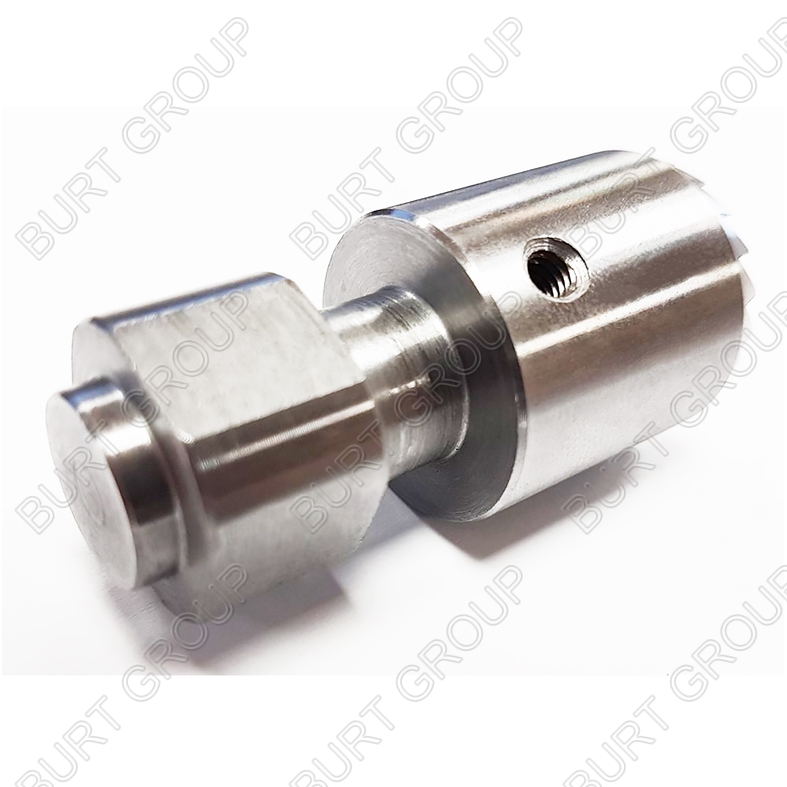

Diameter of Chuck Insert End 19mm (3/4″)
Width of Jaw Clamping Channel 9mm (3/8″)
Can be matched with our 25mm Revolving crown centre, for spindle turning.
For use with CK-2.75Z, CK-3.75Z,CK-4.5Z,CK-5.5Z and CK-3.75ZN plus most other makes.
