01)Motor power - main saw: 2200W

02) Motor power - spindle moulder: 1500W

03) Motor power – planer: 2000W

04) Motor speed (rpm): 2850

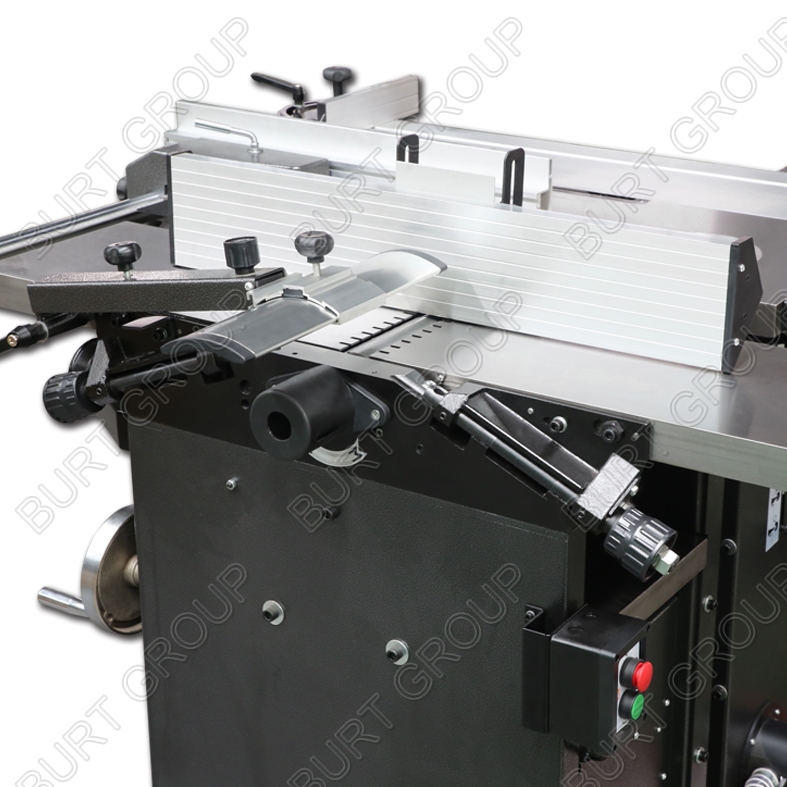

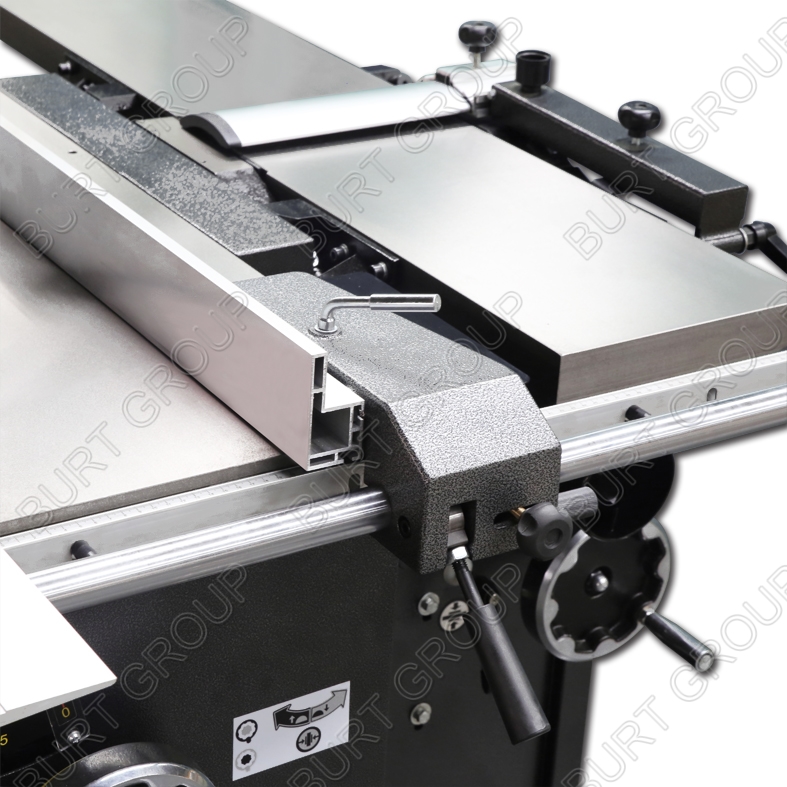

PLANNER & THICKNESSER:

01) Max. planing width (mm): 250

02) Max planing depth (mm):5

03) Cutter block speed (rpm) :4000

04) Number of cutting knives:3

05) Fence tilt: :0°～ 45°

06) Planer table size (mm) :1050x250

07) Cutter block diameter (mm):75

08) Feeding block diameter (mm):32

09) Thicknessing table size (mm):600x250

10) Max. thicknessing width (mm) :250

11) Max. thicknessing depth (mm) :2.5

12) Feed speed (m/min) :4.8

13) Max. thicknessing height (mm) :180

14) Dust chute diameter (planer and thicknesser) (mm) :100

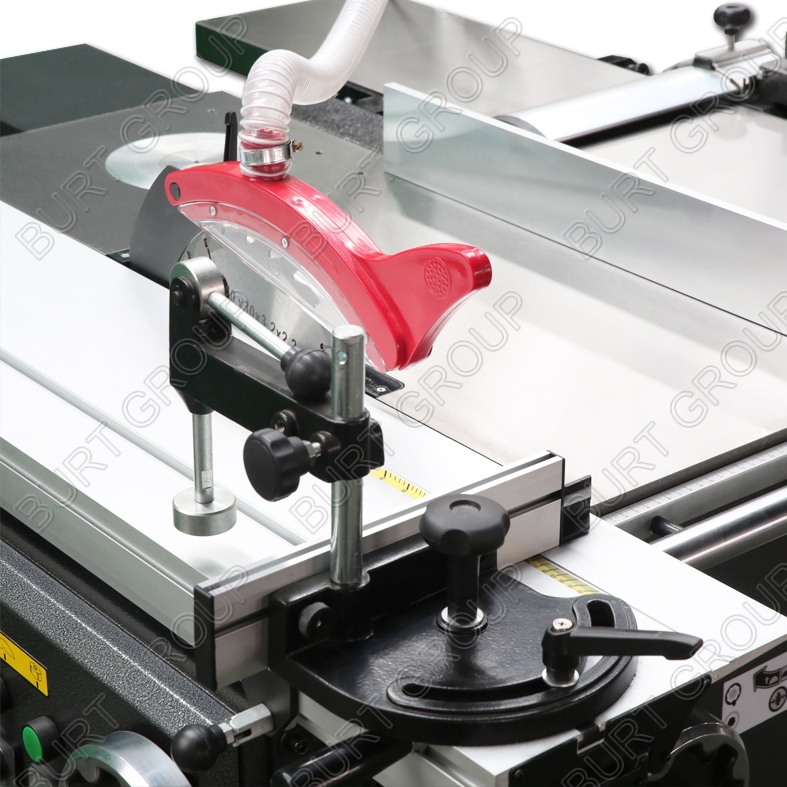

SAWING:

01) Main blade size:Ф254xФ30x3.2x2.2x24T

02) Main blade speed (rpm) :4750

03) Max cutting height (mm) :80

04) Cutting height for blade 45° (mm):60

05) Main/scoring blade tilting range:DX 0～45°

06) Table size usabe for saw (mm) :1300X1620

07) Dust chute diameter - saw (mm) :100

08) Length/travel for sliding table (mm) :1300/1580

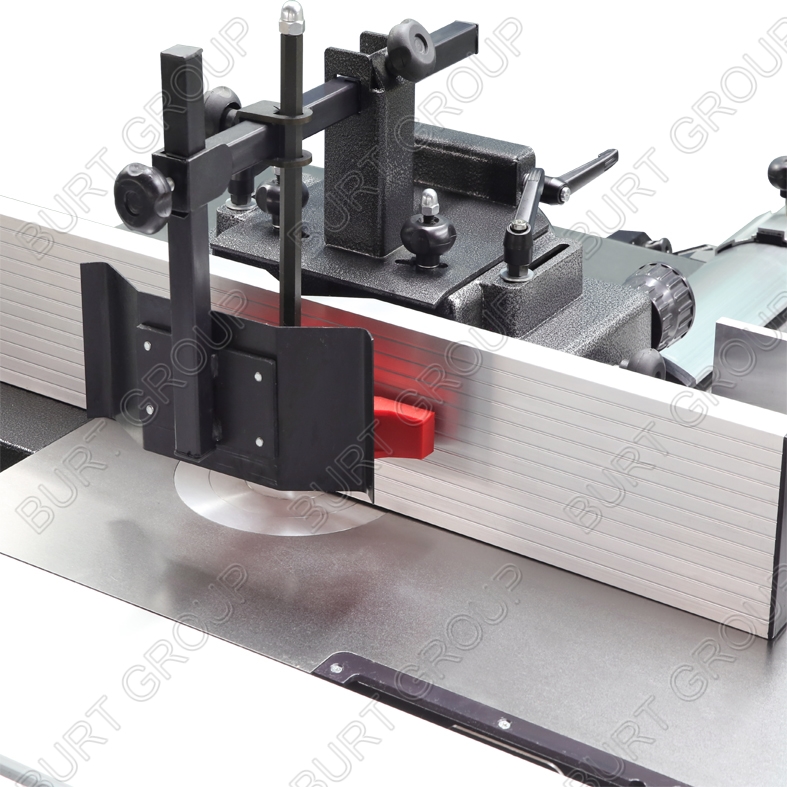

SPINDLE MOULDER:

01) Max moulder cutter diameter (mm) :19.05/30/32

02) Moulder Spindle travel:110

03) Moulder cutter speed (rpm):1400/4000/6000/8000

04) Table size usable for moulder (mm) :1300X1100

05) Max tooling dia above table (mm):150

06) Max tooling dia below table (mm):150

07) Exposed spindle length (mm):103

08) Moulder guard dust chute diameter (mm) :100

09) Max tool diameter (mm):16

10) Max mortising depth (mm) :80

11) Lateral stroke (mm) :140

12) Vertical stroke (mm) :85

MISCELLANEOUS:

01) Packing size (mm): 1380x1150x1040

02) N.G. weight without mortiser (kgs):340

03) Units/20' container:16
