Specifications:

01)   Motor: 3,000W 02)   Planing table size: 1600x410mm
03)   Thicknessing table size: 750x410mm
04)   Cutter block diameter: 95mm
05)   Feeding block diameter: 42mm
06)   Cutting knives: four
07)   Fence tilt: 0 to 45 degrees
08)   Dust chute diameter: 100mm
09)   Maximum planing width: 410mm
10)   Maximum thicknessing width: 410mm
11)   Maximum cutting depth: 5mm
12)   Maximum thicknessing height: 220mm
13)   Cutter block speed: 4,300rpm
14)   Feed speed: 6m/min
15)   Packing size: 1,750X780X1040
16)   Net/gross weight: 334/464kgs
17)   Units per 20-foot container: 16

Optional Fitting:

* With front Decorative cover readout optional.
* With Mechanical Digital Display for thicknessing height optional.

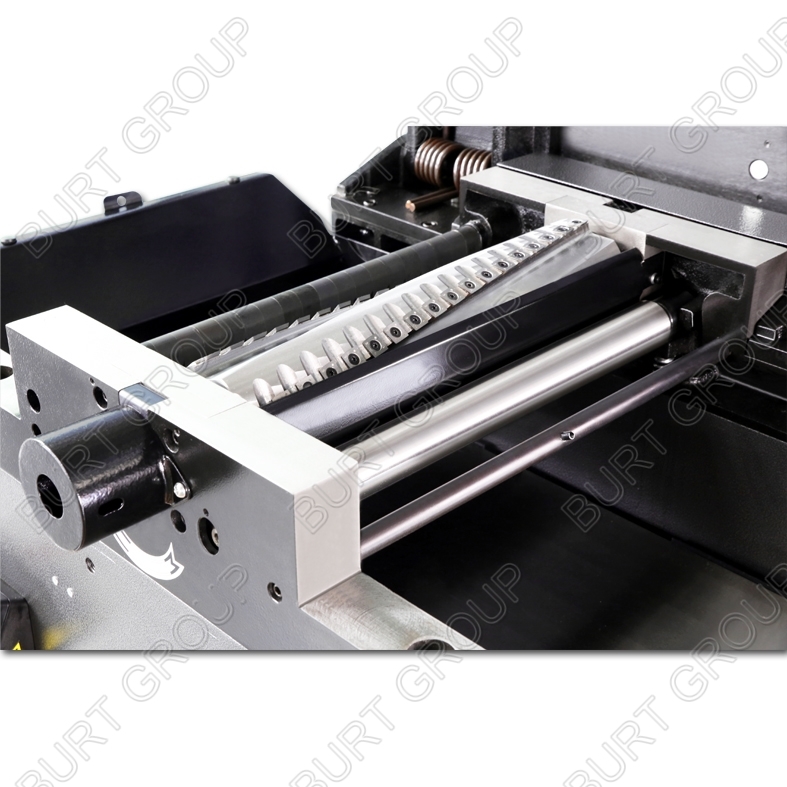

* With Spiral cutter  and Cast Iron Handwheel as optional fitting.
