Specifications:
01) Motor power (W) - planer: 3000W
02) Motor speed (rpm): 2800
03) Max. planing width (mm): 310
04) Max planing depth (mm): 3
05) Cutter block speed (rpm): 4500
06) Number of cutting knives: 3

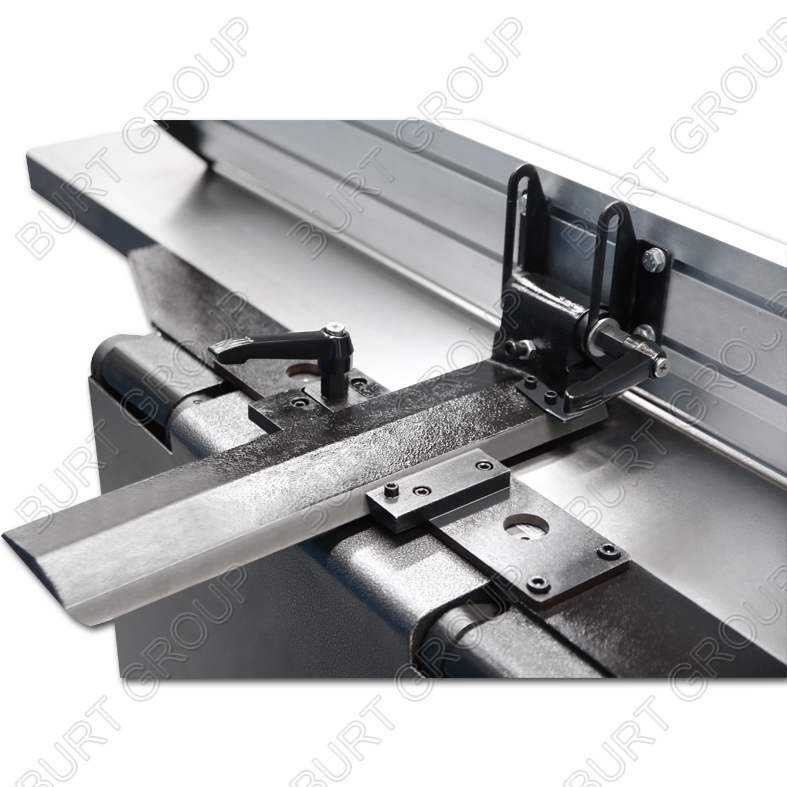

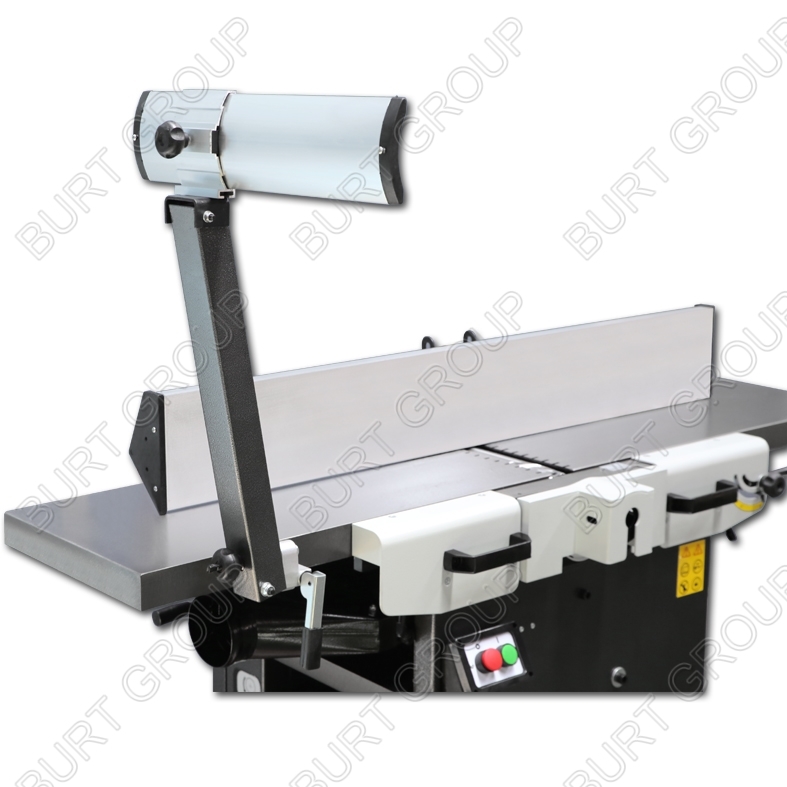

07) Fence size: 1100x152,
08) Fence tilt: 0°～ 45°
09) Fence positive stop: 0°/45°
10) Jointer table size (mm): 1400x310
11) Table height from floor: 850
12) Cutter block diameter (mm): 75
13) Feeding block diameter (mm): 32
14) Thicknessing table size (mm): 600x310
15) Max. thicknessing width (mm): 308
15) Full width cutting depth: 3mm
17) Max. thicknessing depth (mm): 4mm
18) Feed speed (m/min): 6
19) Max. thicknessing height (mm): 5-230

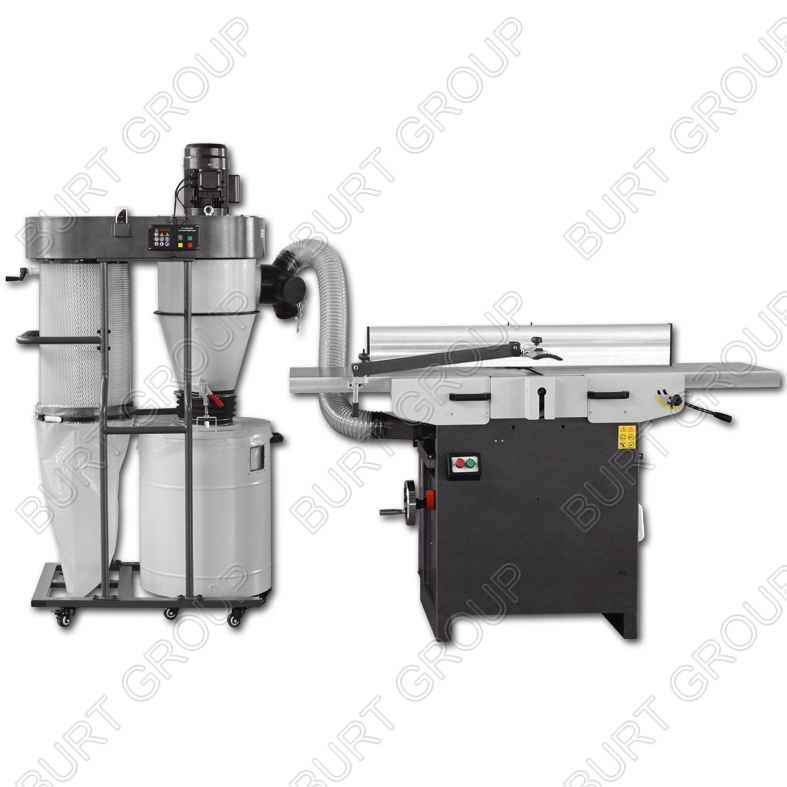

20) Dust chute diameter (planer and thicknesser) (mm) : 100
21) Max tool diameter (mm): 16
22) Max mortising depth (mm): 80
23) Lateral stroke (mm): 140
24) Vertical stroke (mm): 85

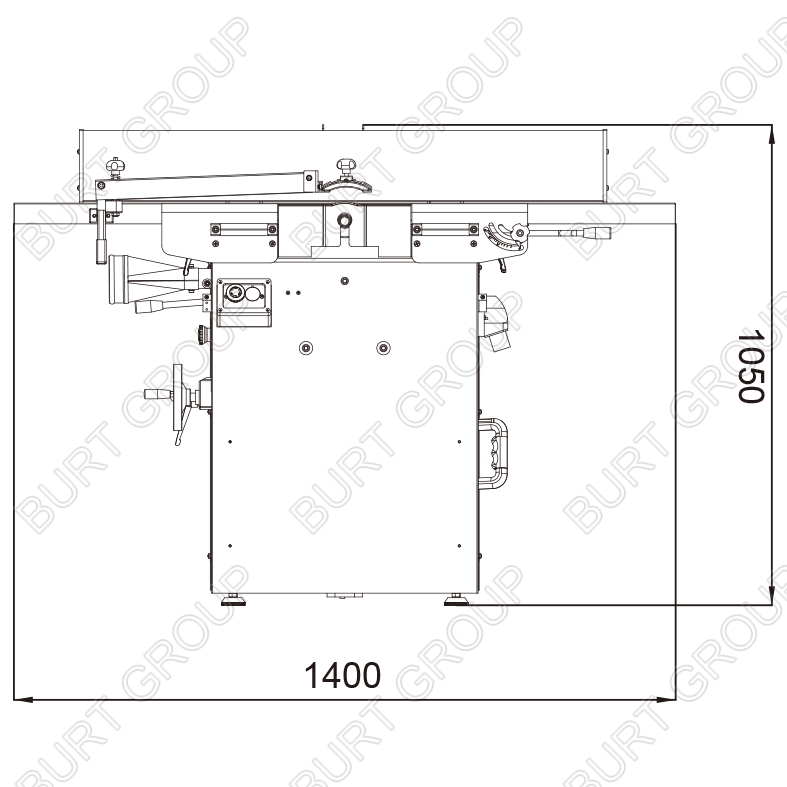

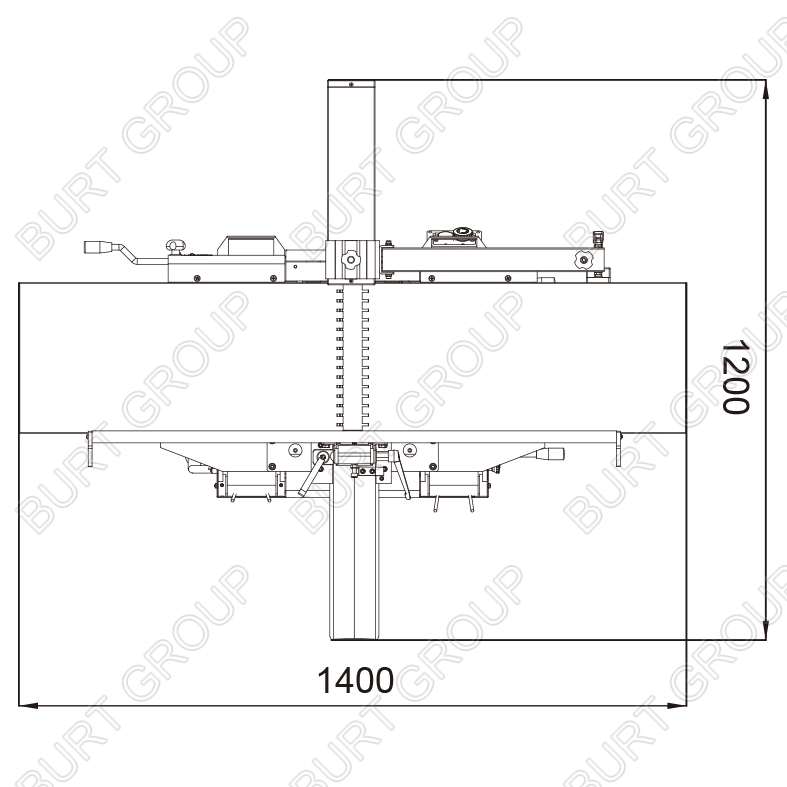

25) Packing size (mm): 1450X640X950
26) Net weight without mortiser (kgs): 208KG
27) Units/20' container: 26

Optional Fitting

* With front Decorative cover readout optional.

* With Mechanical Digital Display for thicknessing height optional.

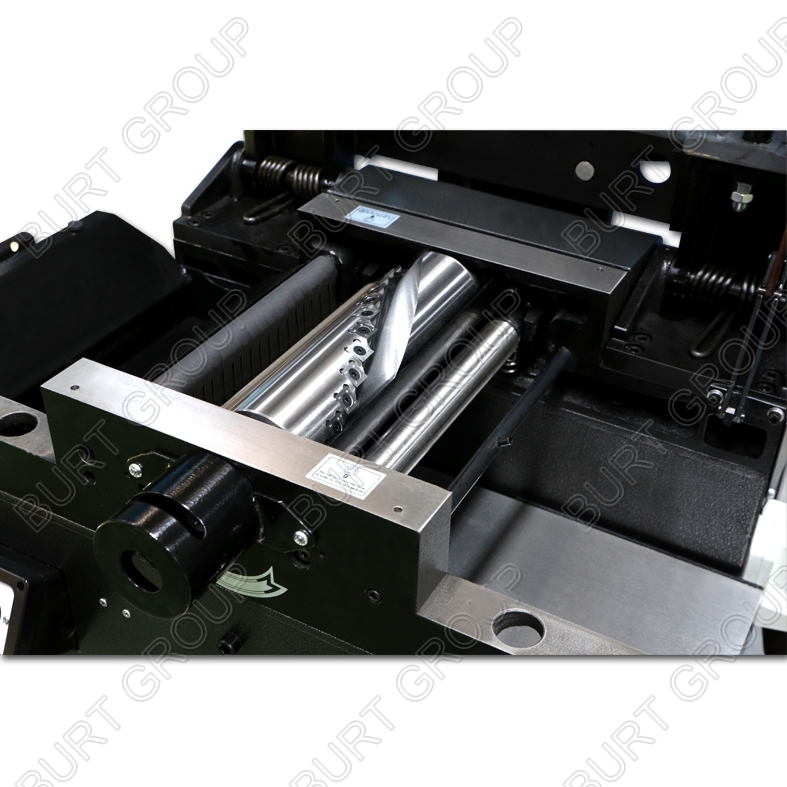

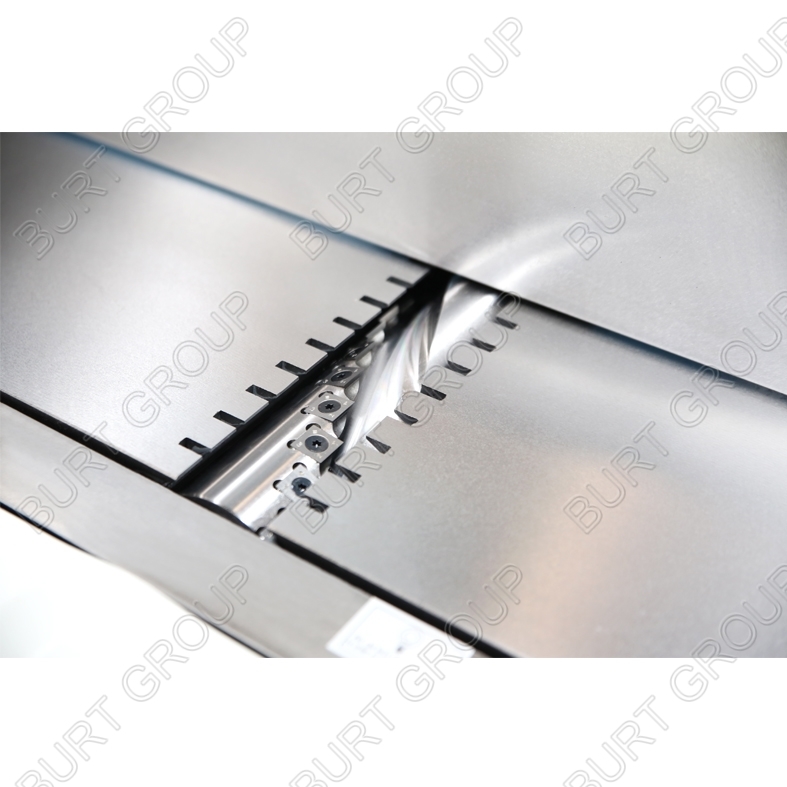

* With Spiral cutter  and Cast Iron Handwheel as optional fitting.
