MC1624VF

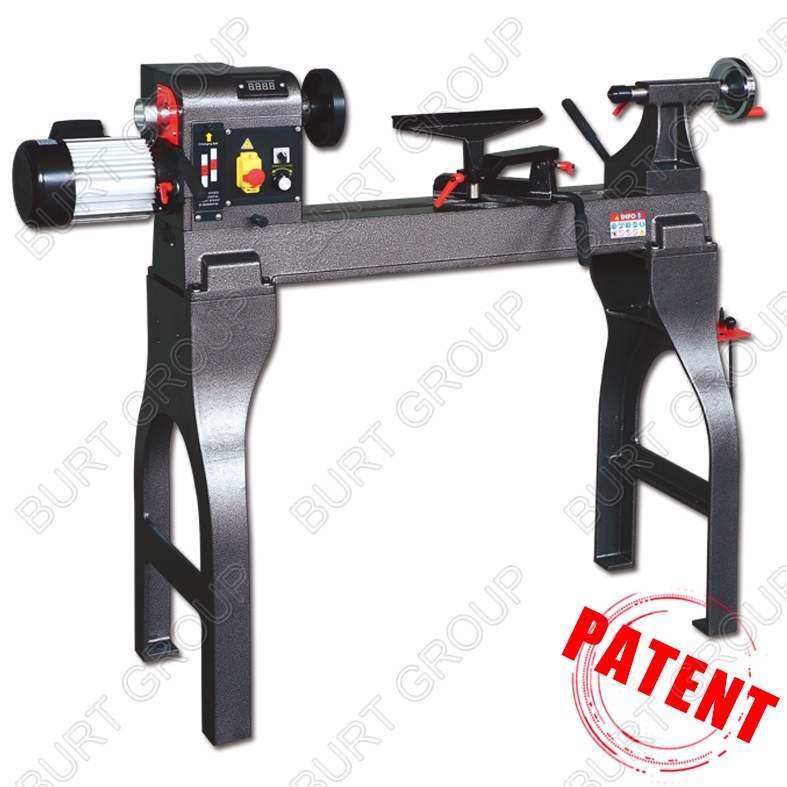

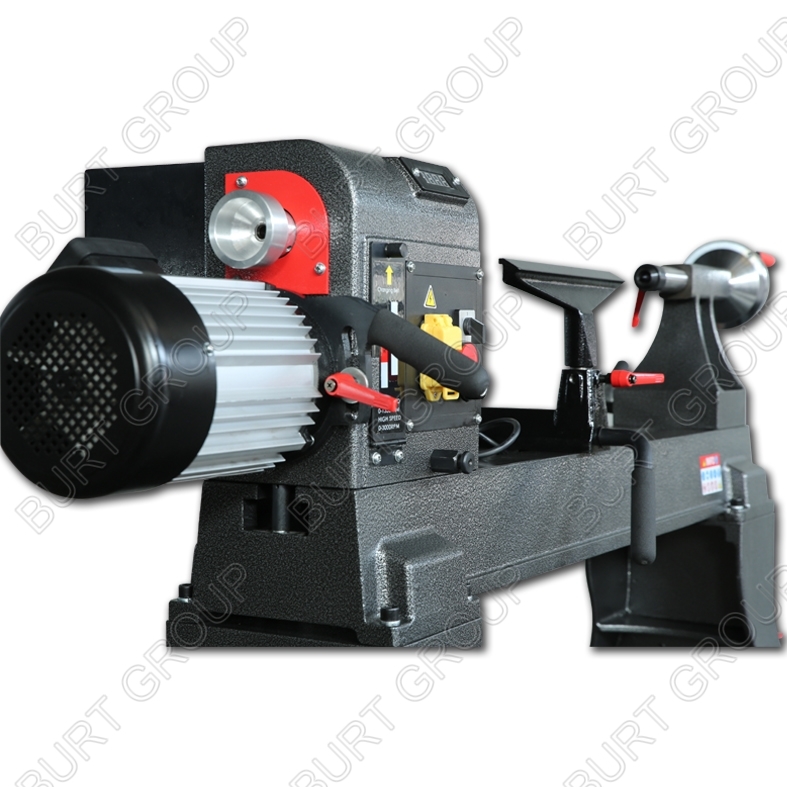

MC1624VF ELECTRONIC VARIABLE SPEED 16"x24" WOOD LATHE WITH TAIWAN DELTA INVERTER 1500W
Main Features

* Electronic Inverter Variable Speed Lathe with TAIWAN DELTA brand Inverter
* Two belt ratios for high torque when turning large diameters

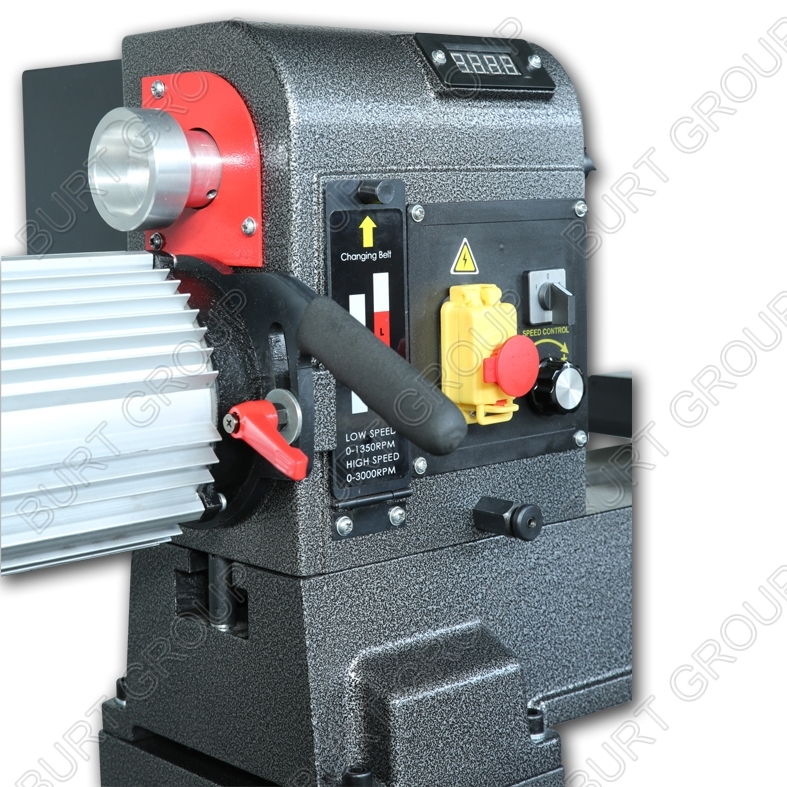

* Digital speed display on headstock
* Quick belt change construction headstock
* All cast iron construction for high stability and vibration free running
* Cast iron stand with provision for a shelf

* 36 Indexing Positions Function

* With Forward/Reverse running function


Description Video Documents

Specifacations:

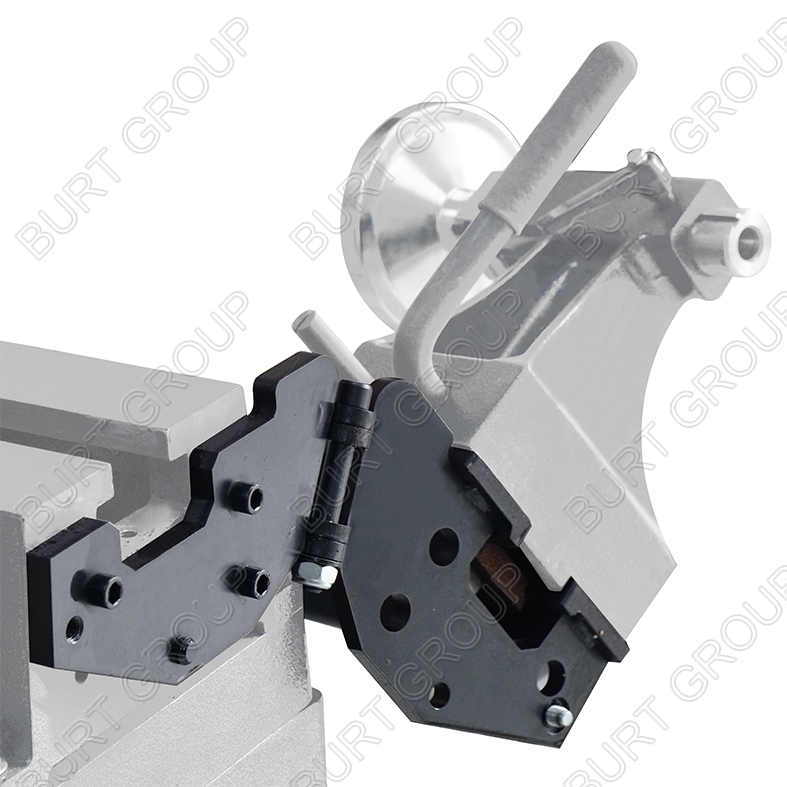

01)    Description: 16"x24" wood lathe with Rotatable headstock
02)    Motor(Input W):  1500W (with 1500W inverter)
03)    No. of Speed: Variable
04)    Spindle Speed: 100~1350rpm Low Speed, 220~3000rpm High Speed
05)    Swing Over Bed: 408mm(16")
06)    Distance Between Centers: 24.4" (620mm) or 47" (1200mm) with optional extension bed
07)    Drive Spindle: M33X3.5 or 1”8RH thread
08)    Headstock and Tailstock Taper:MT2#
09)    Face Plate: 152mm(6")

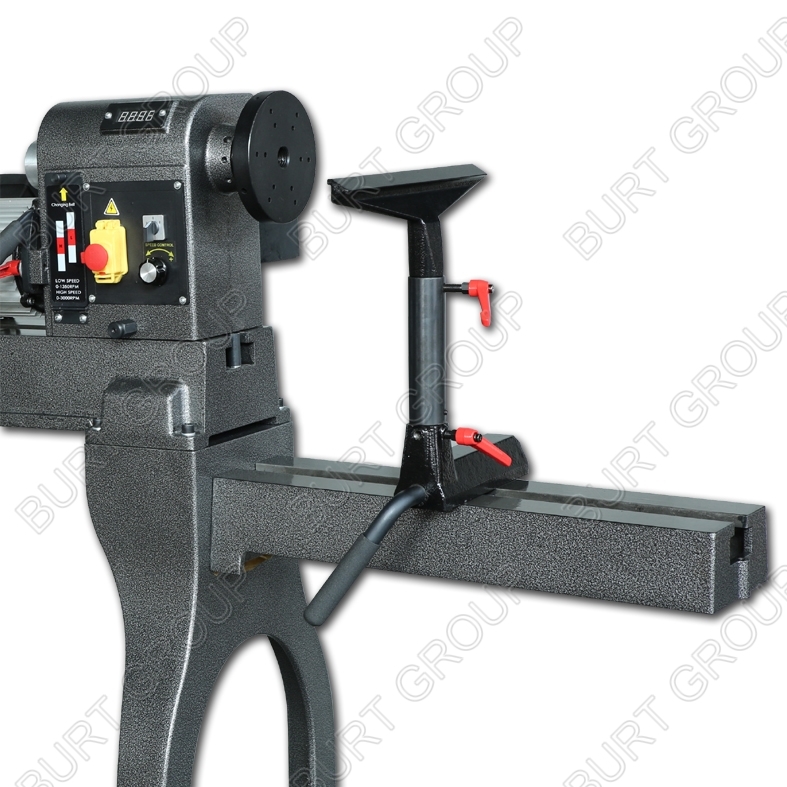

10)    Tool Rest: 300mm(12") (Toolrest Extension as optional)
11)    Packing Size(mm): 1130X580X550
12)    NW/GW: 146/176KGS
13)    Units per 20-foot container: 80pcs

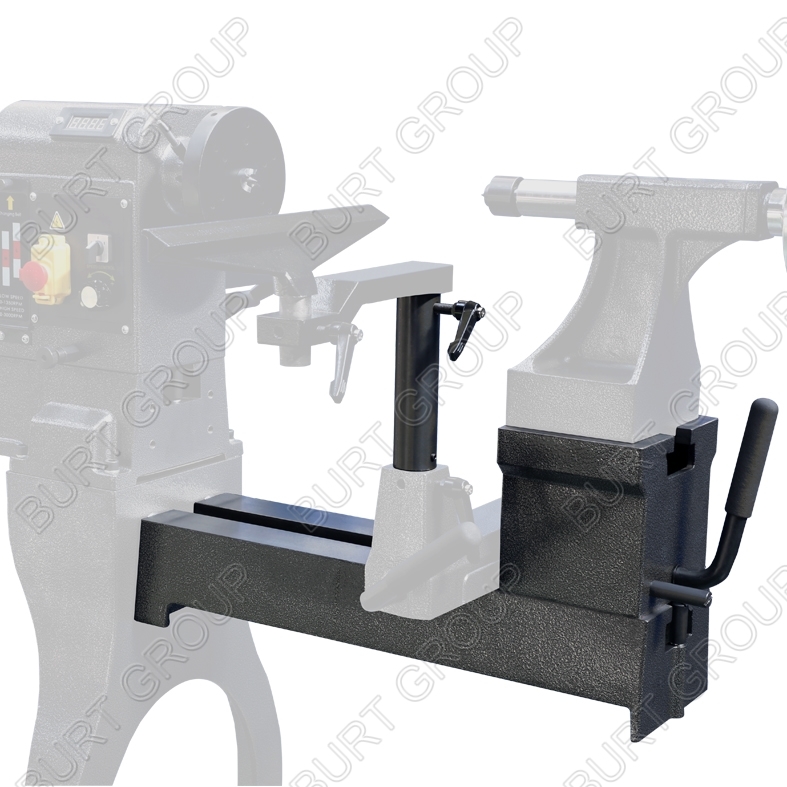

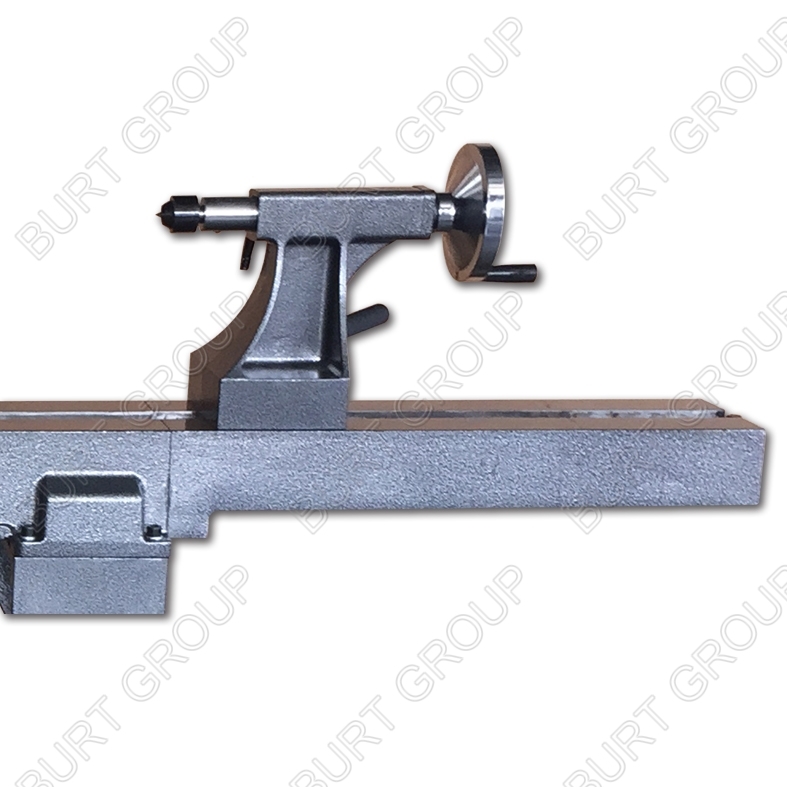

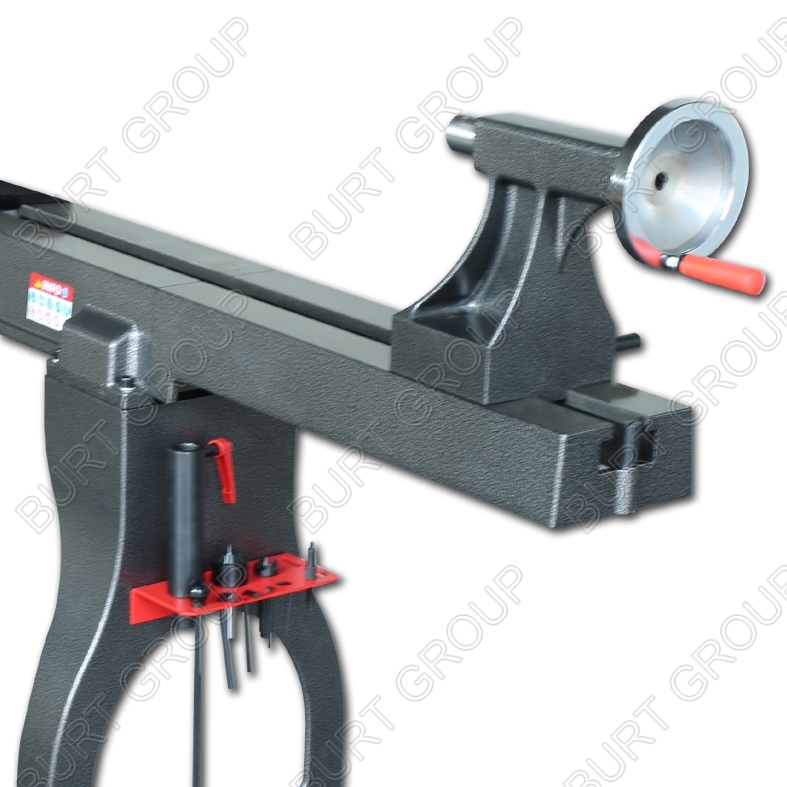

* With extra extension bed MC1624-EX+OTR available as optional accessory, which could extend the total working length to 1200mm(47") or Extend the bowl turning capacity to 720mm(28")

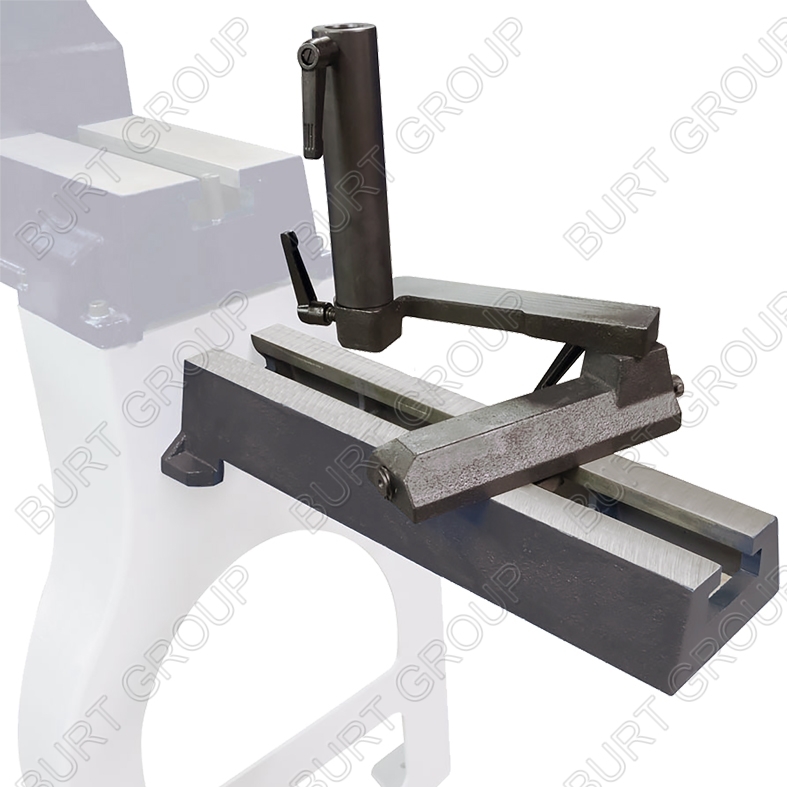

*Toolrest Extension as optional

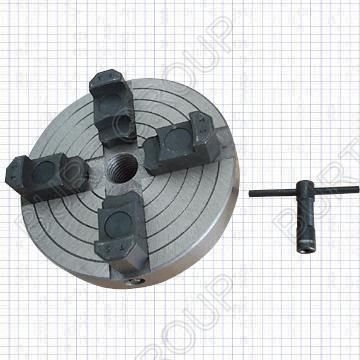

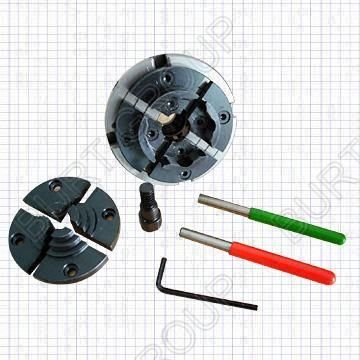

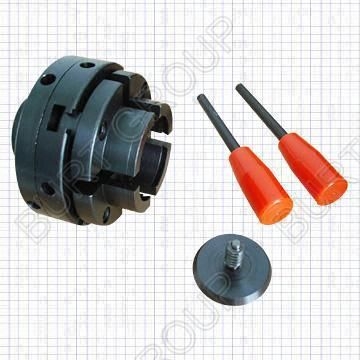

More Accessories
