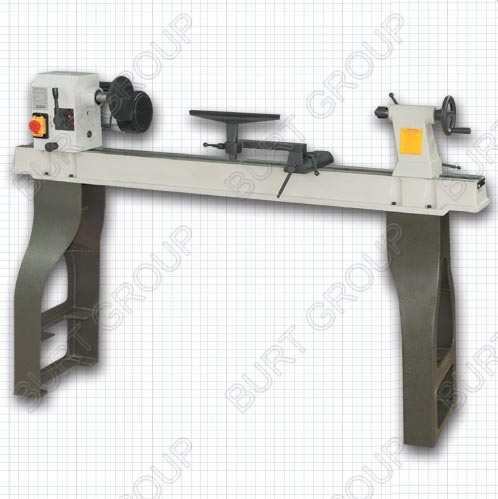

The solid cast iron head which can slide along bed to most convenient position and rotate to allow best access for bowl turning.

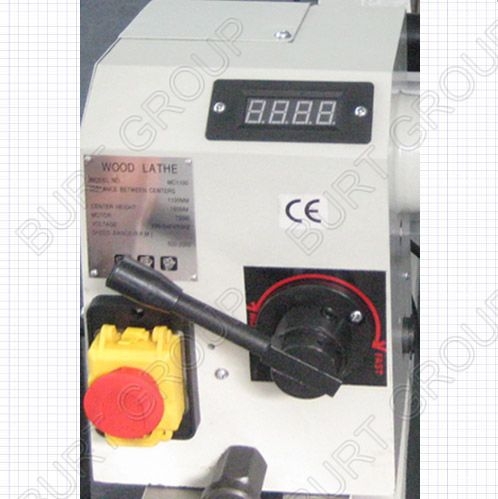

Mechanical variable speed which provides a choice of ten speeds.
Heavy duty tool rest support.
300mm cast iron tool height adjustable tool rest with bowl turning extension.
Comes complete with four prong drive center, revolving tailstock center, 150mm face plate, center knock-out bar, faceplate spanner.
01) Motor: 550/750W
02) Spindle speed: 500 to 2,000rpm (50Hz)/ 600 to 2,400 (60Hz)
03) Swing overbed: 14 inches, Distance between center: 43 inches
04) Drive spindle: 1/8-inch RH thread
05) Head and tailstock taper: #2 morse or other
06) Face plate: 6 inches, Tool rest: 12 inches
07) Net/gross weight: 83/88kg (body); 45/48 (stand)
08) Packing size: 1,630 x 360 x 430mm (body)/810 x 380 x 250mm (stand)
09) Units per 20-foot container: 80
