MCJ1000+MFC+S

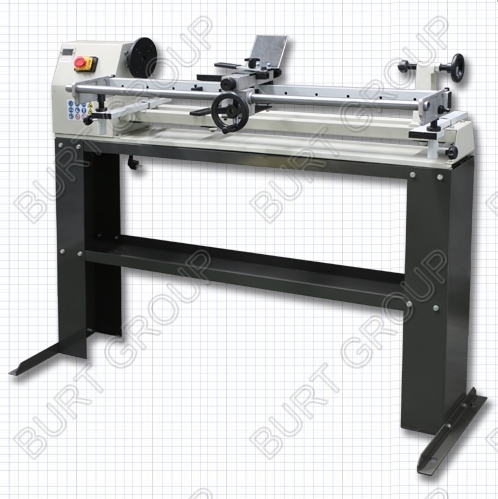

1000MM WOOD LATHE WITH COPY DEVICE AND STAND 370W
Main Features
Description Video Documents

WOOD LATHE:
01)   Motor: 370W
02)   Five speeds
03)   Spindle speed (rpm): 850 to  2,510 (50HZ), 1,020 to 3,000 (60HZ)
04)   Swing overbed: 14 inches
05)   Distance between centers: 40 inches
06)   Drive spindle: 1/8-inch RH thread
07)   Face plate: 6 inches
08)   Tool rest: 12 inches

COPY DEVICE:
09)   Maximum duplicating length: 1000mm
10)   Maximum cutter travel: 35mm
11)   Cutter height: 150 to 210mm

GENERAL
12)   Net/gross weight: 70/80Kgs
13)   Packing size: 156x53x43cm
14)   Units per 20-foot container: 75Pcs
