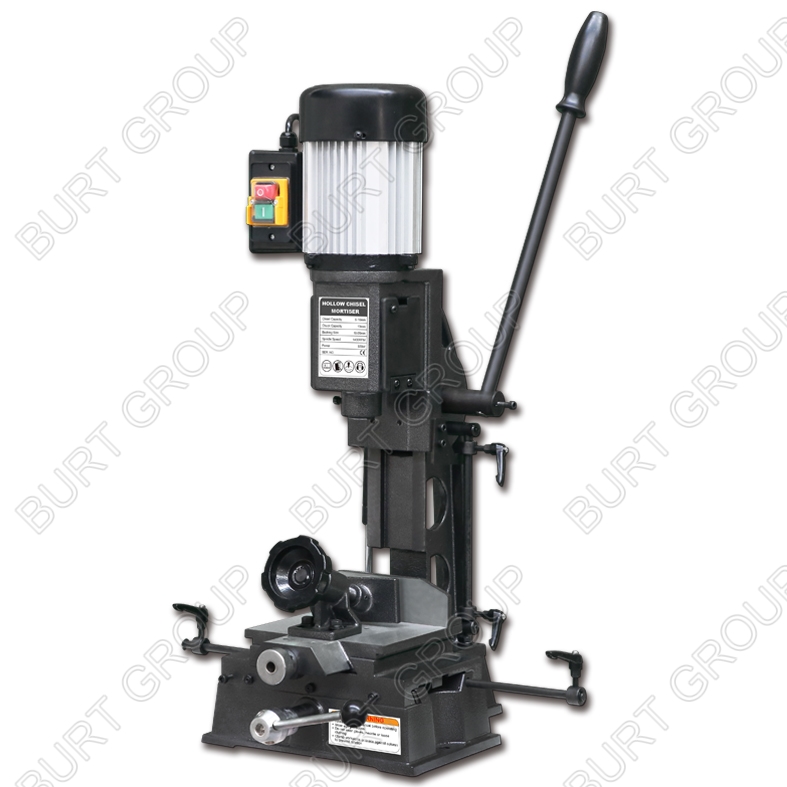

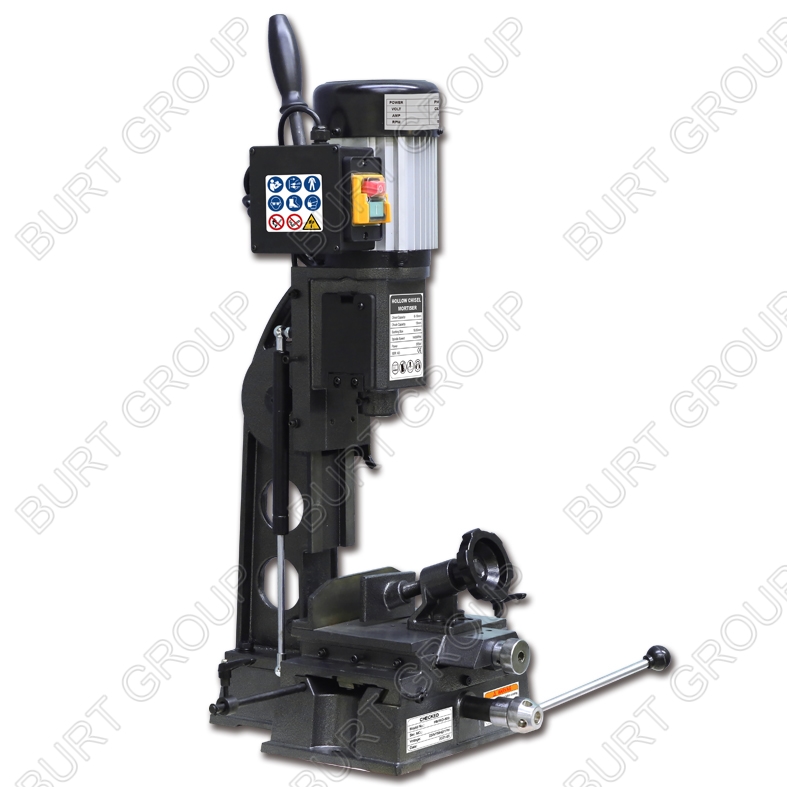

This bench top morticer has the huge benefit of both lateral (side to side, X axis) and longitudinal(front to back, Y axis).

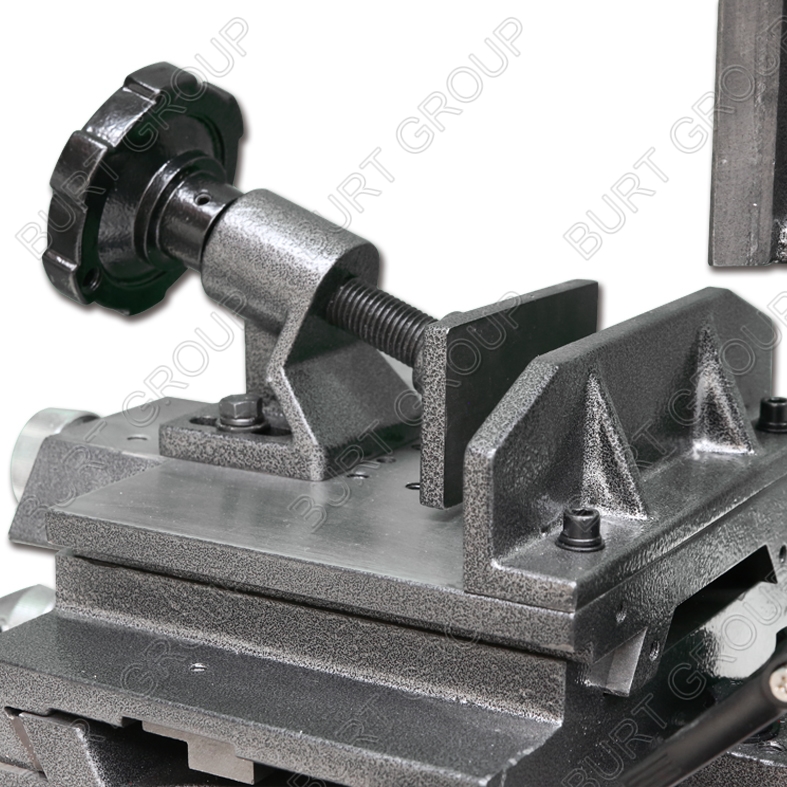

a) Integral material clamp

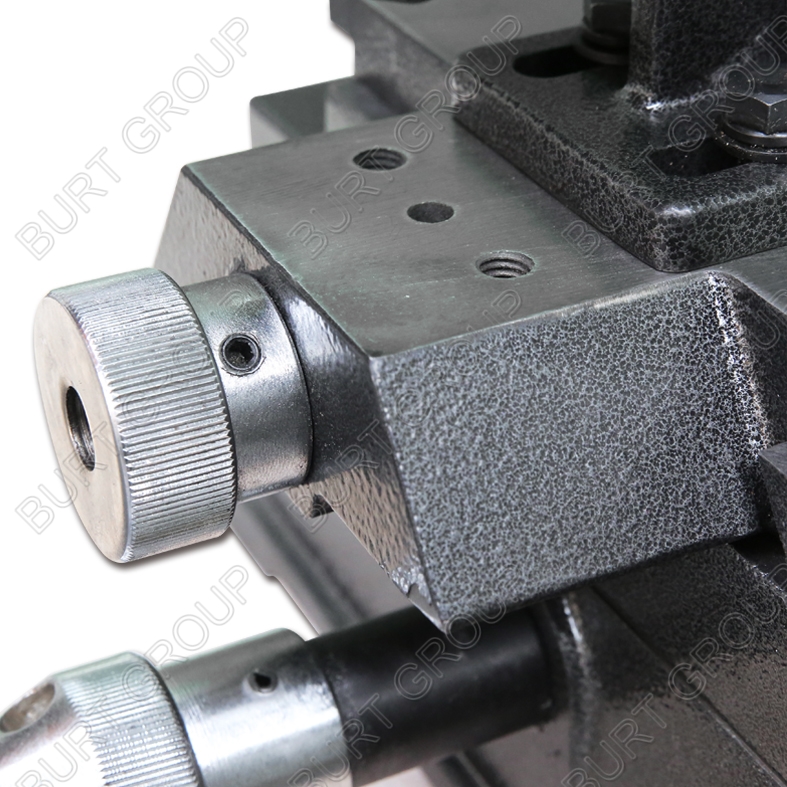

b) Lateral table movement 160mm
c) Longitudinal movement 40mm
b) Max workpiece 110mm H x 120mm W
01) Motor: 370W
02) Spindle speed: 1,400 (50Hz)/1,720 (60Hz)
03) Chisel capacity: 6 to 16mm (1/4 to 5/8 inches)
04) Maximum mortising depth: 76mm (3 inches)
05) Drill chuck capacity: 1-13mm
06) Maximum clamping width: 80mm
07) Spindle to fence (maximum): 50mm
08) Chisel to table (maximuim): 100mm
09) Over height: 800mm
10) Gross weright: 46kg, Net weight: 42kg
11) Packing size: 670 x 450 x 340mm
12) 20-foot container: 258 pieces
