MC2242VFM

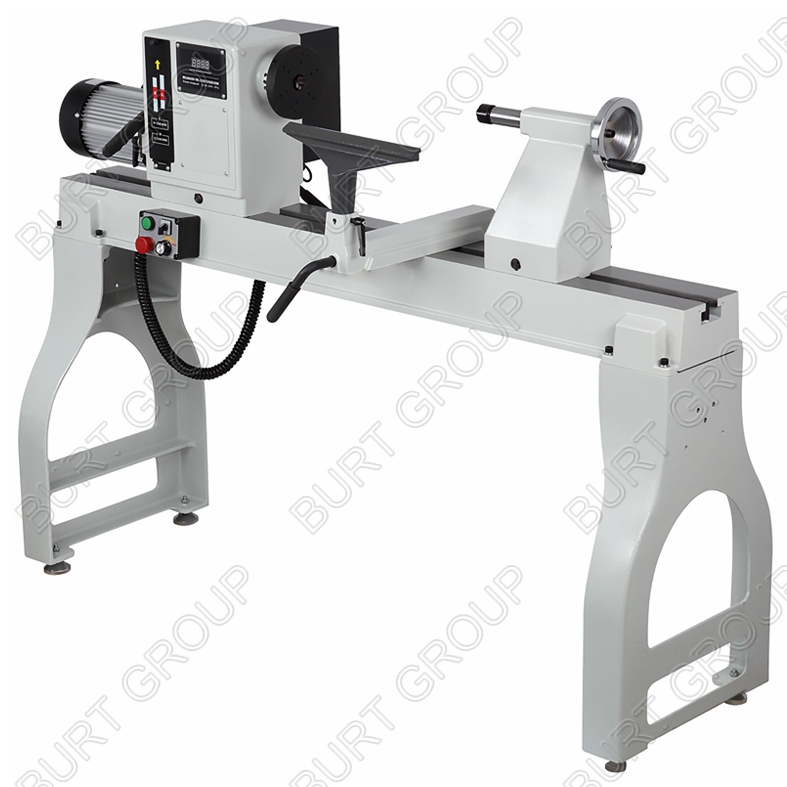

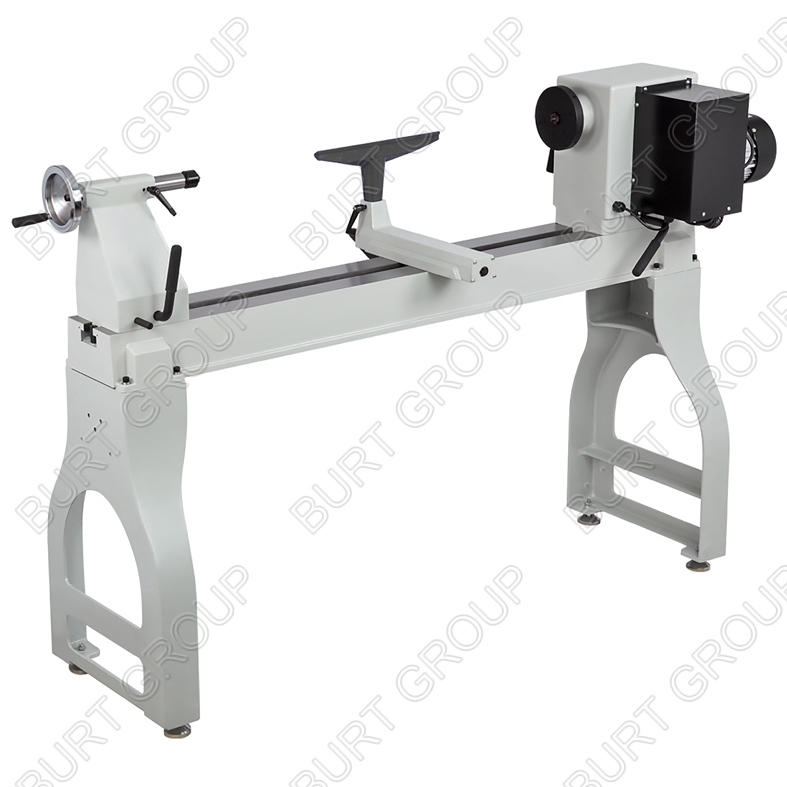

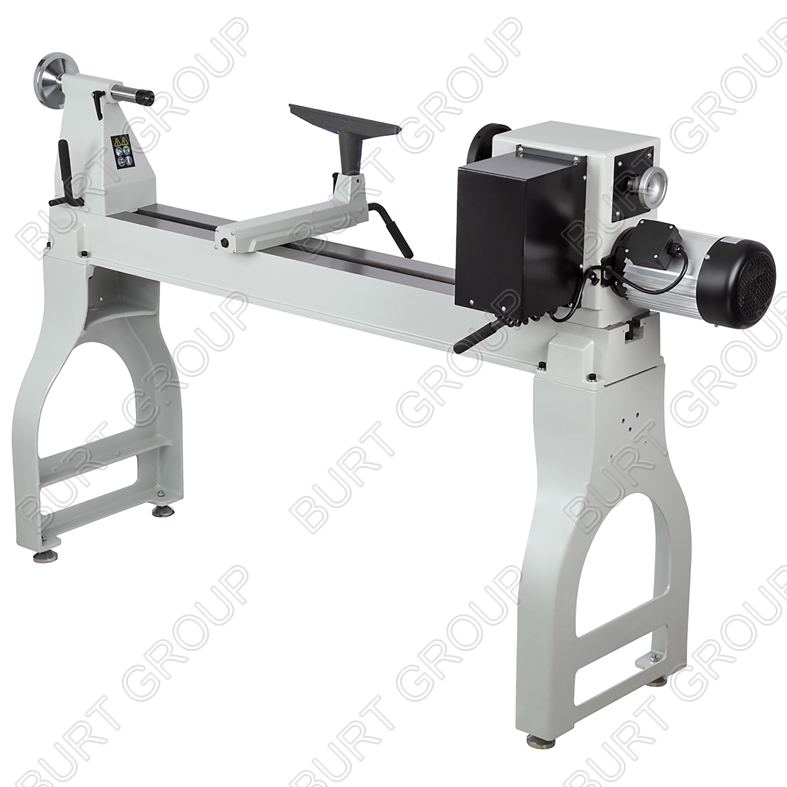

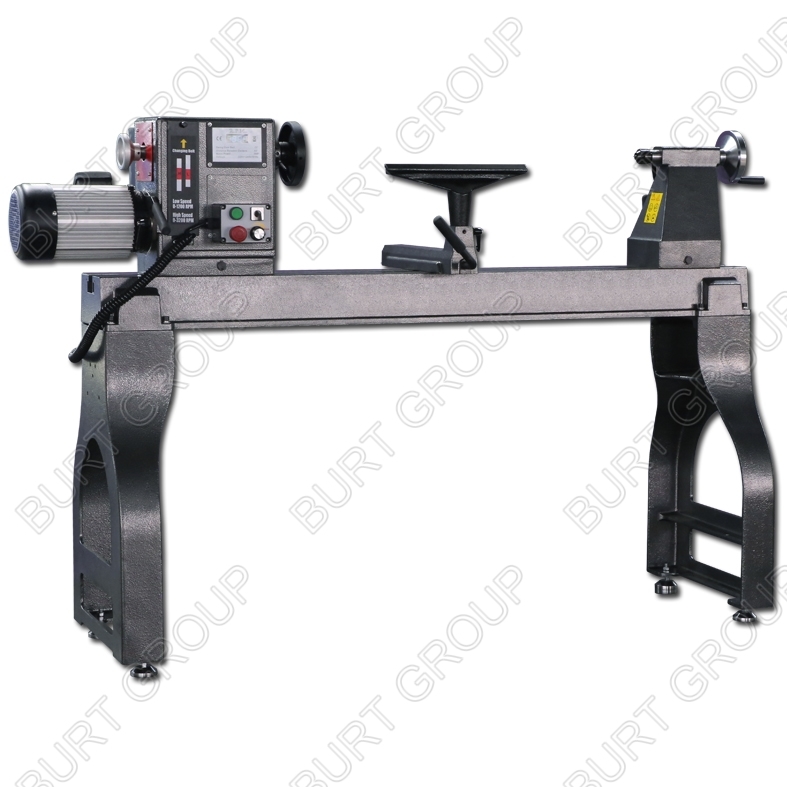

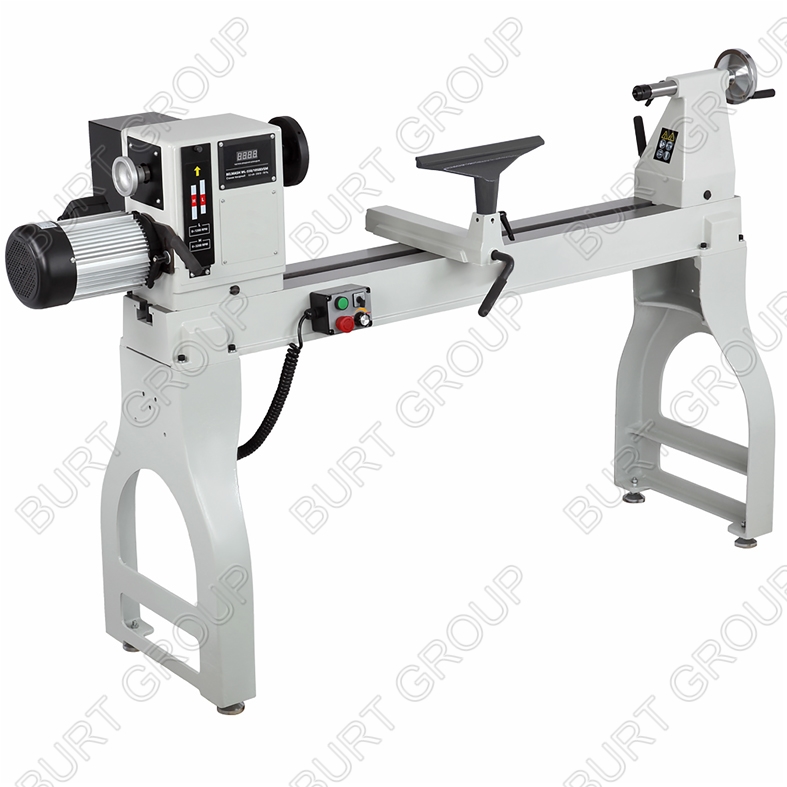

MC2242VFM ELECTRONIC VARIABLE SPEED 22x42" WOOD LATHE 2200W WITH TAIWAN DELTA INVERTER + MAGNETIC CONTROL BOX M33X3.5-DIN800
Main Features

* Magnetic control box can be positioned where required

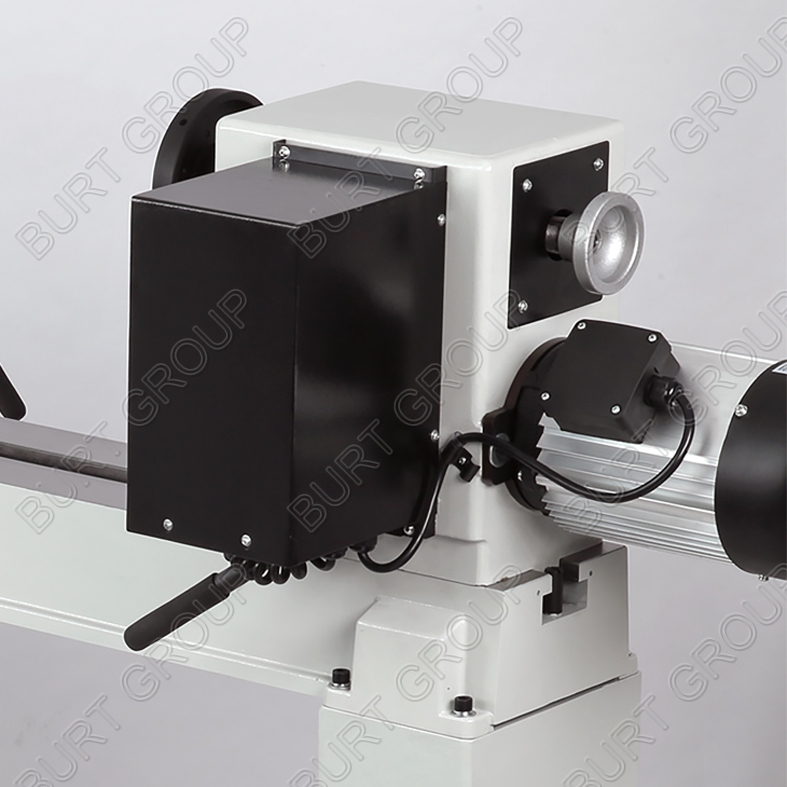

* Electronic Inverter Variable Speed Lathe with TAIWAN DELTA brand Inverter
* Two belt ratios for high torque when turning large diameters

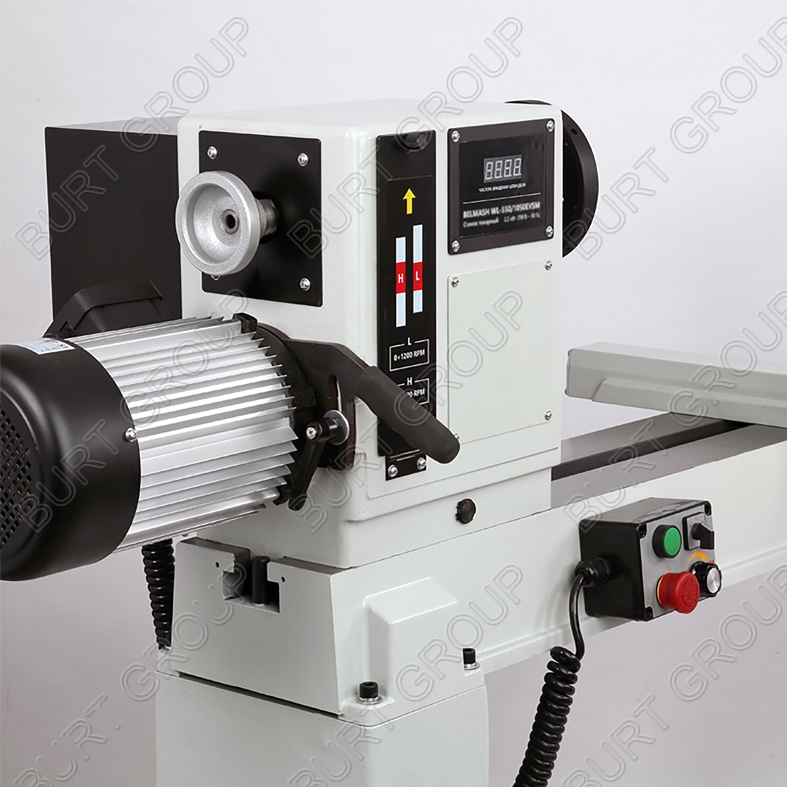

* Digital speed display on headstock

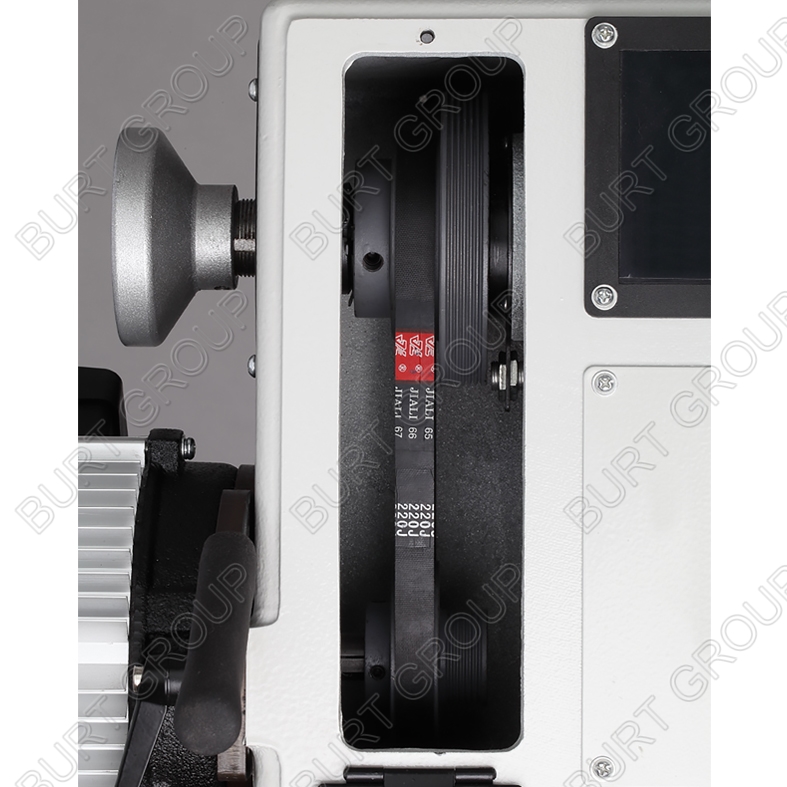

* Quick belt change construction headstock
* All cast iron constuction for high stability and vibration free running
* Cast iron stand with provision for a shelf
* 36 Indexing Positions Function
* With Forward/Reverse running function


Description Video Documents

Specifications:
01)   Description: 22"X42"variable speed wood lathe
02)   Motor(W): 2200W (input), 1500W(output)
03) No of speed: L:0-1200RPM, H:0-3200RPM
04) Swing over bed: 22"
05) Distance between centers: 42"
06) Drive spindle thread: M33X3.5 or others

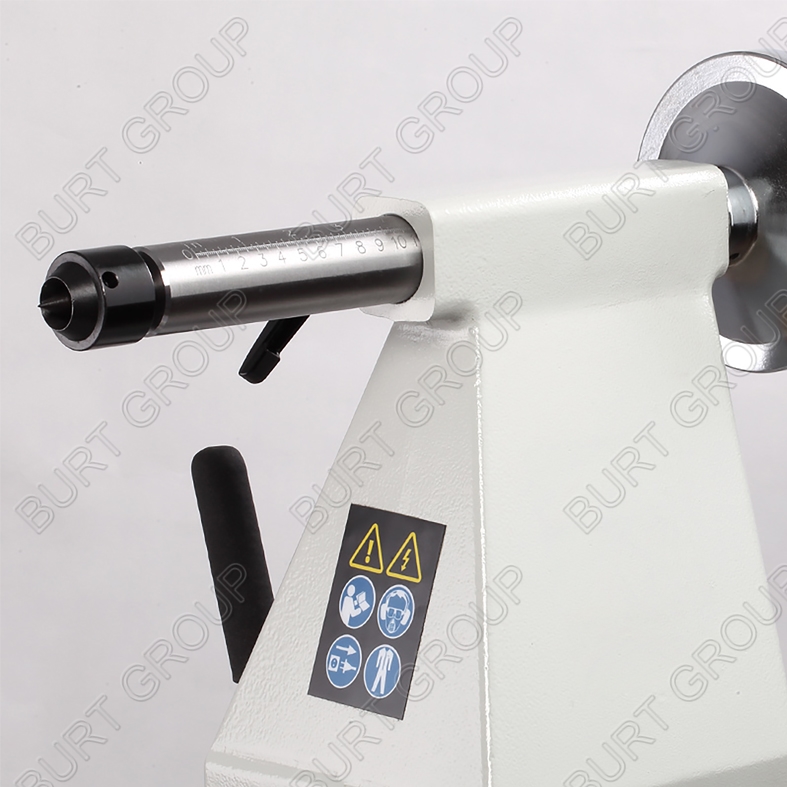

07) Headstock and tailstock taper: MT2
08) Face plate: 6”

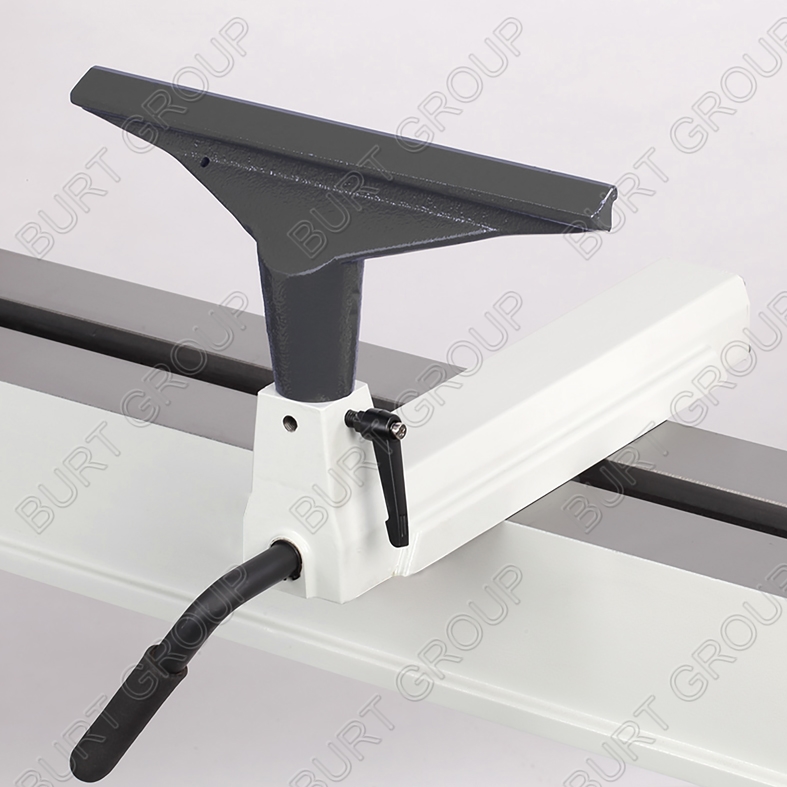

09) Tool rest: 14”
10) Packing size(mm): 1750x610x620mm
11) NW/GW: 225/300KGS
12)   Units per 40HC container: 80pcs
