MC1424VS

ELECTRONIC VARIABLE SPEED 14"x24" WOOD LATHE WITH TAIWAN DELTA INVERTER 750W
Main Features

* Electronic Inverter Variable Speed Lathe with 750W TAIWAN DELTA brand Inverter
* Two belt ratios for high torque when turning large diameters
* Digital speed display on headstock
* Quick belt change construction headstock
* All cast iron constuction for high stability and vibration free running
* Cast iron stand with provision for a shelf

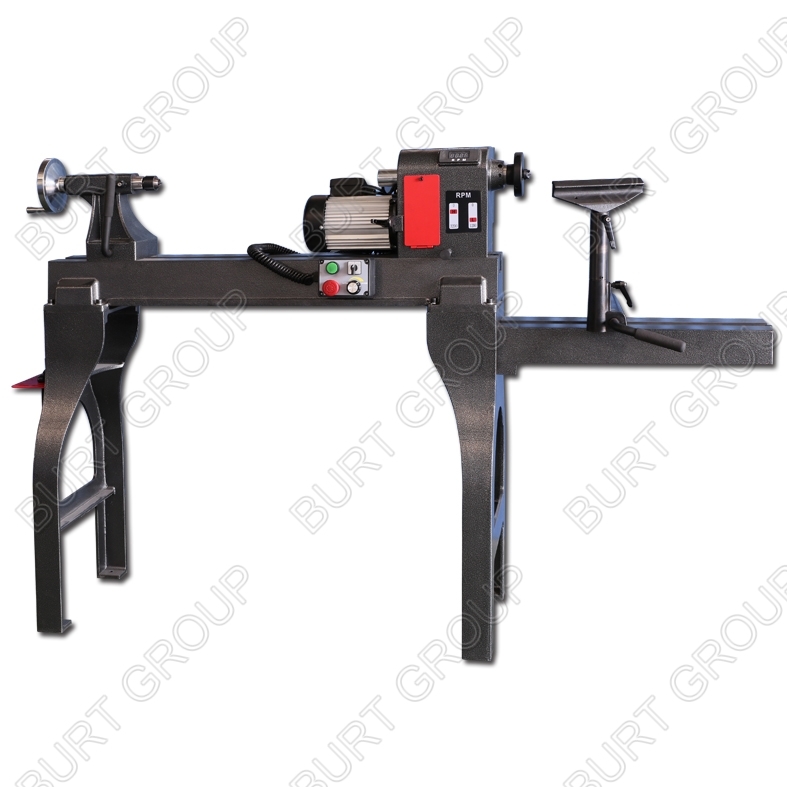

* Headstock rotates for outboard turning
* 36 Indexing Positions Function
* With Forward/Reverse running function
* Magnetic control box can be positioned where required


Description Video Documents

Specifications:

01)    Description: 14"x24" wood lathe with Rotatable headstock
02)    Motor(Input W): 750W (with 750W inverter)
03)    No. of Speed: Variable
04)    Spindle Speed: 0~1200rpm Low Speed, 0~3200rpm High Speed
05)    Swing Over Bed: 368mm(14.5")
06)    Distance Between Centers: 23.6" (600mm) or 47" (1193mm) with optional extension bed
07)    Drive Spindle: M33X3.5 or 1”8RH thread
08)    Headstock and Tailstock Taper:MT2#
09)    Face Plate: 104mm(4")
10)    Tool Rest: 200mm(8")
11)   Packing Size(mm): 1125X580X515
12)   NW/GW: 137/165KGS
13)   Units per 20-foot container:80 pcs

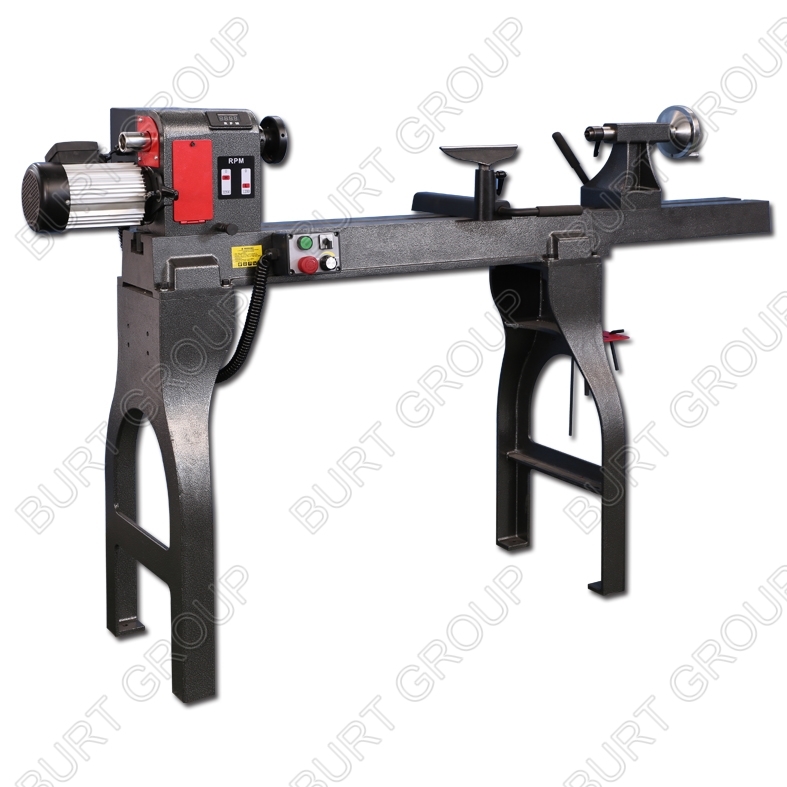

* With extra extension bed MC1624-EX+OTR available as optional accessory, which could extend

the total working lenght to 1193mm(47") or Extend the bowl turning capacity to 680mm(27")
