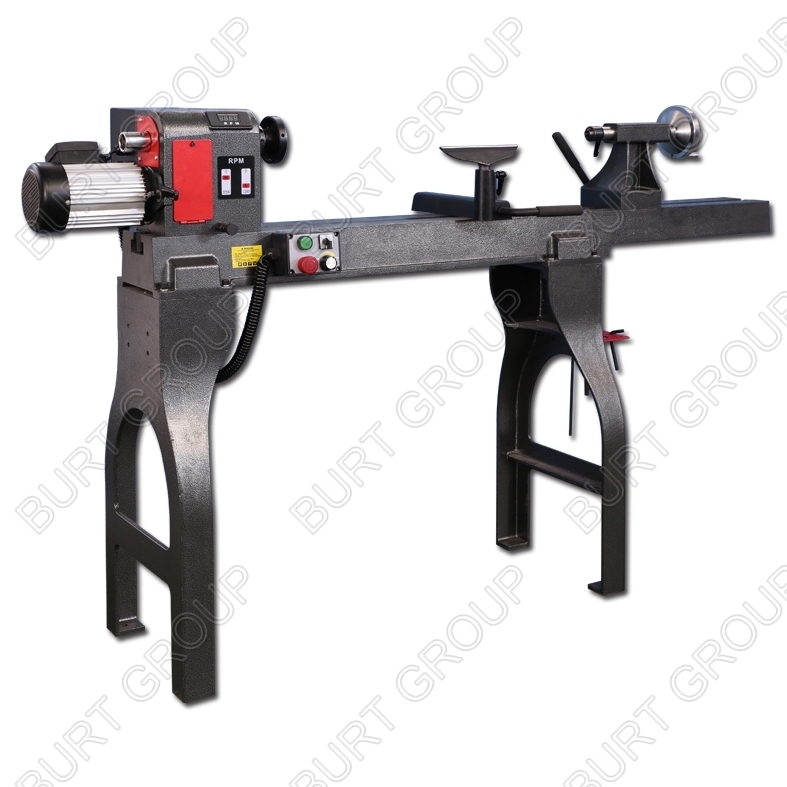

* The lathe is constructed from cast iron and includes a powerful 750W universal DC motor with electronic speed control that provides full torque at all speeds.
* Two belt ratios for high torque when turning large diameters

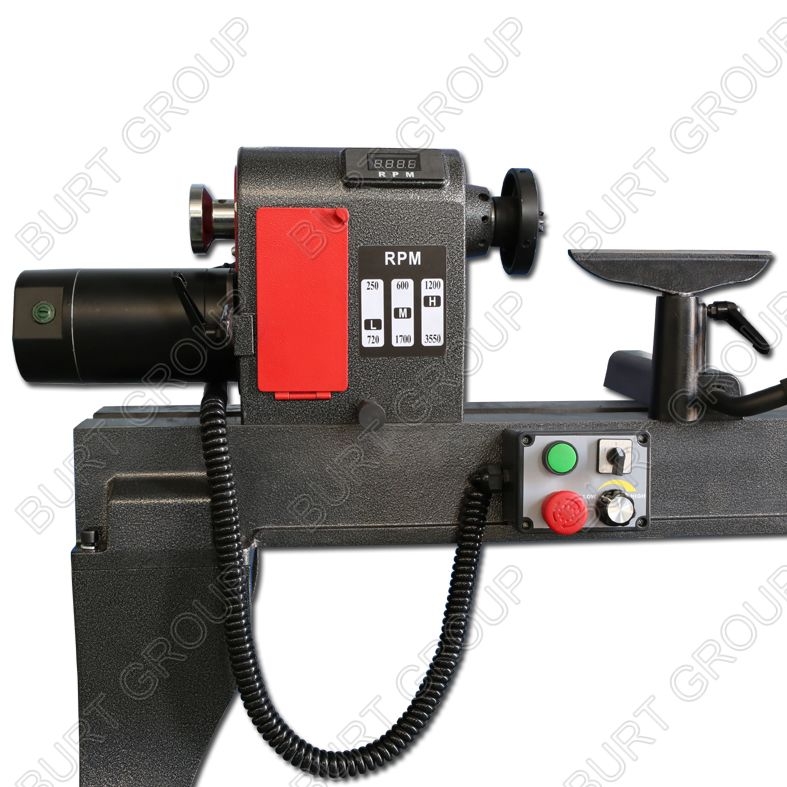

* Digital speed display on headstock
* Quick belt change construction headstock
* All cast iron constuction for high stability and vibration free running
* Cast iron stand with provision for a shelf

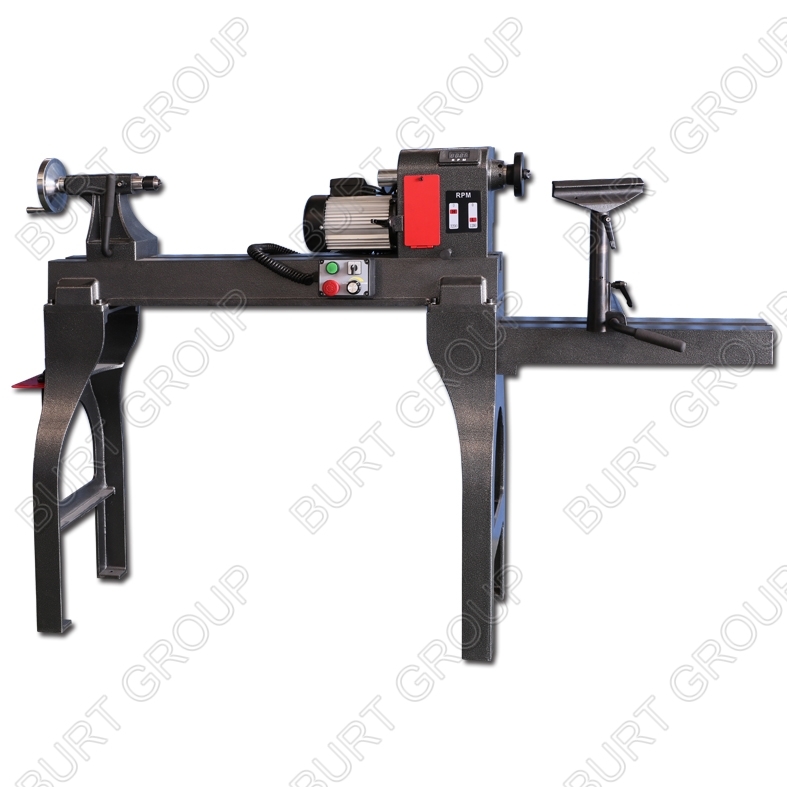

* Headstock rotates for outboard turning
* 36 Indexing Positions Function
* With Forward/Reverse running function
* Magnetic control box can be positioned where required
Specifications:
| 01) Description: 14"x24" wood lathe with Rotatable headstock |
| 02) Motor(Input W): 750W DC |
| 03) No. of Speed: Variable |
| 04) Spindle Speed: 250~720rpm Low Speed, 550~1700rpm Middle Speed,1200~3550rpm High Speed |
| 05) Swing Over Bed: 368mm(14.5") |
| 06) Distance Between Centers: 23.6" (600mm) or 47" (1193mm) with optional extension bed |
| 07) Drive Spindle: M33X3.5 or 1”8RH thread |
| 08) Headstock and Tailstock Taper:MT2# |
| 09) Face Plate: 104mm(4") |
| 10) Tool Rest: 200mm(8") |
| 11) Packing Size(mm): 1125X580X515 |
| 12) NW/GW: 137/165KGS |
| 13) Units per 20-foot container:80 pcs |
| * With extra extension bed MC1624-EX+OTR available as optional accessory, which could extend the total working lenght to 1193mm(47") or Extend the bowl turning capacity to 680mm(27") |
