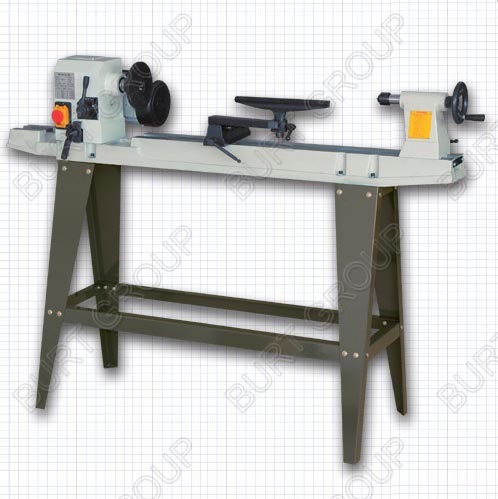

Cast iron construction, bed, head and tailstock
Variomatic speed control 500-2,000rpm

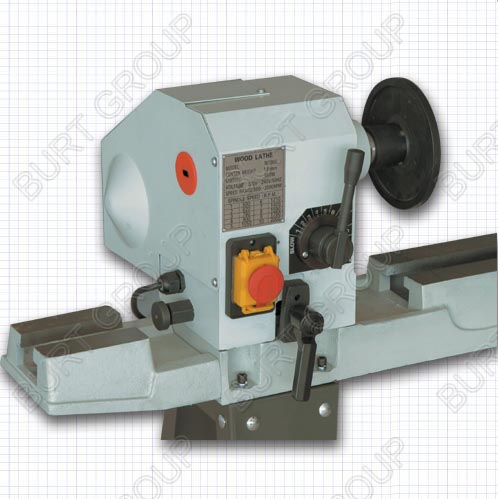

Swivelling headstock can be locked in position
Outboard tool rest extension
Headstock and tailstock have 2 Morse tapers

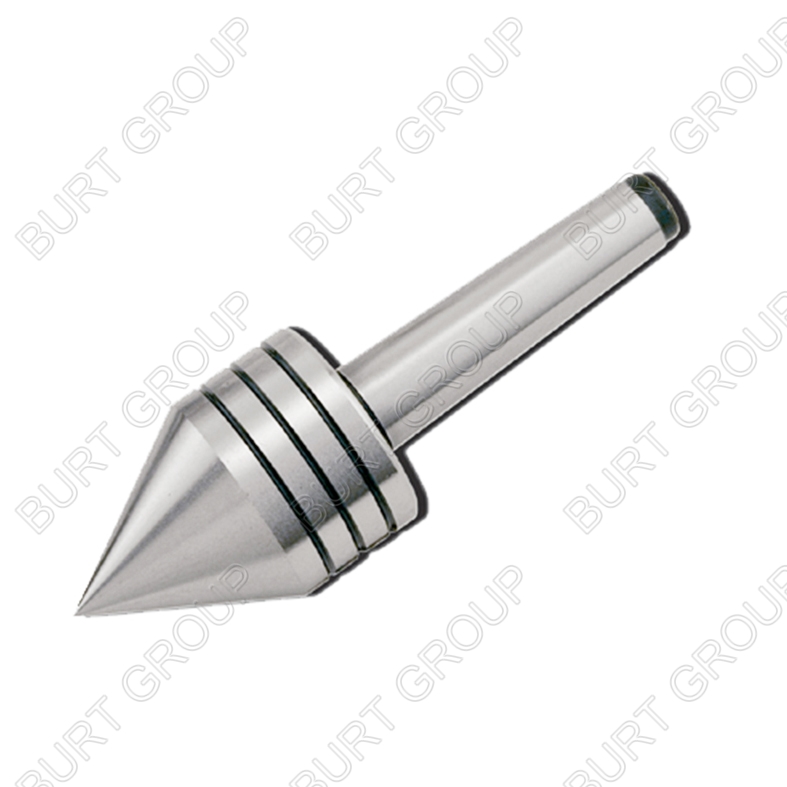

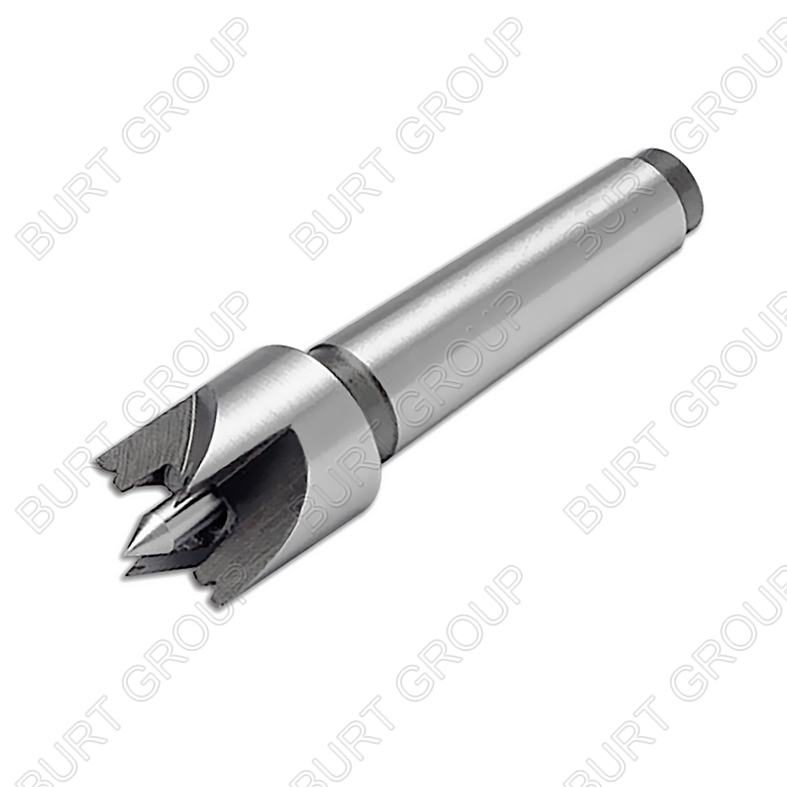

Supplied with 4 prong drive centre, revolving tailstock centre, 150mm faceplate, 300mm tool rest and floor stand
01) Motor: 370/450/550W
(Recommend: 230V 50HZ 370/550W， 120V 60HZ 410W, 220V 60HZ 550W)
02) With variable speeds
03) Spindle speed: 500 to 2,000rpm (50Hz)/600 to 2,400rpm (60Hz)
04) Swing overbed: 12 inches
05) Distance between center: 36 inches
06) Drive spindle: 1/8-inch RH thread
07) Head and tailstock taper: #2 morse or other
08) Face plate: six inches
09) Tool rest: 12 inches
10) Net/gross weight: 80/85kg
11) Packing size: 1,380 x 330 x 370mm
12) Units per 20-foot container: 172
