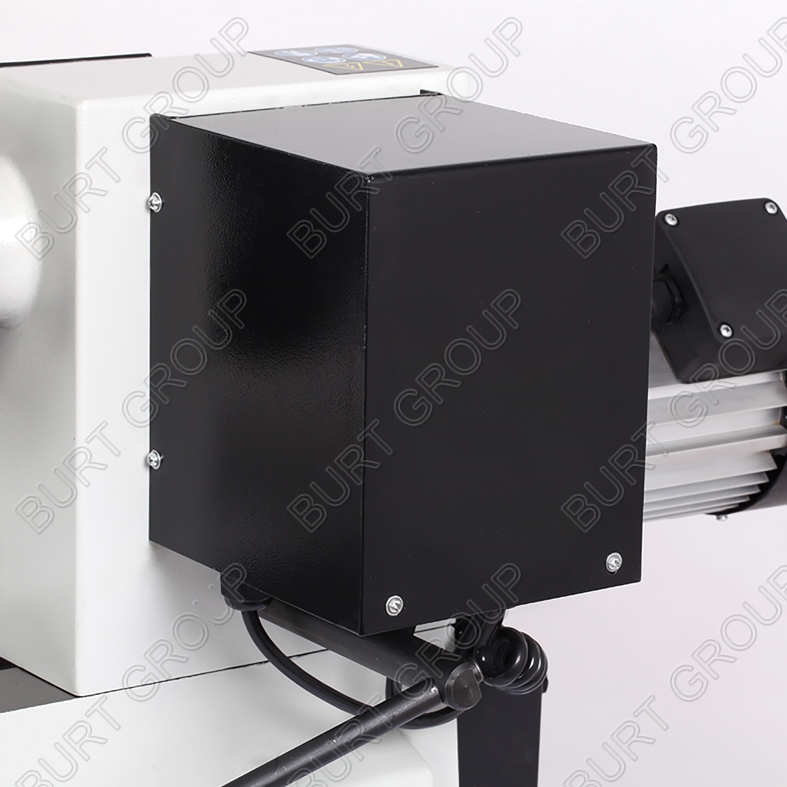

* Electronic Inverter Variable Speed Lathe with TAIWAN DELTA brand Inverter

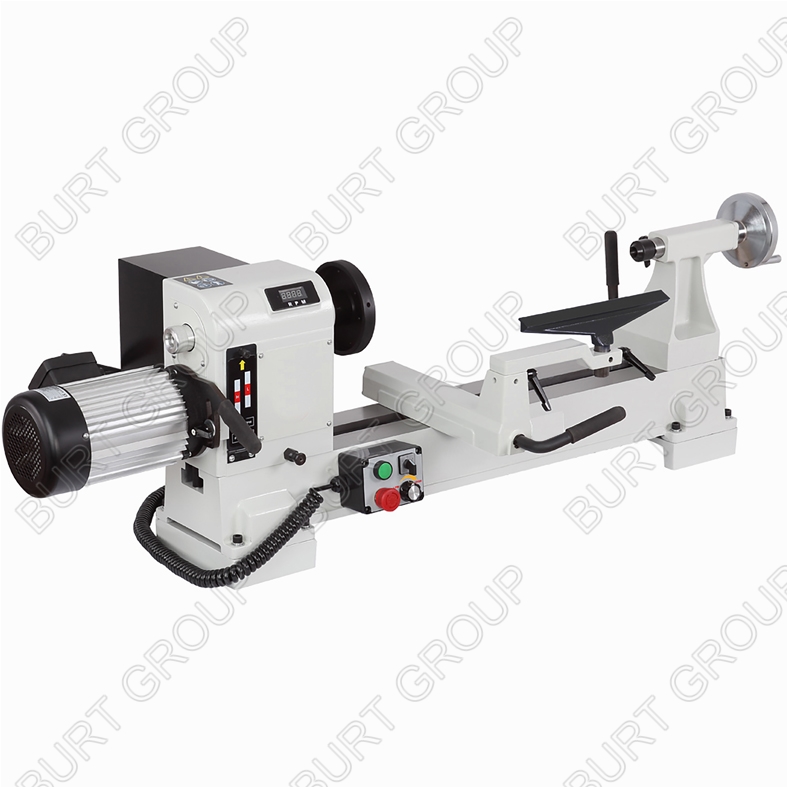

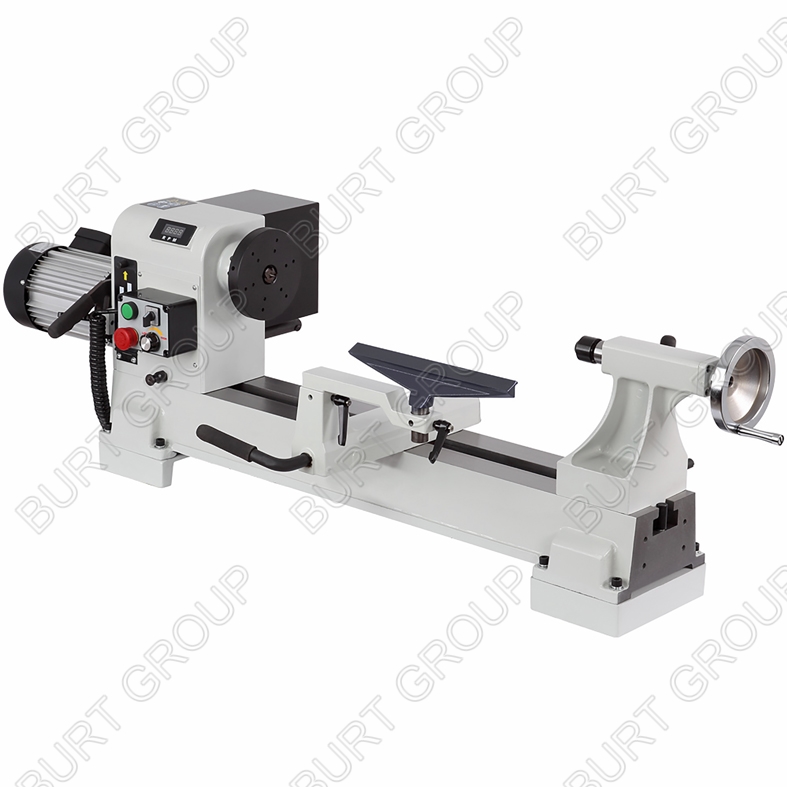

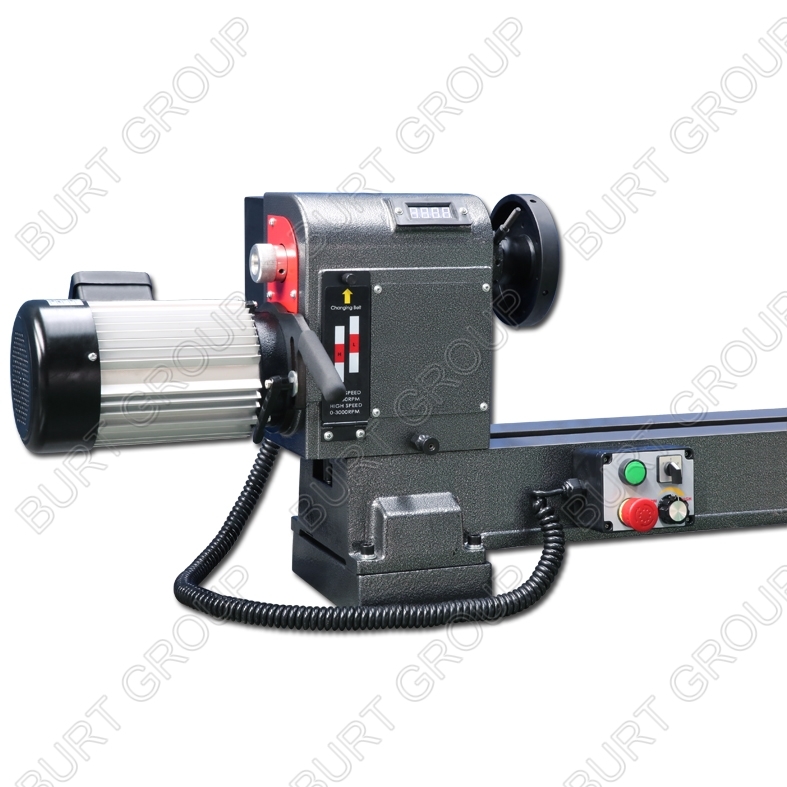

* Magnetic control box can be positioned where required
* Two belt ratios for high torque when turning large diameters

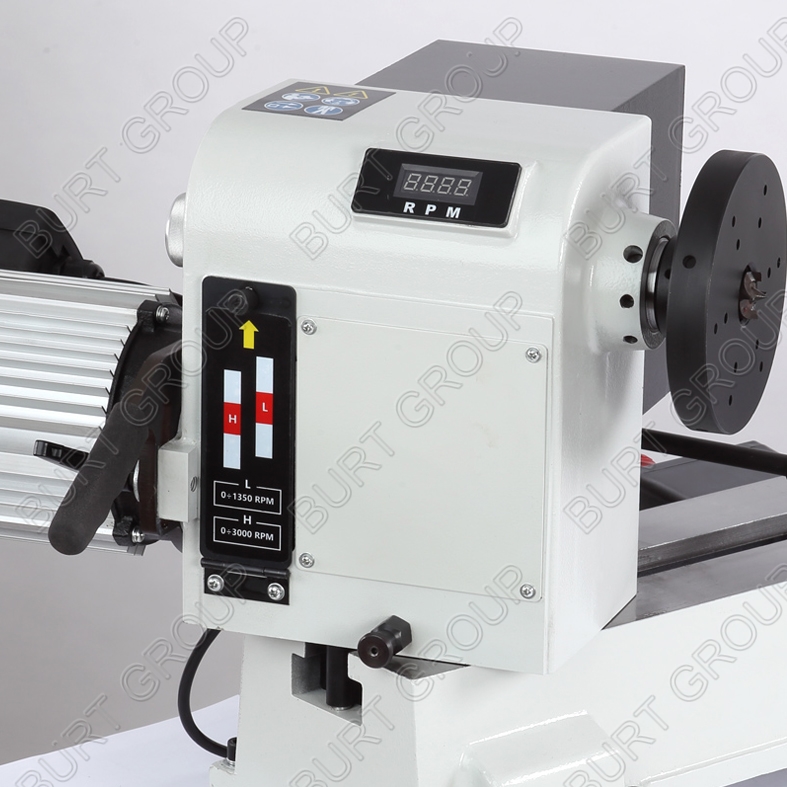

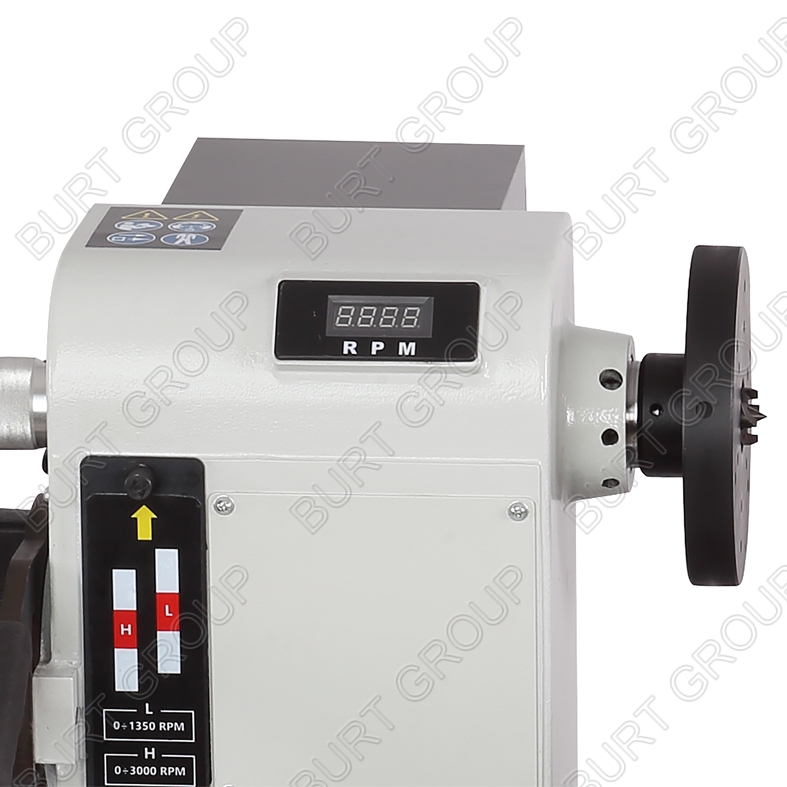

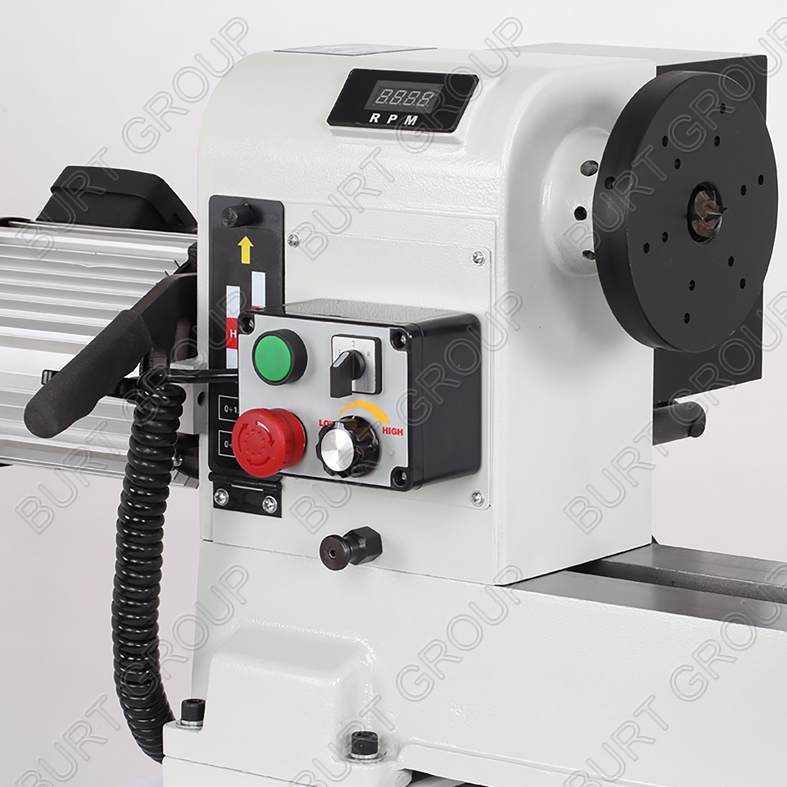

* Digital speed display on headstock

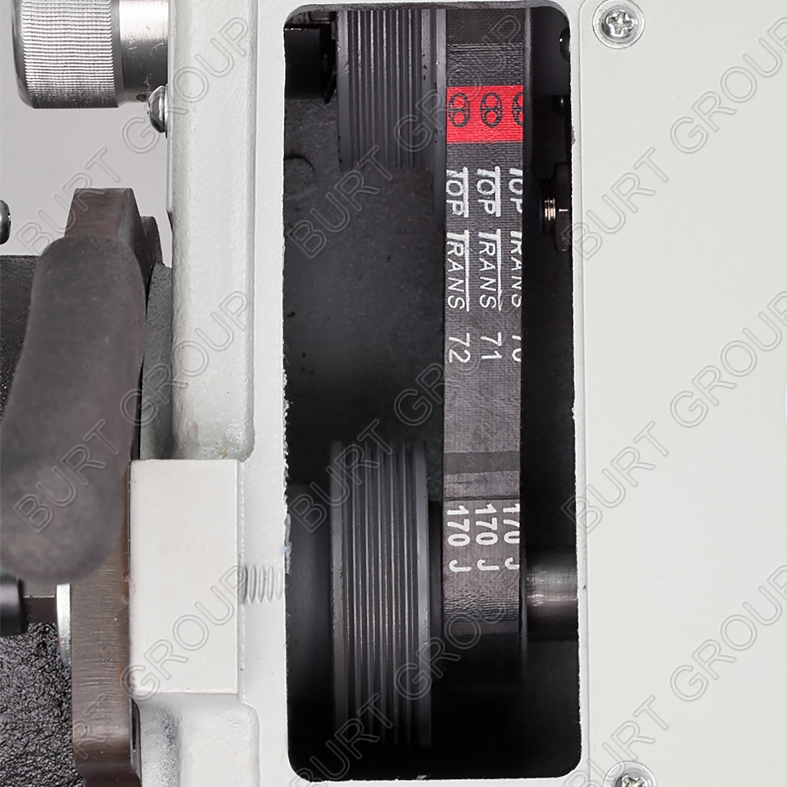

* Quick belt change construction headstock
* All cast iron constuction for high stability and vibration free running
* Cast iron stands as optional with provision for a shelf for floor type

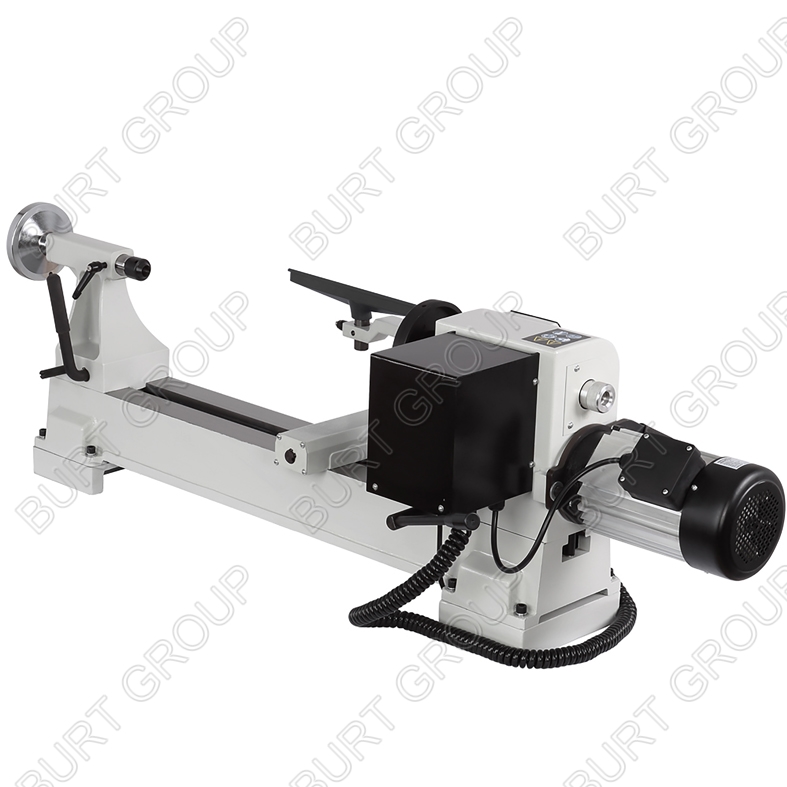

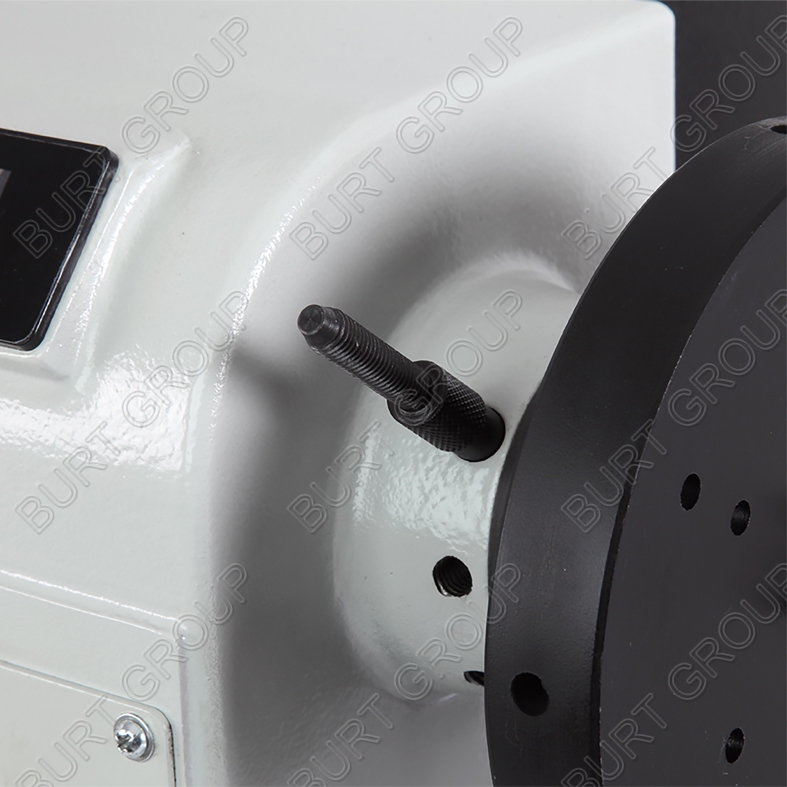

* Headstock rotates for outboard turning
Specifications:

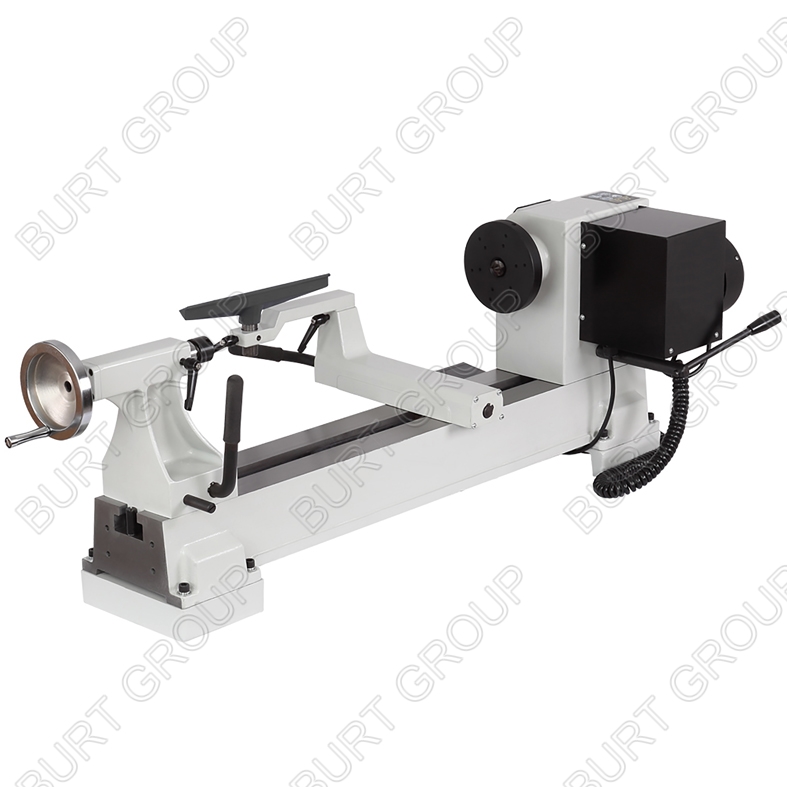

01) Description: 16"x24" wood lathe with Rotatable headstock
02) Motor(Input W): 750W (with 750W inverter) or 1500W (with 1500W inverter)
03) No. of Speed: Variable
04) Spindle Speed: 100~1350rpm Low Speed, 220~3000rpm High Speed
05) Swing Over Bed: 408mm(16")
06) Distance Between Centers: 24.4" (620mm) or 47" (1200mm) with optional extension bed
07) Drive Spindle: M33X3.5 or 1”8RH thread

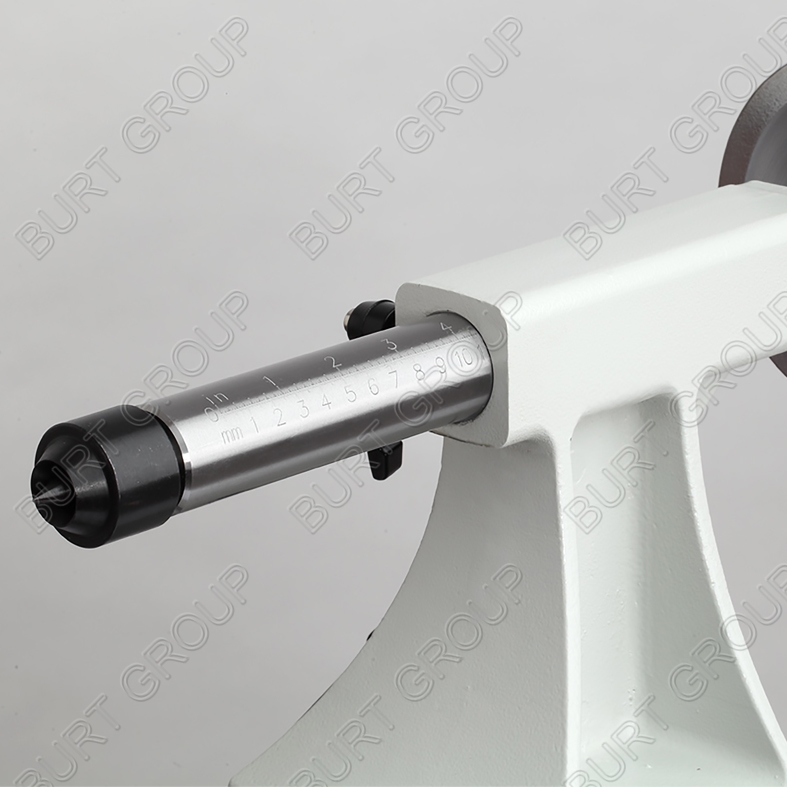

08) Headstock and Tailstock Taper:MT2#
09) Face Plate: 152mm(6")
10) Tool Rest: 300mm(12")
11) Packing Size(mm): 1130X440X530mm
12) NW/GW: 96/116KGS
13) Units per 20-foot container:104pcs
* With stands MC1624B-ULEG as optional with provision for a shelf for floor type
* With extra extension bed MC1624-EX+OTR available as optional accessory, which could extend the total working lenght to 1200mm(47") or Extend the bowl turning capacity to 720mm(28")
