FM400C-3300H

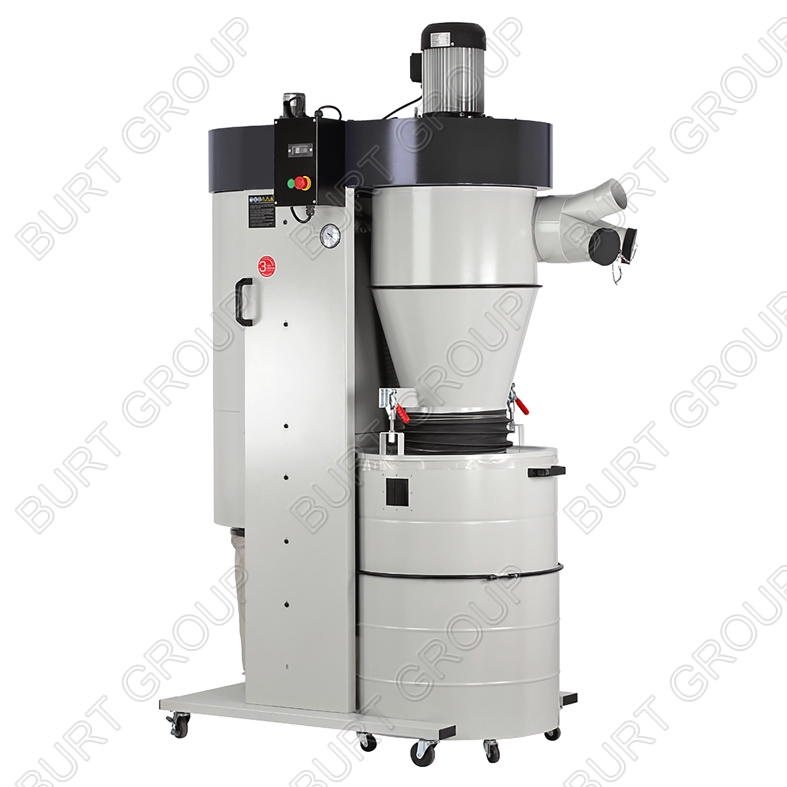

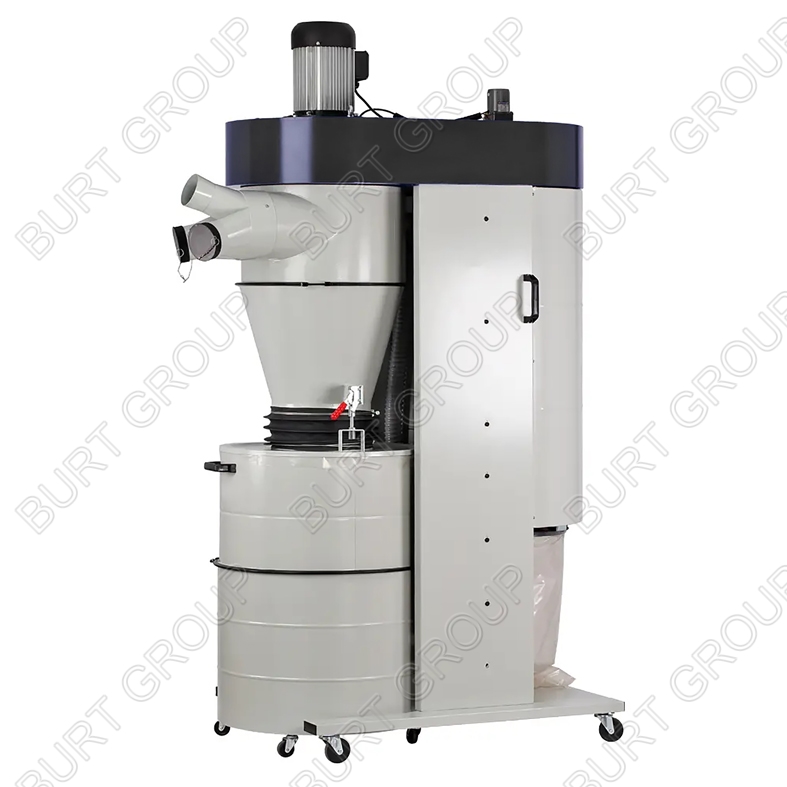

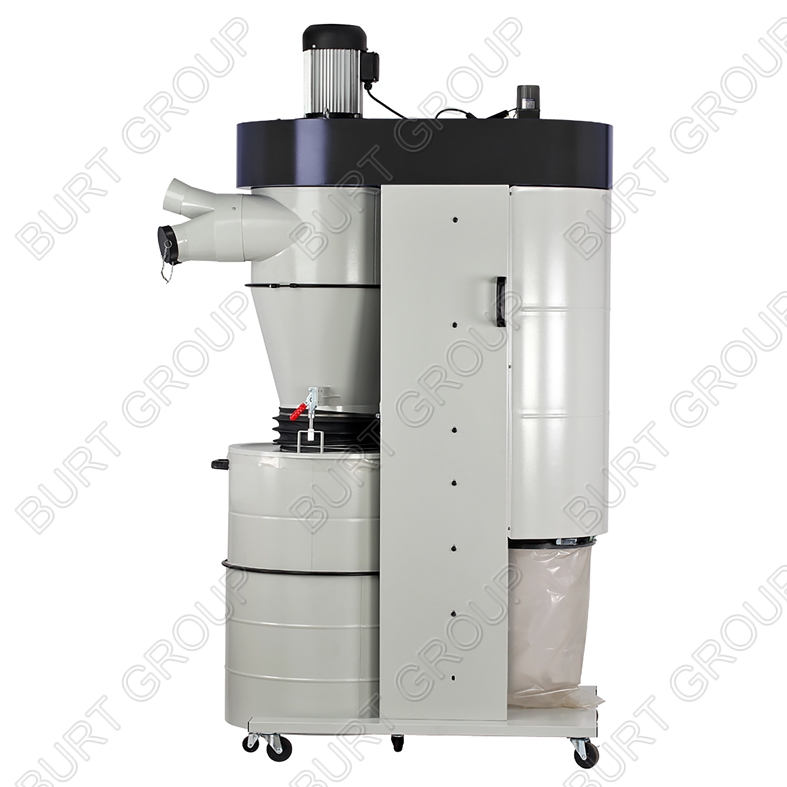

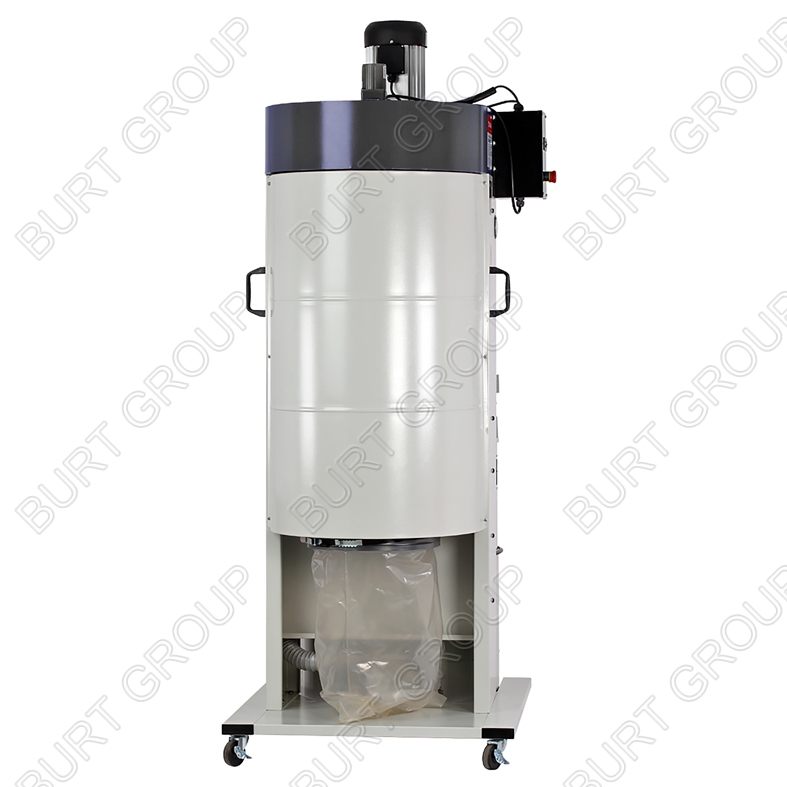

FM400C-3300H INDUSTRIAL SERIES DUST CYCLONE EXTRACTOR 3000W
Main Features

* Mobile cyclone dust extractor suitable for small to medium sized trade workshops.

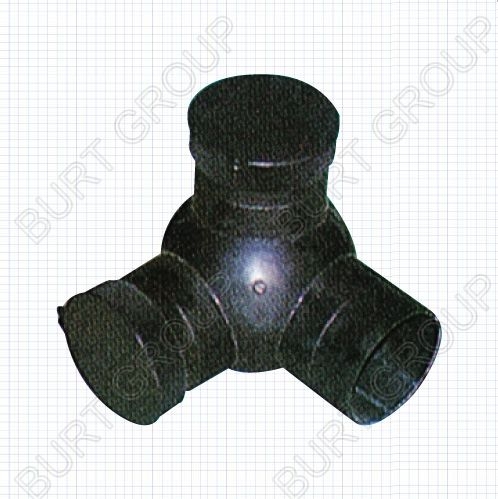

* Able to connect to two machines by 2 x 100mm adaptor.

* Nice and quiet operation

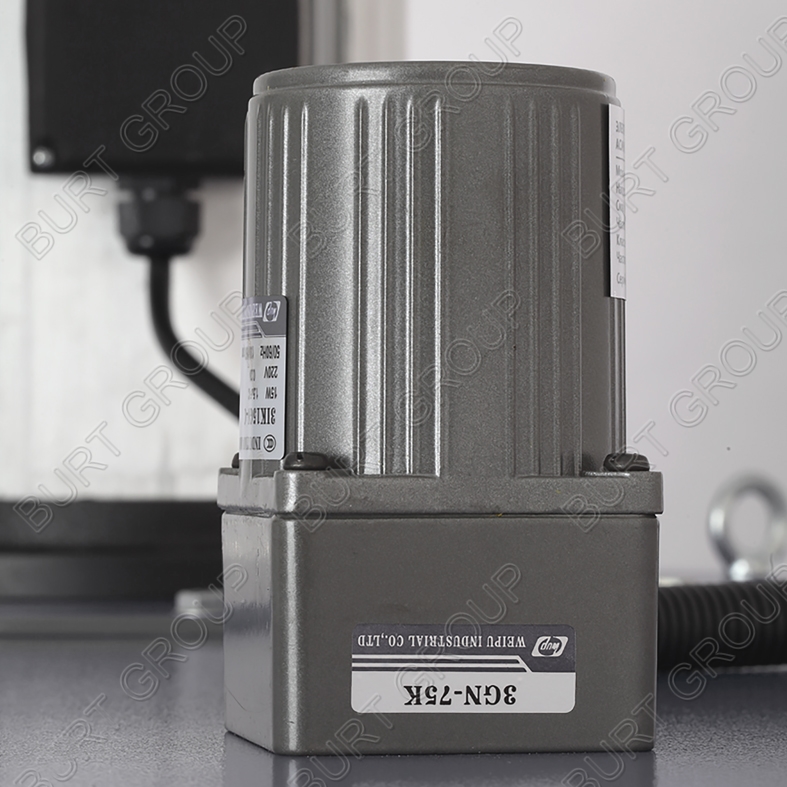

* Automatic filter cleaning for consistent airflow.

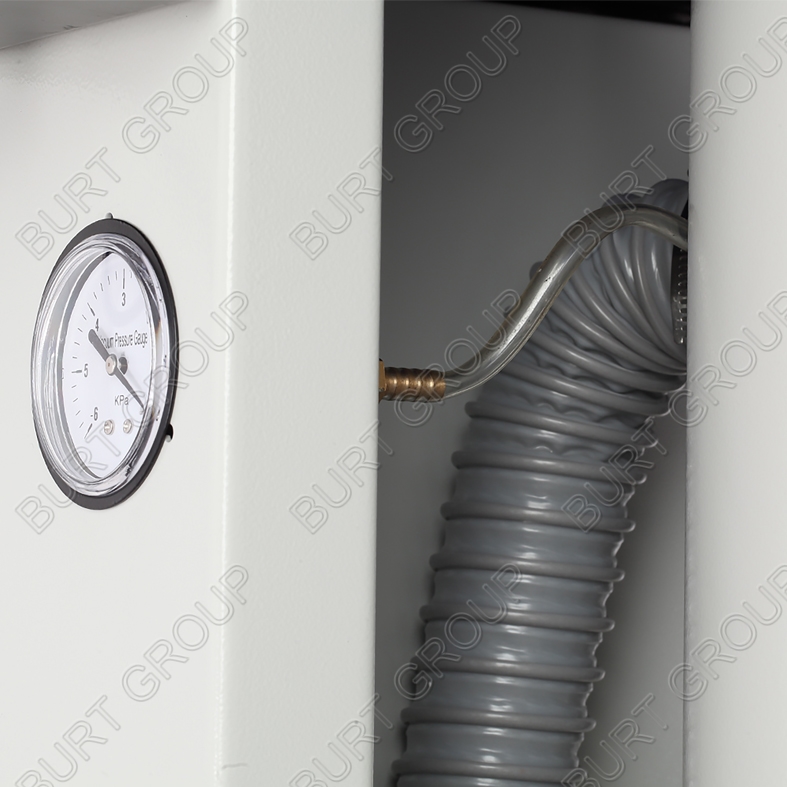

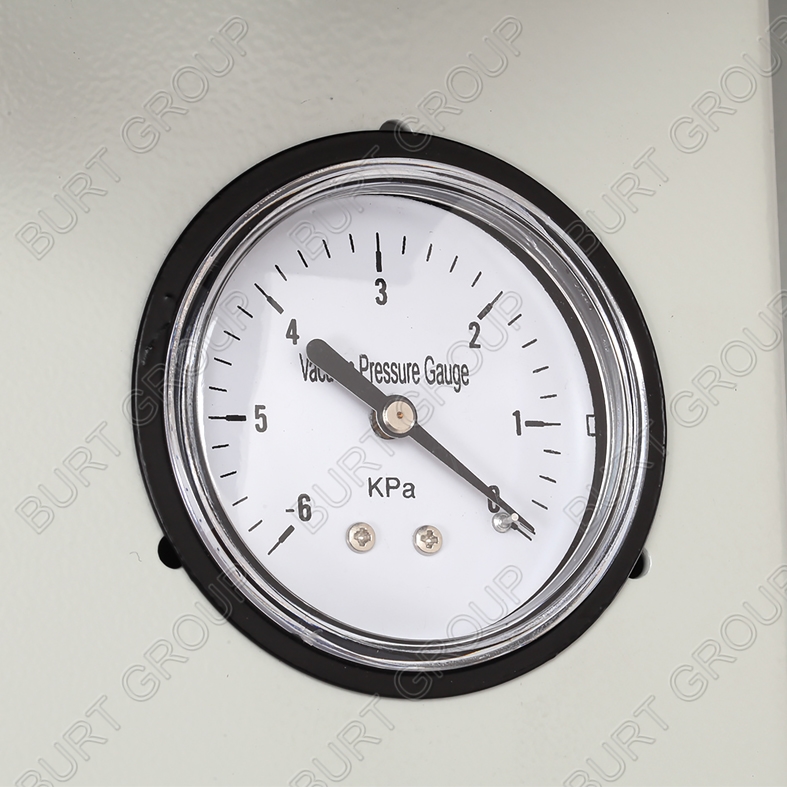

* A manometer gives a quick, visual indication of performance.

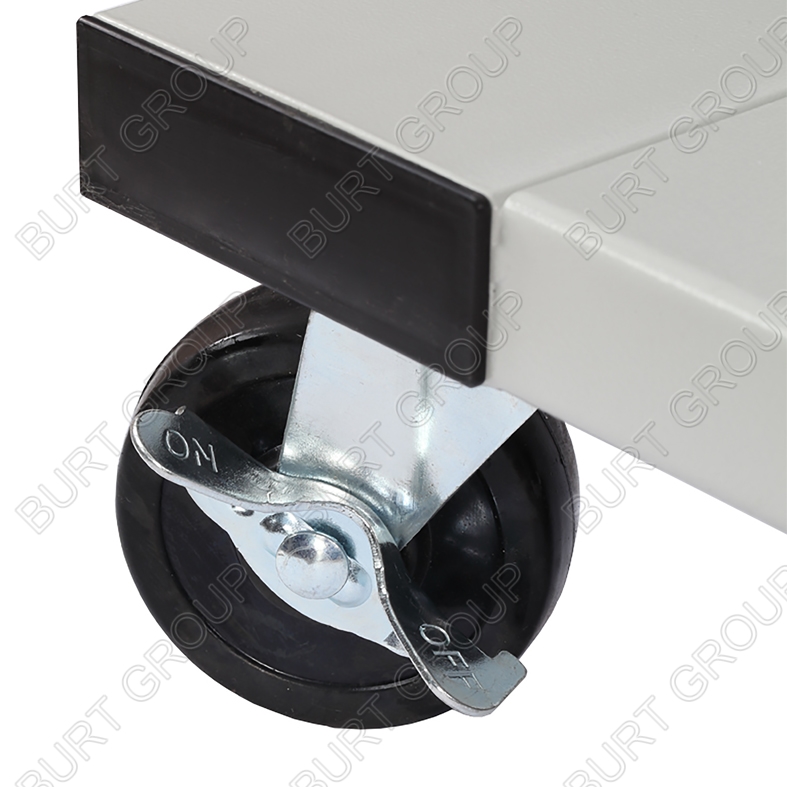

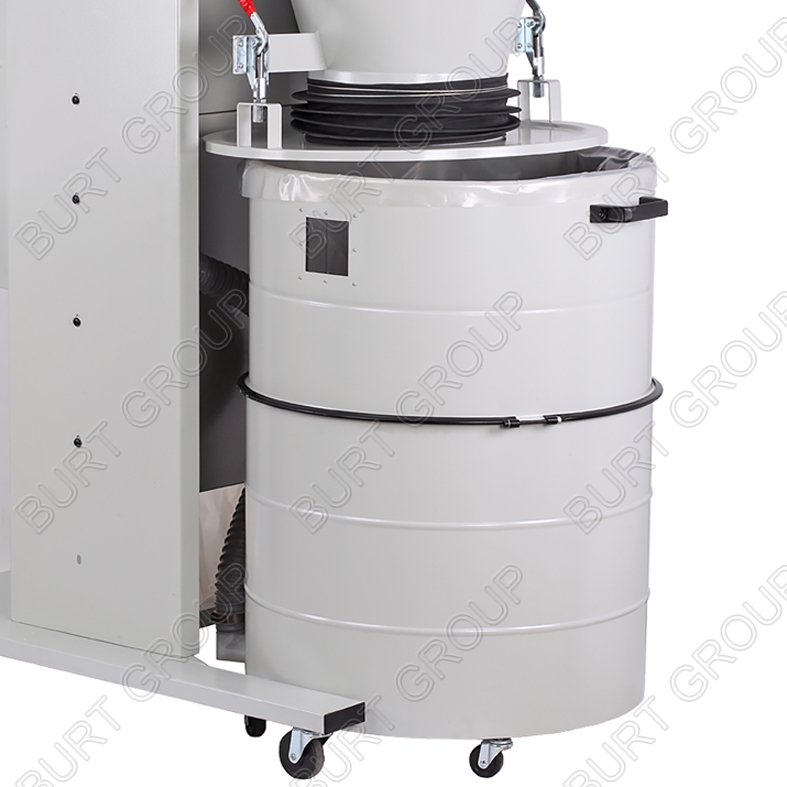

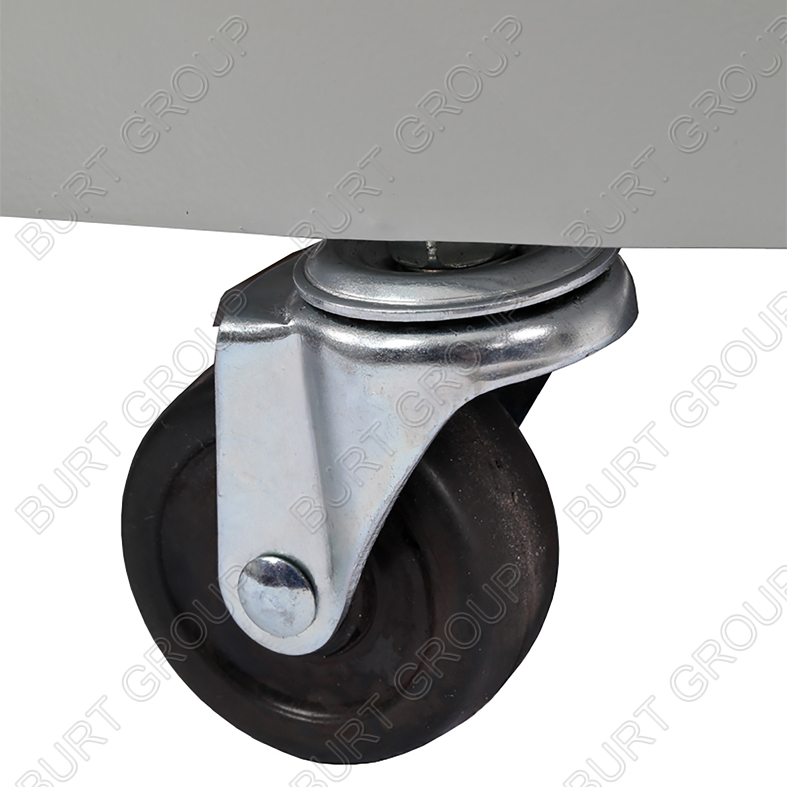

* The wheeled waste bin makes the task of waste disposal easier

* All round extractor, able to cope with all but the largest machines.

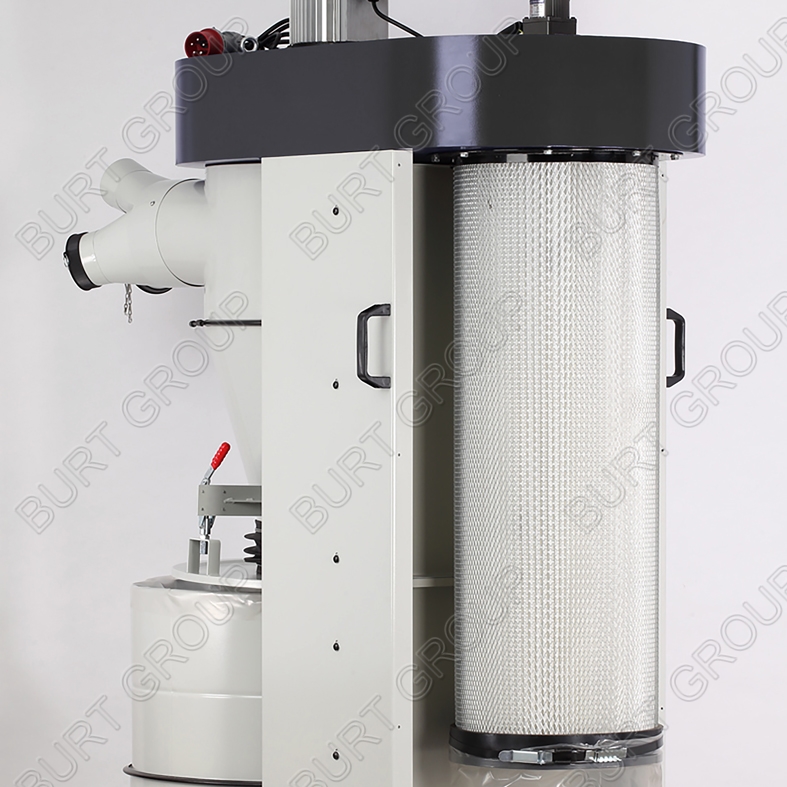

* Supplied with 1micron polyester cartridge filter, plastic collection bag and steel impeller.

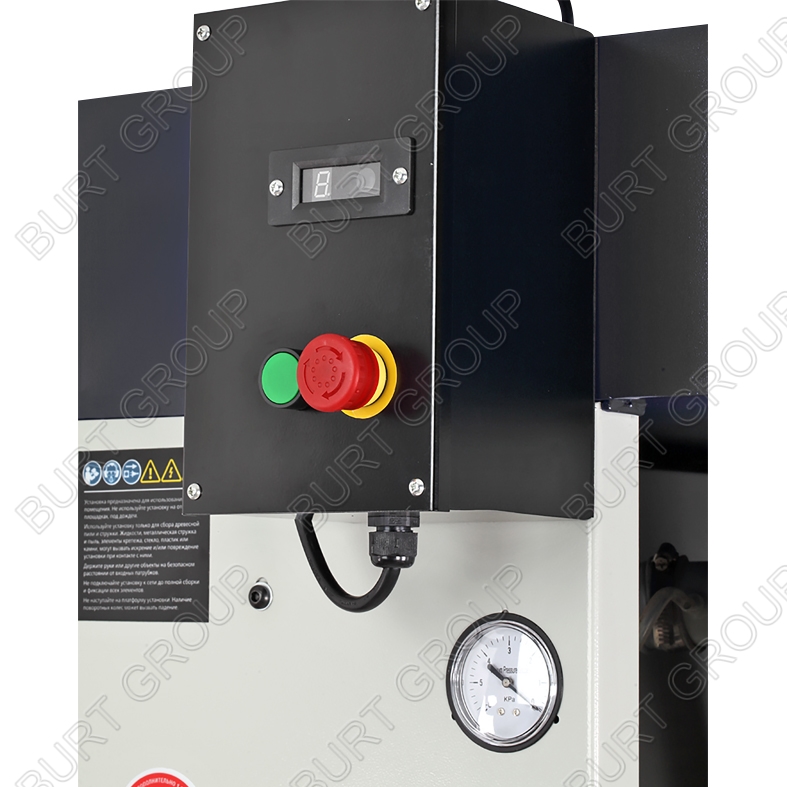

* Digital screen on control box shows the working way that the machine could be settled to stop at 2/4/6/8 hours or “L” for long time working

* 2-pieces seperated packaging or naked packaging but fully assembled are the 2 packagings we supply as standard

* Fully assembled and packed in 1 plywood case is optional


Description Video Documents

This efficient cyclone extractor has a two stage airflow system with higher airflow, removing around 99% of the waste from the airstream.

The vast majority of the waste is collected in the drum, with the cartridge filter trapping the very fine dusts.


01) Motor Power: 3000W

02) Fan diameter:402mm

03) Inlet diameter:200mm

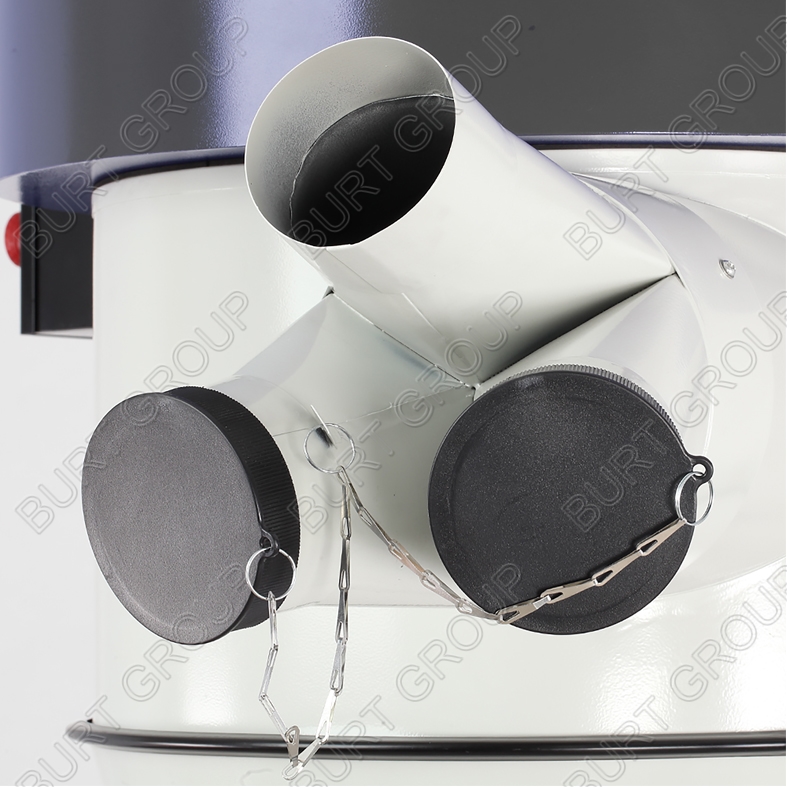

04) Number of intake holes:3x100mm

05) Air speed:2850m3/h

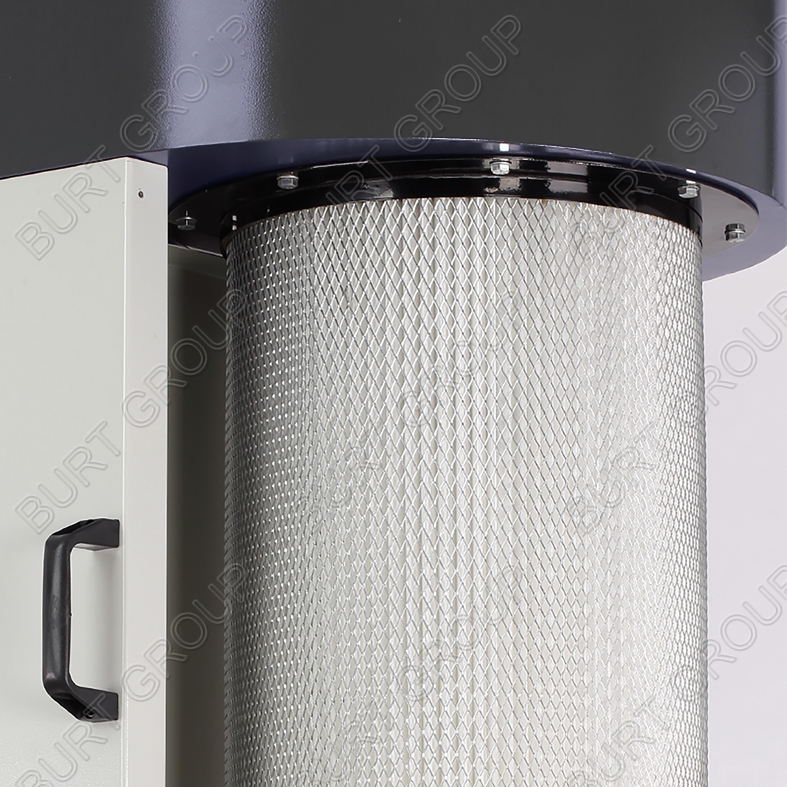

07) Cartridge Filteration size:φ370 diaX1045mm height

08) Cartridge Filteration rate:99% at 1 micro

09) Collection drum size:620mm diax815mm height

10) Collection drum volume:0.24m3

11) Collection bag size:621x960mm+370x750mm

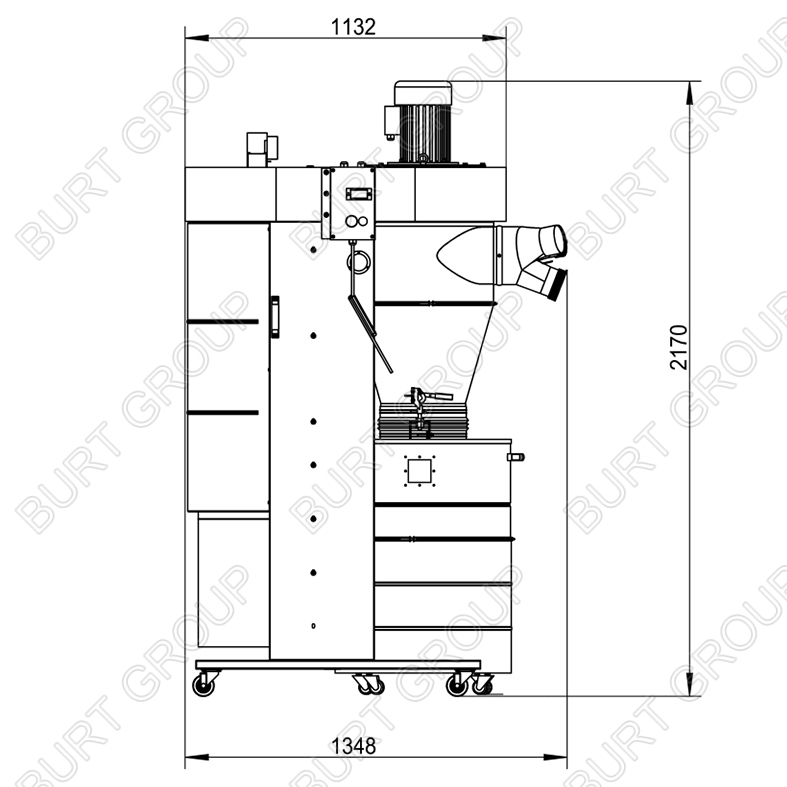

12) Over size:1343x900x2170mm

13) Packing size(mm):1350×745×1150/1590×500×510

14) N/G weight:139/176 kgs; 39/43 kgs

15) 20'Container:10units


Spare accessories:
Spare Cartridge filter: FM400-10

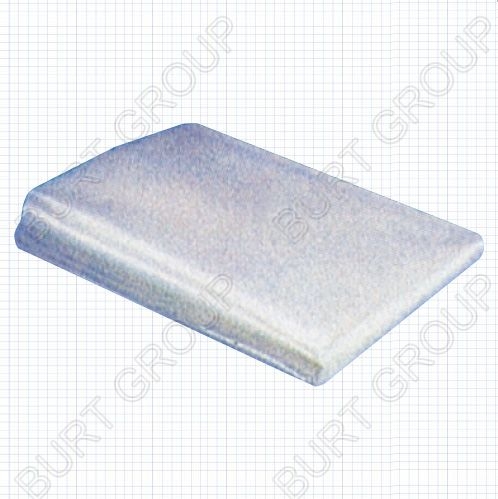

Spare Plastic bag for Cartridge filter: DCA-2-P750
Spare Plastic bag for Collection drum: DCA-2-P960

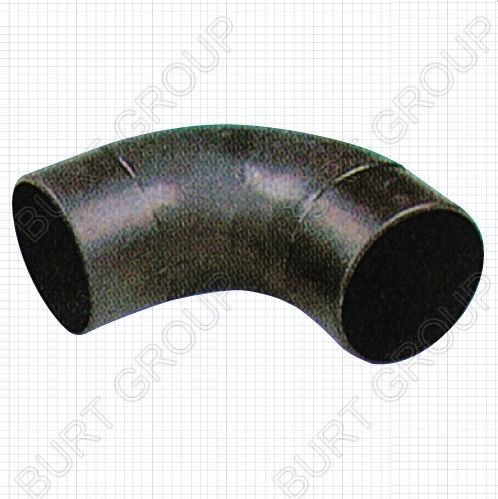

More Accessories
