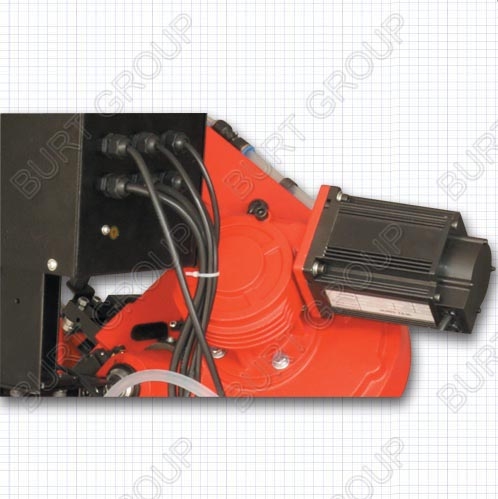

* Brushless DC motor with PCB for variable speed control:
* Equipped with carbinet stand and coolant system as standard fitting

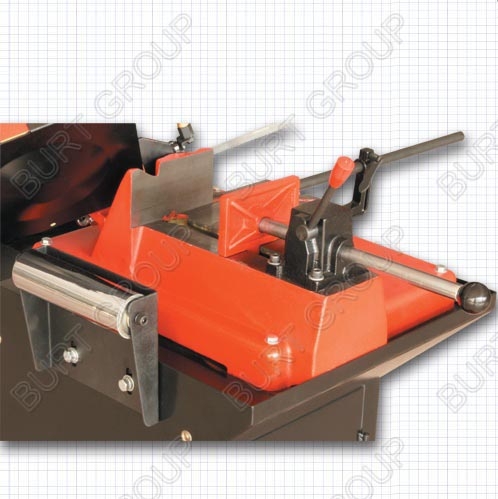

* Fitted with quick clamping vice and feeding roller
* Gear unit with hardened and grinded worm shaft and brone worm gear

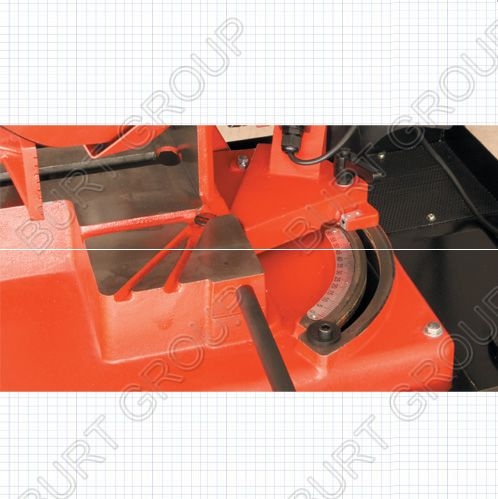

* For mitre cuts the sawframe can be tilted up to 60 degree
01) Motor (W): 500
02) Blade size (mm): 1735 x 13 x0.9
03) No of speed: Variable
04) Blade speed (m/min): 20-65
05) The bow swivel degree: 0-60 degrees
06) Cutting capacity at 90O: ● 150mm
▆ 150 x 160mm
07) Cutting capacity at 45O: ● 105mm
▆ 105 x 150mm
08) Cutting capacity at 60O: ● 60mm
09) N.W./G.W.(kgs): 58/61kgs;38/41kgs
10) Packing size (mm):930x470x480mm;740x540x330mm
11) Unit/20’container: 46pcs
