★ Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.

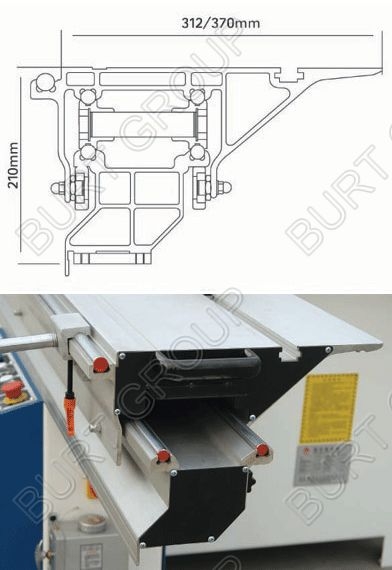

★ Movable table guide track is plating chromium steel balls structure, exact and durable.

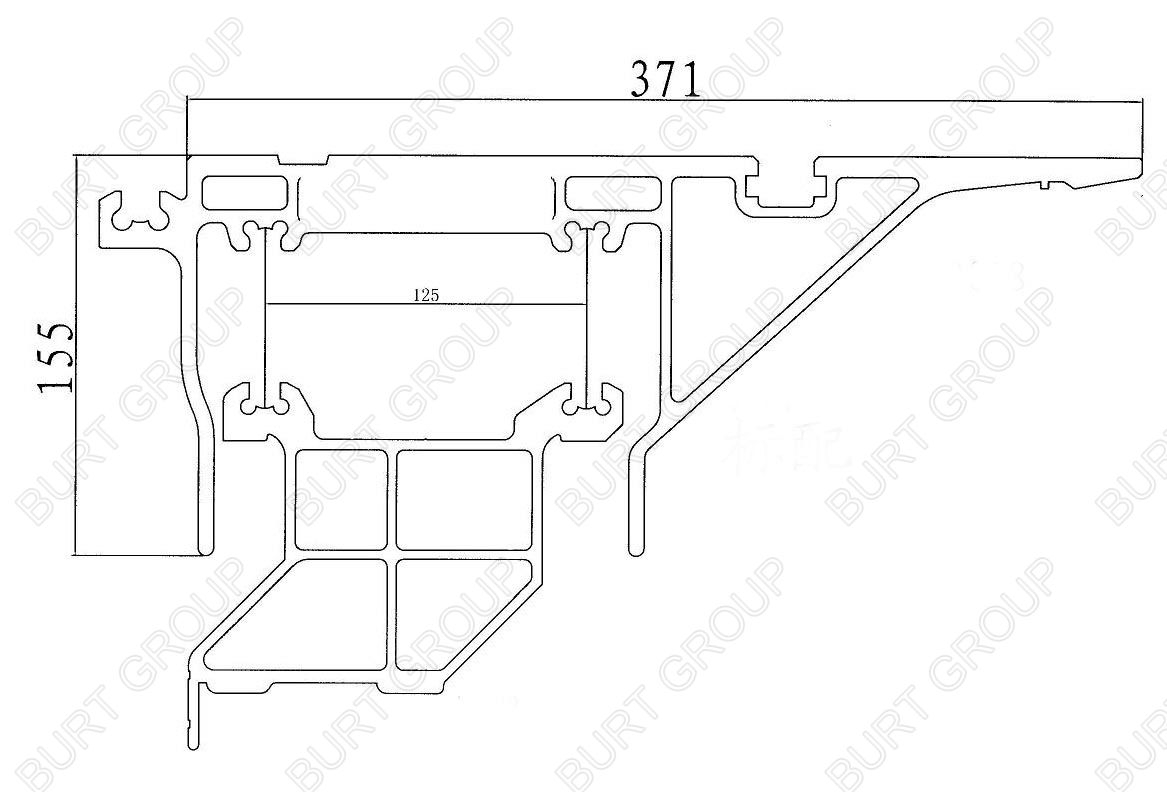

★ Made of high-strength extruded aluminum alloy, movable table is high in strength and won’t bend.
★ With oxidation treatment, movable table surface is beautiful and hardwearing.

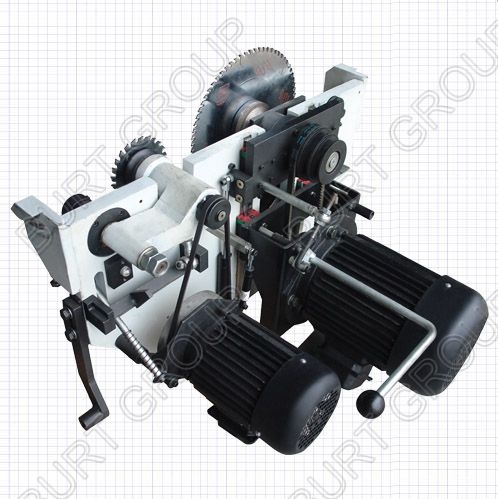

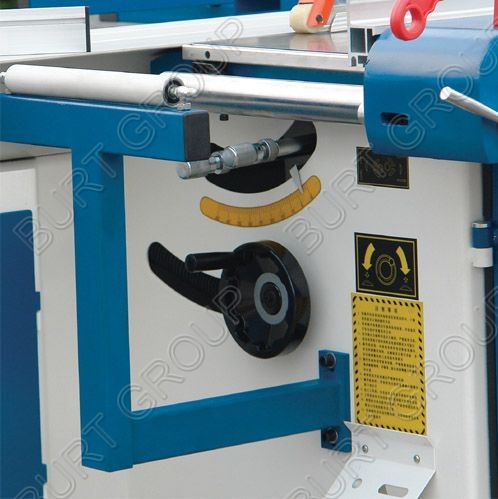

★ Manul titling and up/down for saw blade.

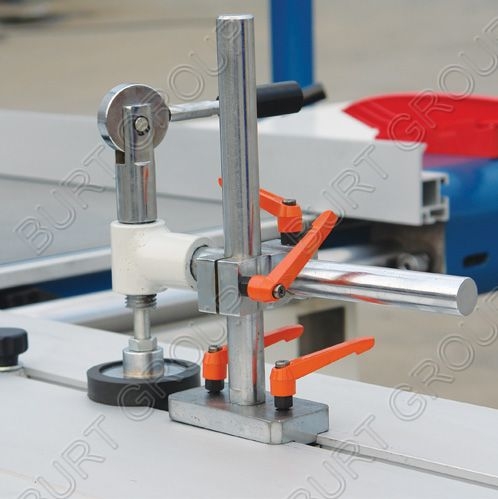

★ Fitted with hold down clamp (Optional).
01) Dimensions sliding table ：3200×370mm
02) Gross cut capacity：3200mm
03) Width of cut between saw blade and rip fence：1250mm
04) Saw blade φ：300mm(φ250-φ350)
05) Height of cut φ300mm：70mm
06) Height of cut with saw blade φ300mm at 45°：55mm
07) Speed of main saw blade ：4000/6000rpm
08) Spindle diameter：30mm
09) Tilling saw blade ：0-45°
10) Main motor：5.5kw
11) Scoring saw blade ：120mm
12) Speed of scoring saw blade：9000r/min
13) Spindle of scoring saw：20mm
14) Motor：0.75kw
15) Net weight：760kg
16) Gross weight (wooden packing case)：870kg
17) Overall dimensions ：3250×3150×900mm
