01)  Dimensions sliding table:3200×360mm
02)  Gross cut capacity:3200mm
03)  Width of cut between saw blade and rip fence:1250mm
04)  Saw blade φ:300mm（φ250-φ315）
05)  Height of cut φ 300mm:80mm
06)  Height of cut φ300mm at 45°:50mm
07)  Speed of main saw blade:4000/6000rpm
08)  Spindle diameter:30mm
09)  Tilling saw blade:0-45°
10)  Main motor:5.5kw
11)  Scoring saw blade:120mm
12)  Speed of scoring saw blade:8000r/min
13)  Spindle of scoring saw:20mm
14)  Motor:0.75kw
15)  Overall dimensions:3250x3390x900mm
16)  Packing size:2200x1150x1150mm; 3450x440x240mm
17)  N/G weight:580/670kgs;90/150kgs

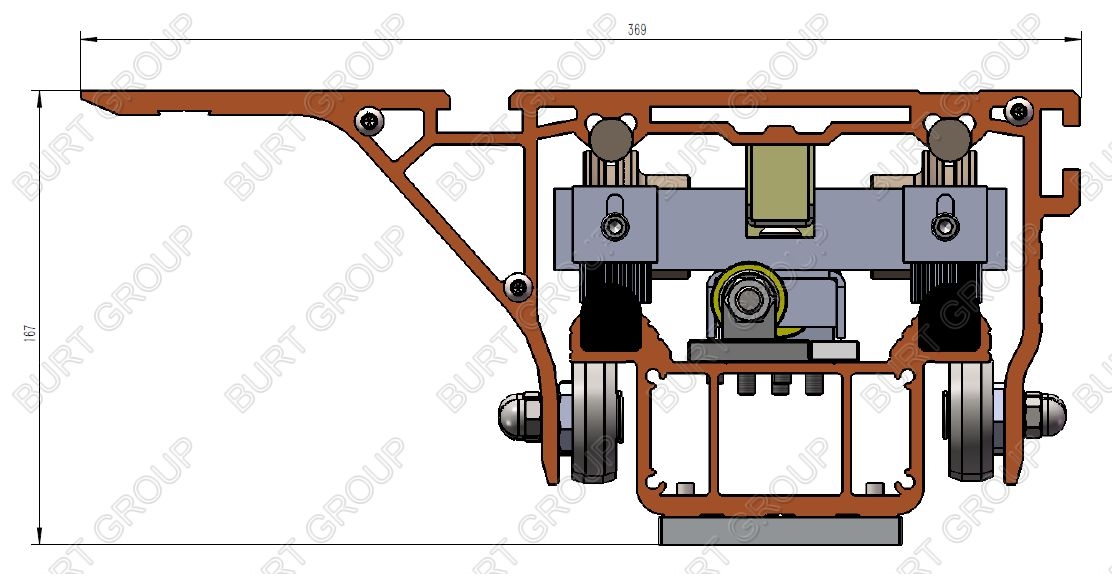

* YB style sliding table fitted as standard.
