| 01) Dimensions sliding table:1600×360mm |
| 02) Gross cut capacity:1600mm |
| 03) Width of cut between saw blade and rip fence:1250mm |
| 04) Saw blade φ:300mm（φ250-φ315） |
| 05) Height of cut φ 300mm:80mm |
| 06) Height of cut φ300mm at 45°:55mm |
| 07) Speed of main saw blade:4000/6000rpm |
| 08) Spindle diameter:30mm |
| 09) Tilling saw blade:0-45° |
| 10) Main motor:4kw |
| 11) Scoring saw blade:120mm |
| 12) Speed of scoring saw blade:8000r/min |
| 13) Spindle of scoring saw:20mm |
| 14) Motor:0.75kw |
| 15) Overall dimensions:1650x2450x900mm |
| 16) Packing size:1390x1150x1150mm; 1850x440x240mm |
| 17) N/G weight:420/490kgs;45/80kgs |

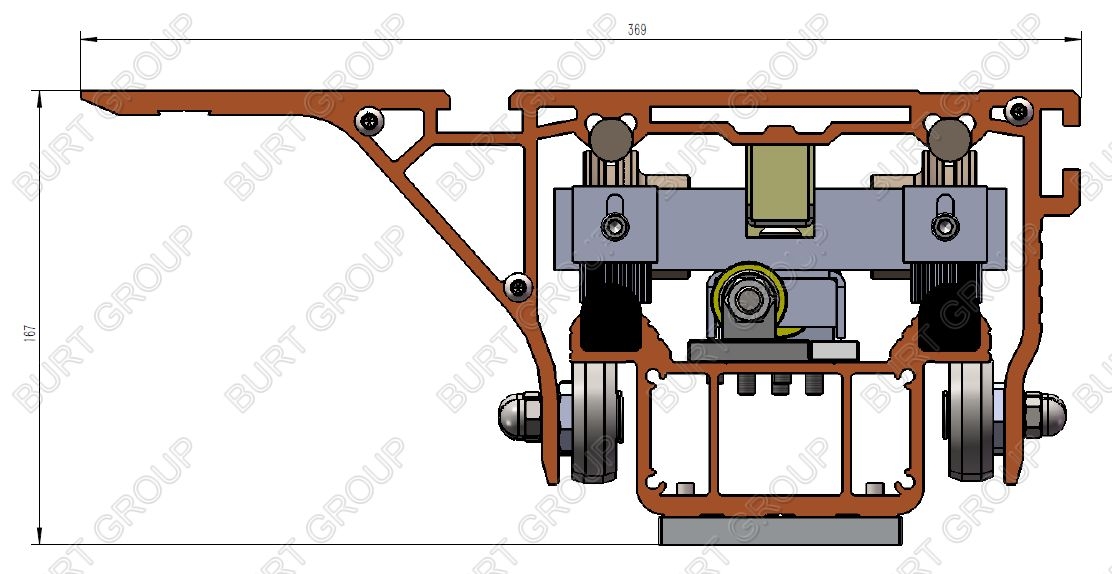

| * YB style sliding table fitted as standard. |
