MJ12-2000

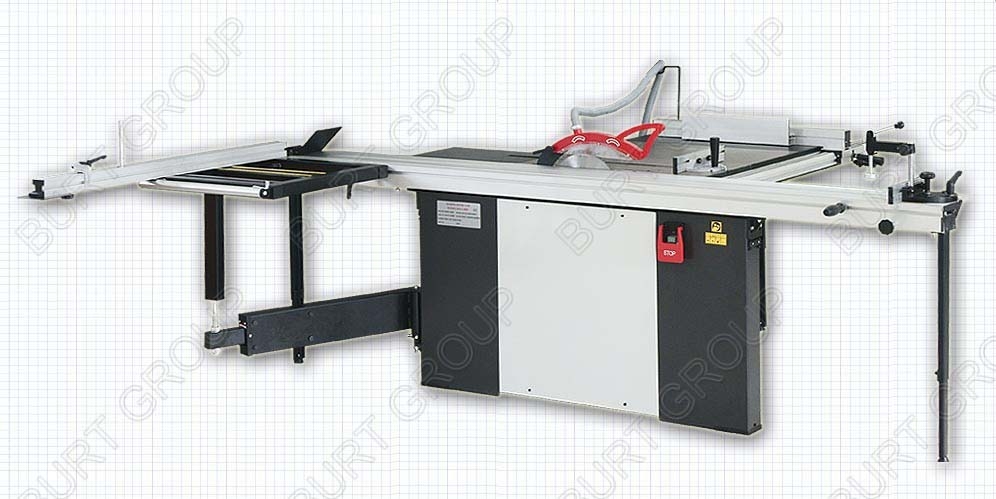

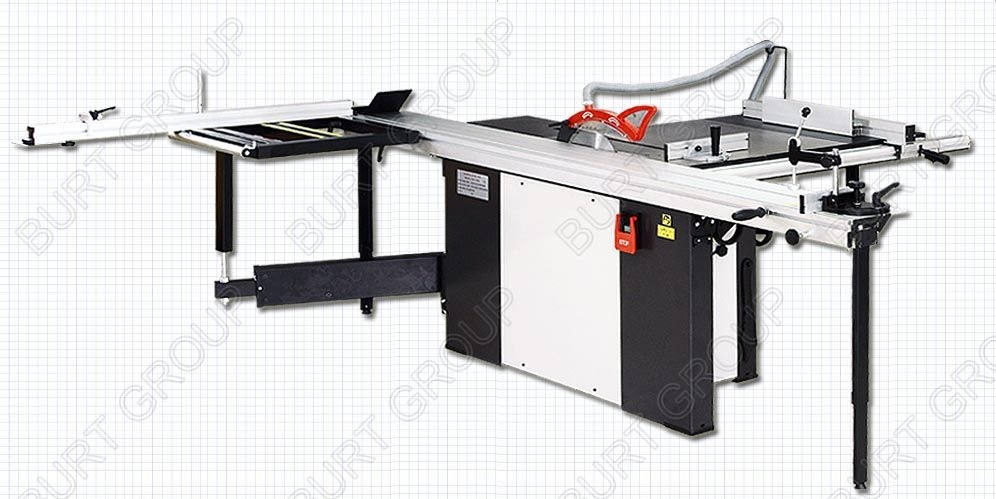

12" PANEL SAW WITH SCORING SAW FUNCTION AND 2000MM SLIDING TABLE
Main Features
Description Video Documents

01)   Motor Power: 2200W
02)   Major Table Size:385X800mm
03)   Extension Table (Cast Iron):440x800mm
04)   Extension Table (Steel plate):440x800mm
05)   Rear Extension Table:310X500mm
06)   Sliding panel Size:2000X270mm
07)   Cross Cut Table Size:680×580mm
08)   Cross Cut Fence:1200-2200mm
09)   Main Blade Size:315X30X3mm
10)   Main Blade Speed:4000rpm
11)   Scoring Blade Size:90X20X3mm
12)   Scoring Blade Speed:5800rpmm
13)   Max Cut Depth:100mm at 90 degree(315)
80mm at 45 degree(315)
14)   Max Distance-blade to rip fence:1220mm
15)   Max cross cut Length: 2000mm
16)   Max cross Cut Width:1350mm
17)   Packing Size:936X756X1040mm
2040x240x310MM
18)   Weight(N,W/G,W):260/310kg
19)   Noise Level(Unload):85dB(A)
20)   Units/20'GP:33pcs
